Target modules » U2-R-CPU
G&D DVICenter DP32 · 40

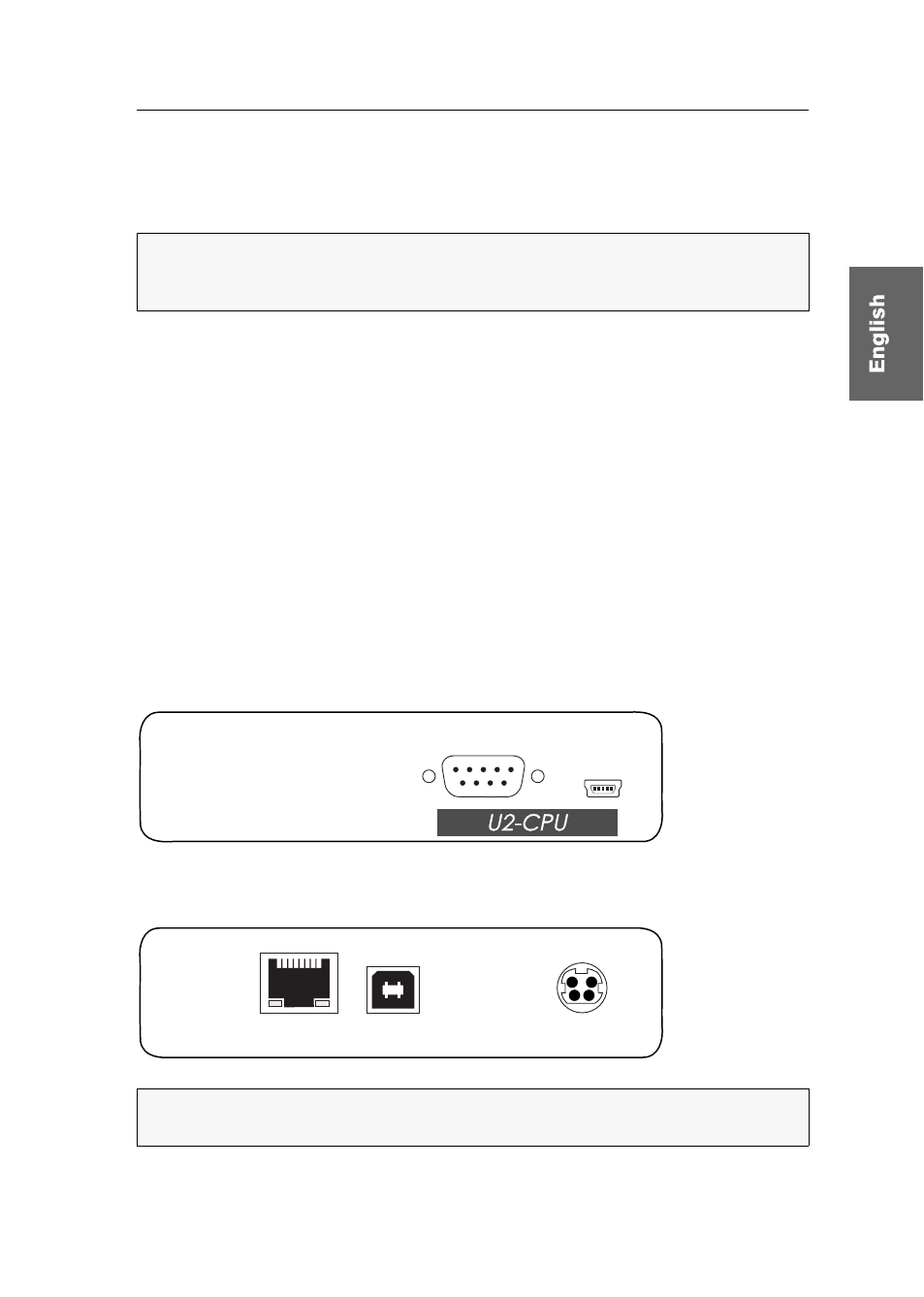

The »U2-R-CPU« target module
The U2-CPU target module receives USB and RS232 signals from the U2-CON user
module and transmits them to the computer.
Package contents
 1 × target module U2-R-CPU
 1 × USB device cable (USB-AM/BM-2)
 1 × RS232 cable (RS232-M/F-2)
 1 × power pack (12V/2A)
 1 × power cable
Required accessory
One category 5e (or better) twisted pair cable to connect the target module to the
central module.
Installation
Connecting the target computer
RS232: Use the RS232-M/F-2 cable to connect the computer’s 9-pin serial computer
interface to this interface.
NOTE: The U2-CPU target module can be connected only to the USB/RS232 Main
Channel of a stacking matrix switch.
Information about the Stacking mode is given on page 25.
IMPORTANT: For each central module you can connect only one Transmission
interface of the target module.
