U2-R-CON « User module
53 · G&D DVICenter DP32
The »U2-R-CON« user module
The U2-R-CON user module transmits USB and RS232 signals from the console to the
U2-R-CPU target module.
Package contents
1 × U2-R-CON user module
1 × power pack (12V/2A)
1 × power cable
Required accessory
One category 5e (or better) twisted pair cable to connect the target module to the
central module.
Installation

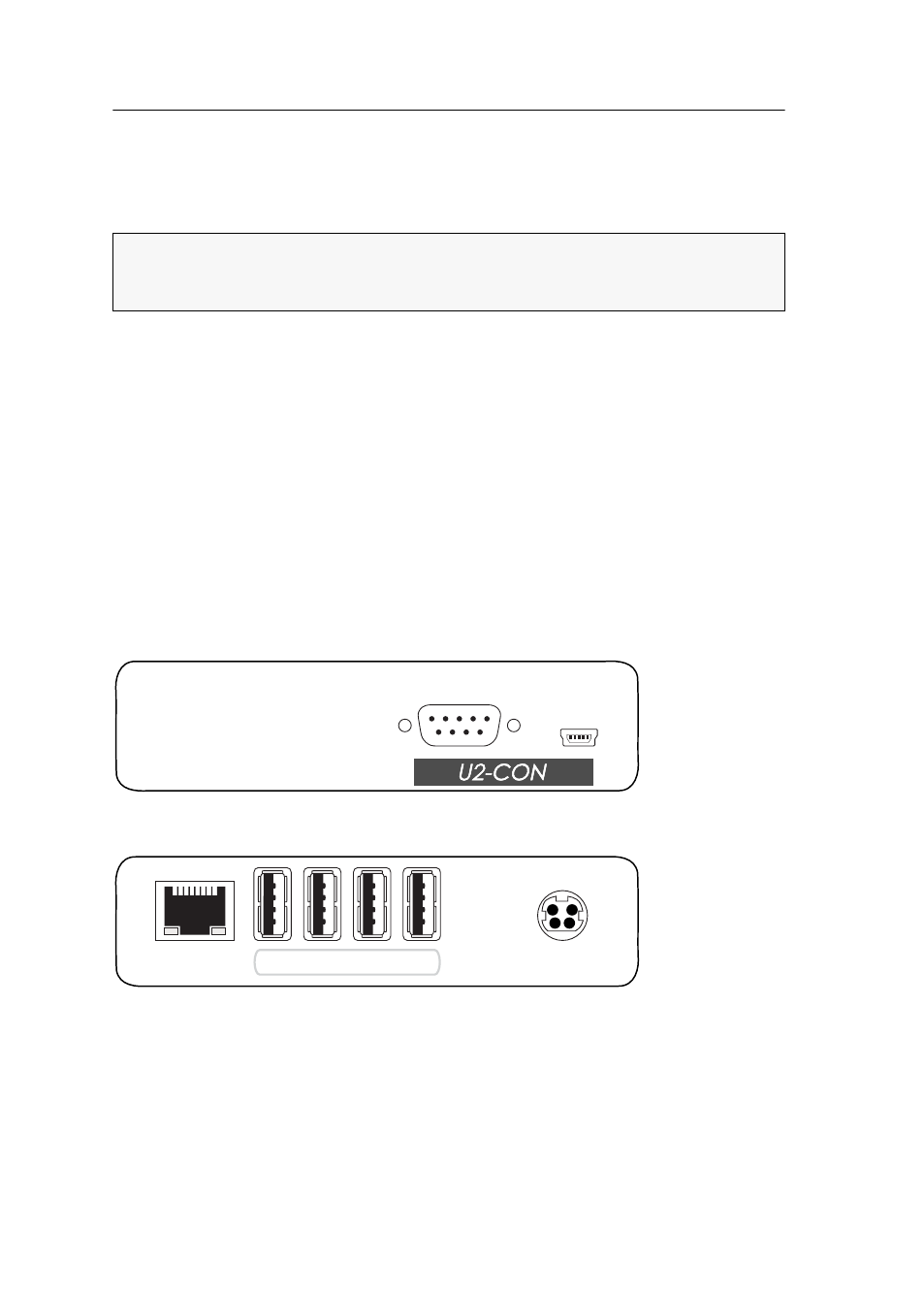

Connecting the console devices
RS232:
Connect the serial end device to this interface.
Trans.:
Use a category 5e (or better) twisted pair cable to connect this interface to the
Dynamic Port of the USB/RS232 Main Channel that is assigned to the console.
NOTE:
The U2-CPU target module can be connected only to the USB/RS232 Main
Channel of a stacking matrix switch.
Information about the Stacking mode is given on page 21.
