3.5 Configuration DP-Profibus encoder to S7-CPU 315-2 DP
version STEP7 V5.X
Step 1: Add ifm GSD file to hardware catalog
•
copy file ifmencon.bmp into directory Step7\S7Data\nsbmp
Step 2: Select project, Simatic 300-Station
•
open STEP7 Manager
•
File -> New -> select Project
•
folder „Project“ -> Insert new Station -> select Simatic 300-Station
Step 3: Configure hardware
•
update hardware catalog
•

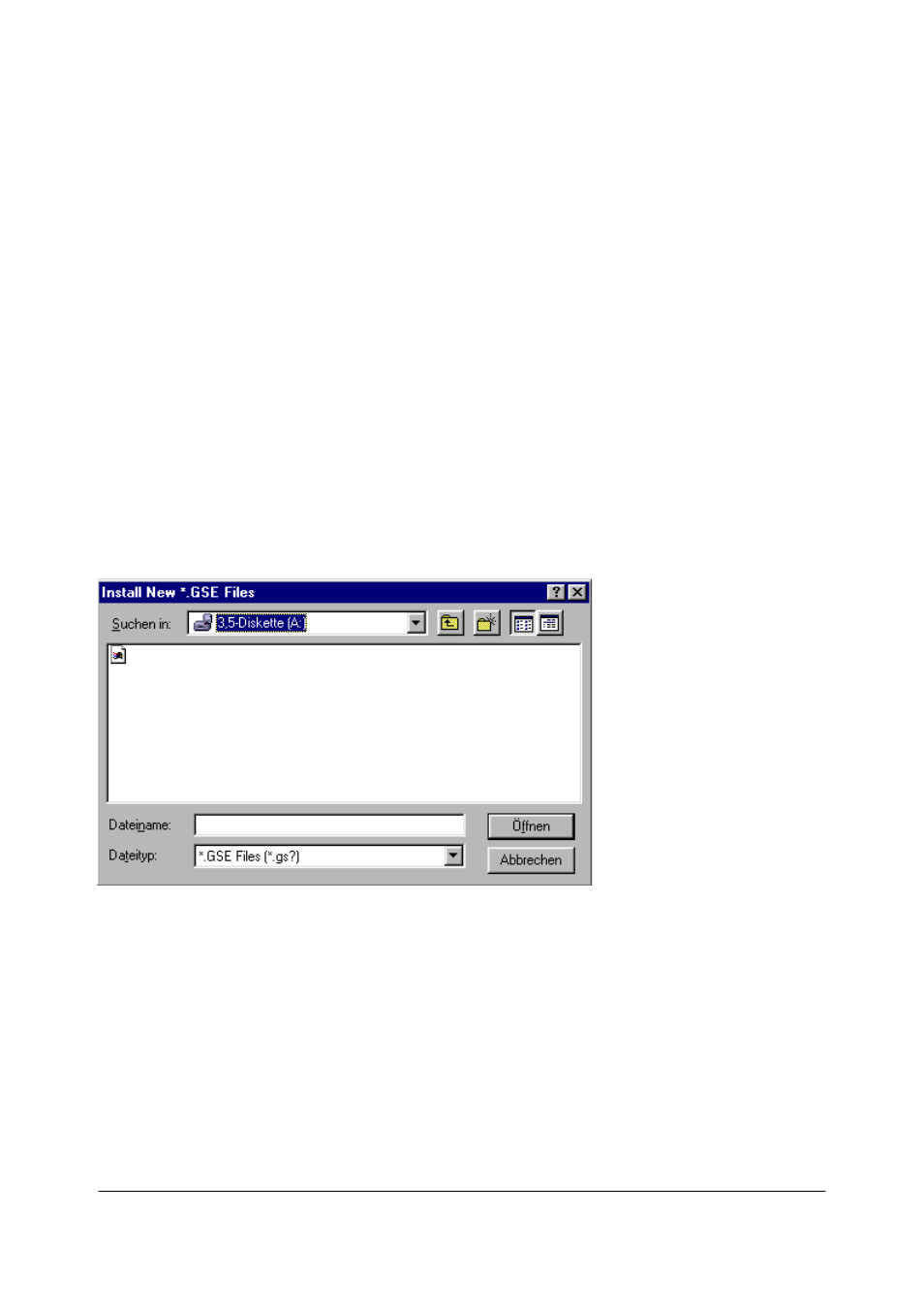

select Options -> Install New GSE files
•
select Options -> Update catalog
ifma401.gsd
