Advanced Contact Technology
www.multi-contact.com 11 / 16
L
2
R
5
39
=
=
L
1
Ø 4,2
L1 = L + 22mm
L2 = L + 33mm
21
C
om
bi
Ta
c
M
C
C
om
biT
ac
M
C
22
*
*
*
*
*

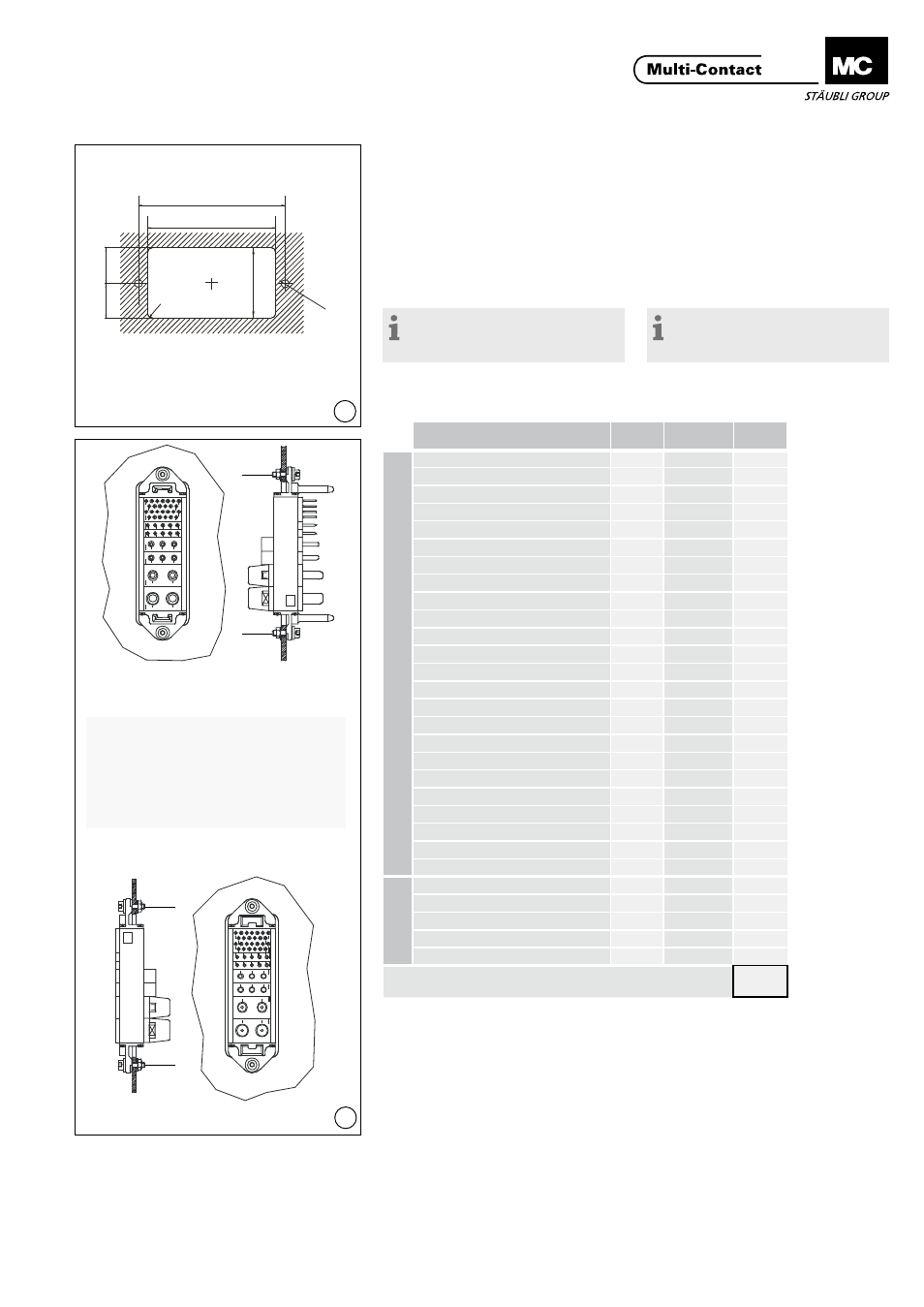

Befestigung der Steckverbin-
der auf Platten Fixing the connectors on
supports
(ill. 21)
Die Ausschnitt- und Bohrungsdurch-
messermasse sind so ausgelegt, dass
die Steckverbinderelemente je 2mm
Positionsverschiebungen in x- und
y-Richtung aufnehmen können�
(ill. 21)
The recess and borehole diameters
are such that the connecting elements
can absorb positioning errors of 2mm
in the x and y directions�
Hinweis:
Mindestlänge L = 18mm. Im Be-
darfsfall mit Distanzstücken auffüllen.
Note:
Minimal length L = 18mm. If
required fill up with spacers.
Berechnung des Masses L Calculation of dimension L
(ill. 22)
Befestigungsmaterial: 1)
• 2 Innen-6kt�-Schrauben M4x16
(DIN 912), (Schraubenlänge für
Plattendicke 2-5mm)
• 2 6kt� Muttern M4 (DIN 934)
• 2 U-Scheiben M4 (DIN 125A)
(ill. 22)
Securing material: 1)
• 2 screws M4x16 (DIN 912),
(Screw length for panel thickness
2-5mm)
• 2 nuts M4 (DIN 934)
• 2 washers M4 (DIN 125A)
1) gehört nicht zum Lieferumfang 1) not included
Masstoleranzen: ± 0,1mm
Dimensional tolerances: ± 0,1mm
Typ
Type
Anzahl
Number
Breite
Width
K
ontaktträger
Contact carrier
s
CT-E8-2 x 18mm =
CT-E8/6-1 x 16mm =
CT-E8/6-PE x 16mm =
CT-E6-2 x 16mm =
CT-E3-3 x 10mm =
CT-E3/PCB x 10mm =
CT-E3-2+PE x 10mm =
CT-E1,5-5 x 6mm =
CT-E1-26/B, CT-E1-26/S x 18mm =
CT-E1-15/B, CT-E1-15/S x 20mm =
CT-E1-6 x 4mm =
CT-E-3POF/B, CT-E-3POF/S x 6mm =
CT-E-2TH+PE/B, CT-E-2TH+PE/S x 6mm =
CT-E8-4/B, CT-E8-4/S x 30mm =
CT-E-UCT06-1 x 18mm =
CT-E-UCT06-2 x 28mm =
CT-E-UCT06-4 x 42mm =
CT-E-UCT08-1 x 22mm =
CT-E-UCT08-2 x 42mm =
CT-E12-1/... x 30mm =
CT-E3-1/HV-... x 18mm =
CT-E3-2/HV-... x 18mm =
CT-E-4GOF x 6mm =
CT-E0,6-20/... x 5,05mm =
Distanzstück
e
Spacer
s
CT-DIP1 x 1mm =
CT-DIP2 x 2mm =
CT-DIP3 x 3mm =
CT-DIP4 x 4mm =
CT-DIP4/2 x 4mm =
Summe der Breite (min. 18mm)
Sum of the widths (min. 18mm) L =
Tab. 3
Anzugsdrehmoment 2 Nm
Tightening torque 2 Nm
Empfehlung:
Sichern mit anaerobischem mittelfestem
Schraubensicherungs-Klebstoff�
Recommandation:
Secure with medium strength anaerobic
screw retention glue�
