Installation « Matrix switch
4 · G&D CompactCenter X2
Installation
The installation is can be carried out by simply plugging cables.
Required accessories
 One or two category 5 (or better) twisted pair cables to connect the matrix switch
to one or two local networks.
Installing and connecting the target modules
Connecting the target computers to the target modules
 At first, follow the descriptions on the next pages to connect the target computers
to the target modules:
Connecting the target modules to the matrix switch
 Use a category 5 (or better) twisted pair cabling to connect the Transmission inter-
faces of the individual target modules to a CPU interface of the matrix switch.
IMPORTANT: When applying the recommended K-C7/LD-x cable, the distance
between a target module and the matrix switch can be up to 15 metres with auto-
matic video tuning or up to 30 metres with manual adjustments.
When applying a different cable, the distance depends on the quality of the cable!
CATpro2-PS2 ................................................................................... page 13
CATpro2-USB.................................................................................. page 15
CATpro2-Audio-PS2 ........................................................................ page 18
CATpro2-Audio-USB ....................................................................... page 21
CATpro2-DVI-Audio........................................................................ page 23
CATpro2-VT100............................................................................... page 32

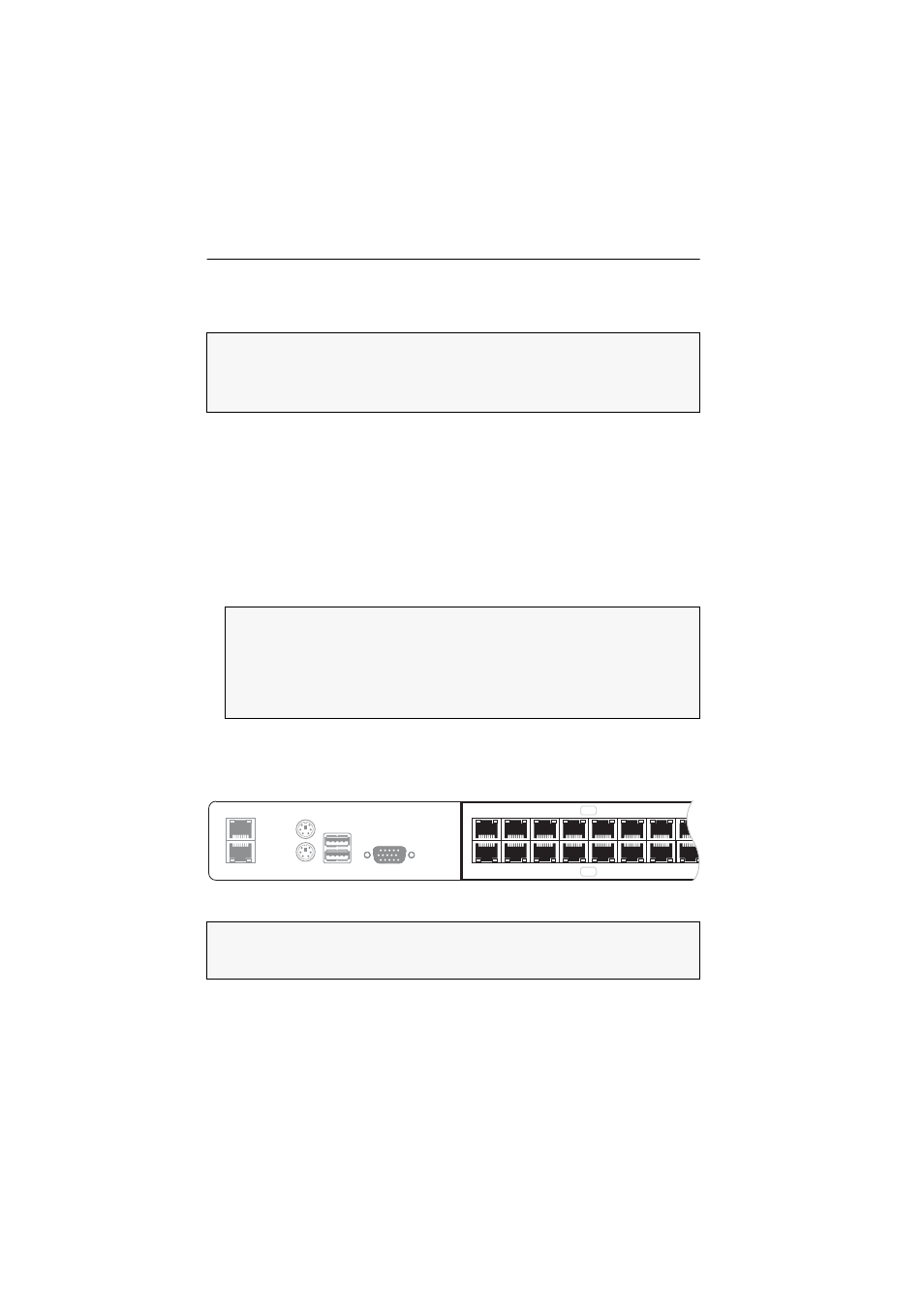

Figure 1: »CPU« interfaces at the matrix switch
IMPORTANT: The CATpro2-DVI-Audio target module provides two Trans. interfaces.
Only connect one of the target module‘s Trans. interfaces (see page 25) to this
matrix switch!
USB K/M Keyb.
Mouse
Network A
Network B
Monitor
9 10 11 12 13 14 15 16
1 2 3 4 5 6 7 8
CPU
CPU
