Target modules
»
CATpro2-Audio-USB
G&D CompactCenter X2 · 21
»CATpro2-Audio-USB« target module
The CATpro2-Audio-USB target module enables you to integrate a computer with
analog video output into a CompactCenter system.
Scope of delivery
1 × CATpro2-Audio-USB target module
Installation
Required accessory
One category 5 (or better) twisted pair cable to connect the CATpro2-Audio-USB
target module to a CompactCenter system.
Connecting the target computer
Monitor:
Insert the 15-pin D-Sub HD plug into the VGA port of the target computer.
USB:
Insert the USB-A plug into an available USB port of the target computer.
Speaker:
Insert the jack plug into the Speaker interface of the target computer.
Connection to matrix switch
Transmission:
Use a category 5 (or better) twisted pair cabbling to connect this inter-
face to a CPU port of the CompactCenter system.

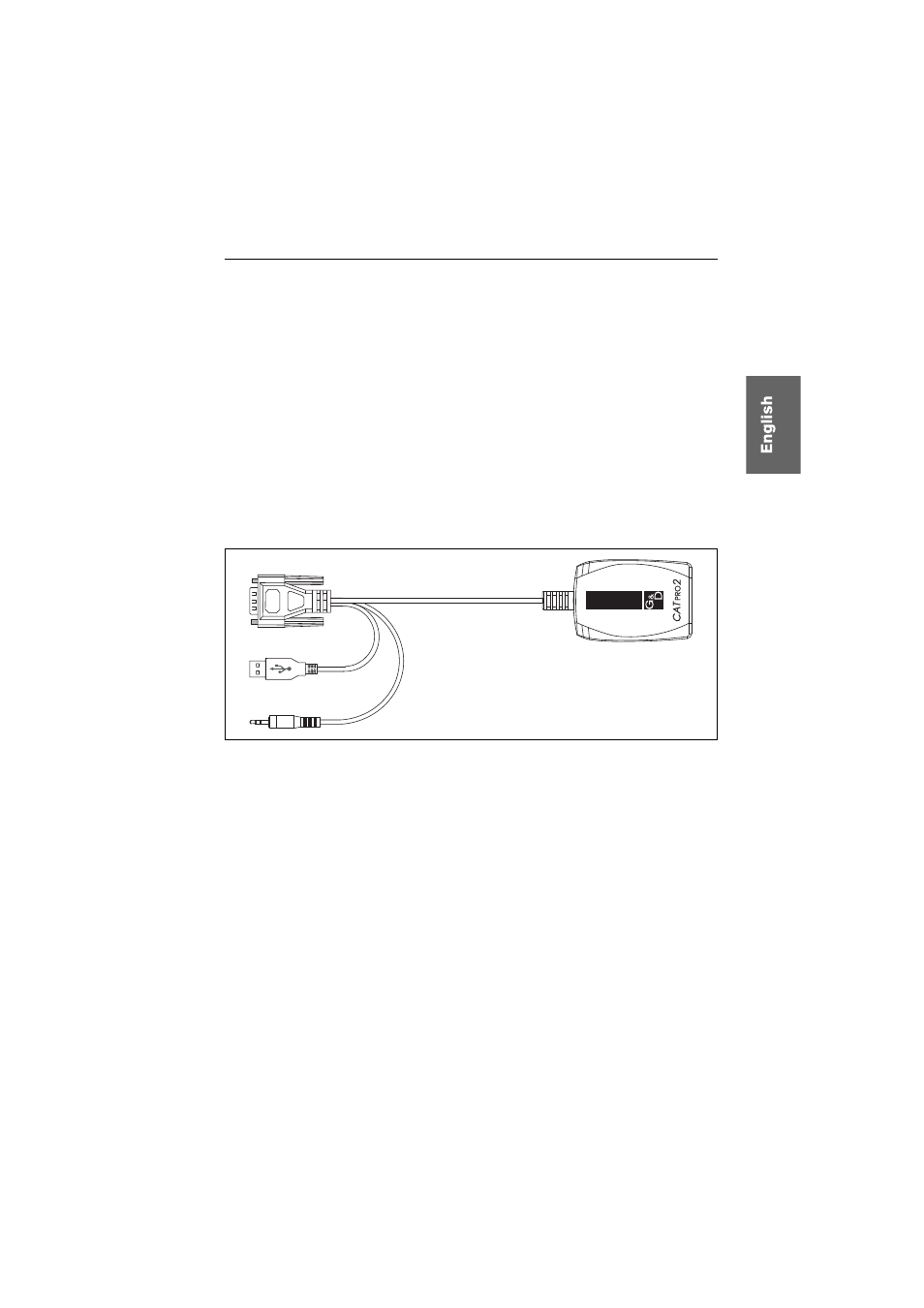

Figure 4: Legend of the
CATpro2-Audio-USB target module
