CATpro2-USB « Target modules
16 · G&D CompactCenter X2
Installation
The following paragraphs explain the required steps to install the target module.
Required accessory
 One category 5 (or better) twisted pair cable to connect the CATpro2-USB target
module to a CompactCenter system.
Connecting the target computer
 Monitor: Insert the 15-pin D-Sub HD plug into the VGA port of the target computer.
 USB: Insert the USB-A plug into an available USB port of the target computer.
Connection to matrix switch
 Transmission: Use a category 5 (or better) twisted pair cabbling to connect this
interface to a CPU port of the CompactCenter system (see figure on page 4).

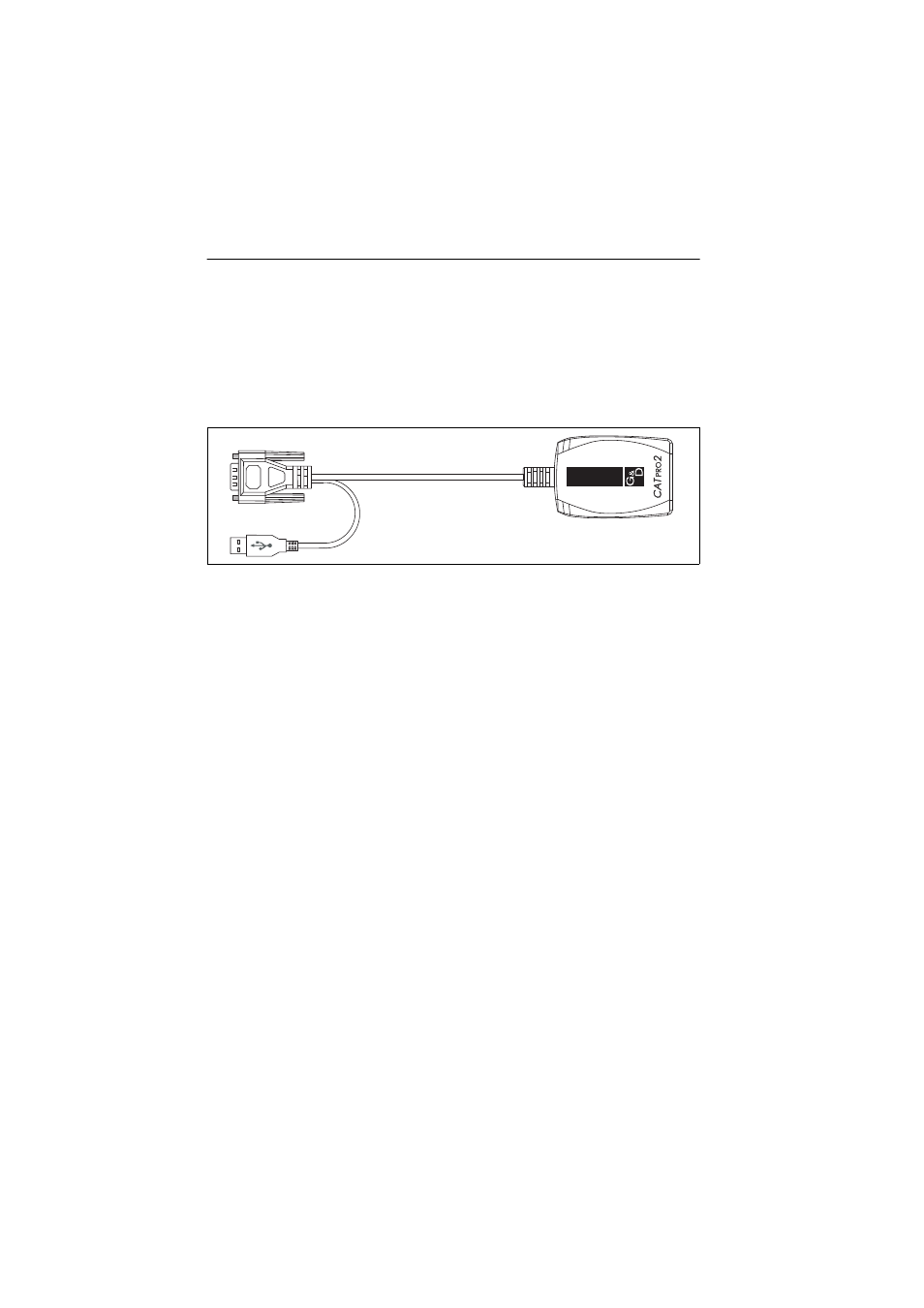

Figure 2: Legend of CATpro2-USB target module



