Matrix switch » Status Displays
G&D CompactCenter X2 · 9
Status Displays
LEDs at the front panel
The LEDs at the front panel of the matrix switch enable you to control the system’s
operating status at all times:

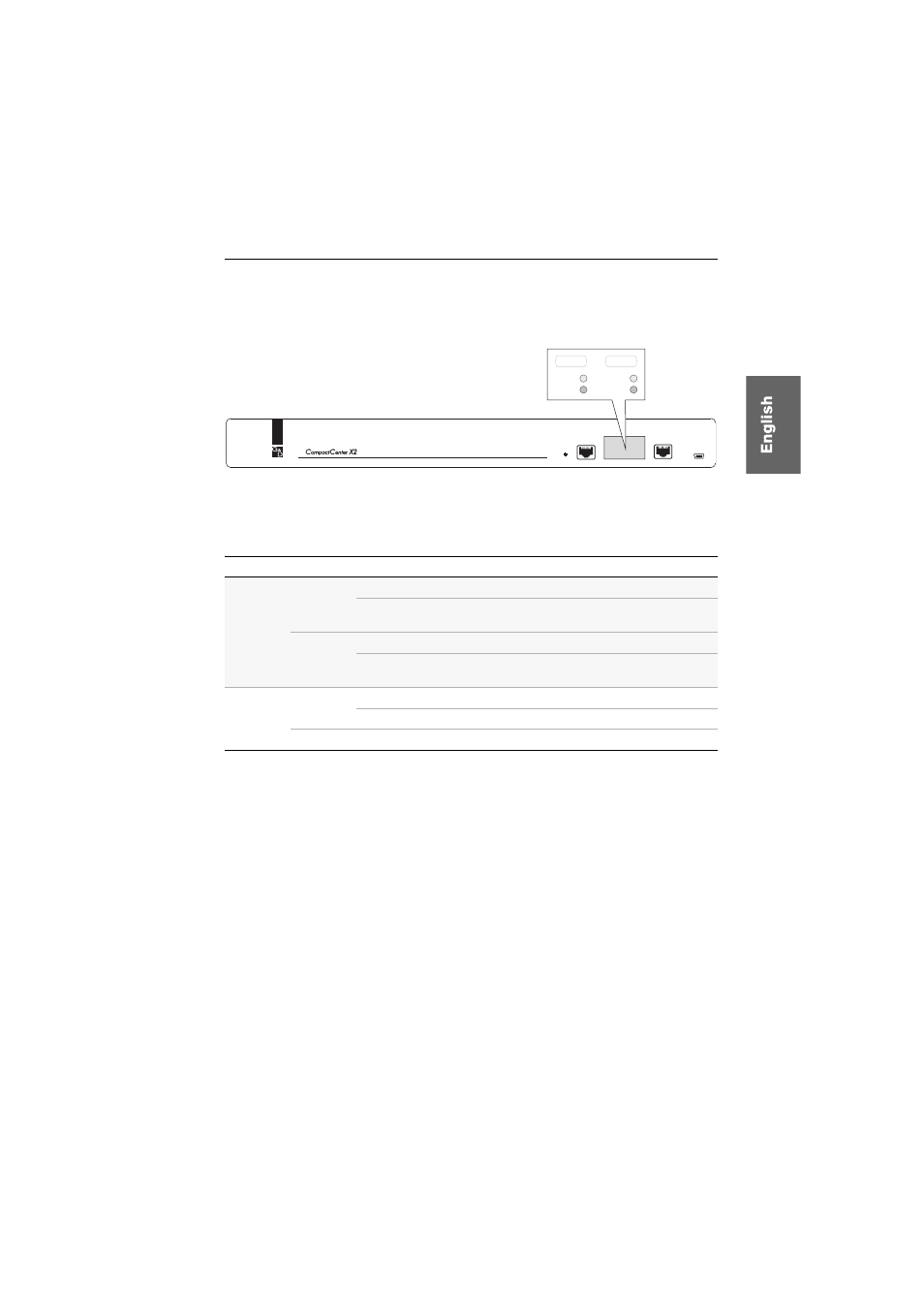

Figure 3: Status displays at the front panel of the matrix switch
Section LED Status Meaning
Power Red. on The power pack is turned on and supplies the required voltage.
off The power pack is turned off or the connection to the mains
could not be established.
Main on The power pack is turned on and supplies the required voltage.
off The power pack is turned off or the connection to the mains
could not be established.
Status Ready blinking The network subsystem works perfectly.
off No network function is being supported.
Switch blinking Matrix switch ready for operation.
Table 1: Status displays at the front panel of the matrix switch
