Target modules » CATpro2-DVI-Audio
G&D CompactCenter X2 · 25
Interfaces on the back panel
Trans. 1: Use a category 5 (or better) twisted pair cable to connect this interface to a
CPU port of a KVM matrix switch.
Trans. 2: Use a category 5 (or better) twisted pair cable to connect this interface to a
CPU port of another KVM matrix switch.
DDC: This switch enables the selection of the desired DDC information. The chapter
Selecting DDC information on page 27 provides further information regarding this
topic.
Power Loop: If you want to supply another target module with the power of the
optional AC adapter, connect a Power Loop cable to this interface
Detailed information regarding the Power Loop power supply can be found on page 30.
Power In: If desired, connect the optional AC adapter or the Power Loop cable (which is
connected to another target module) to this interface.

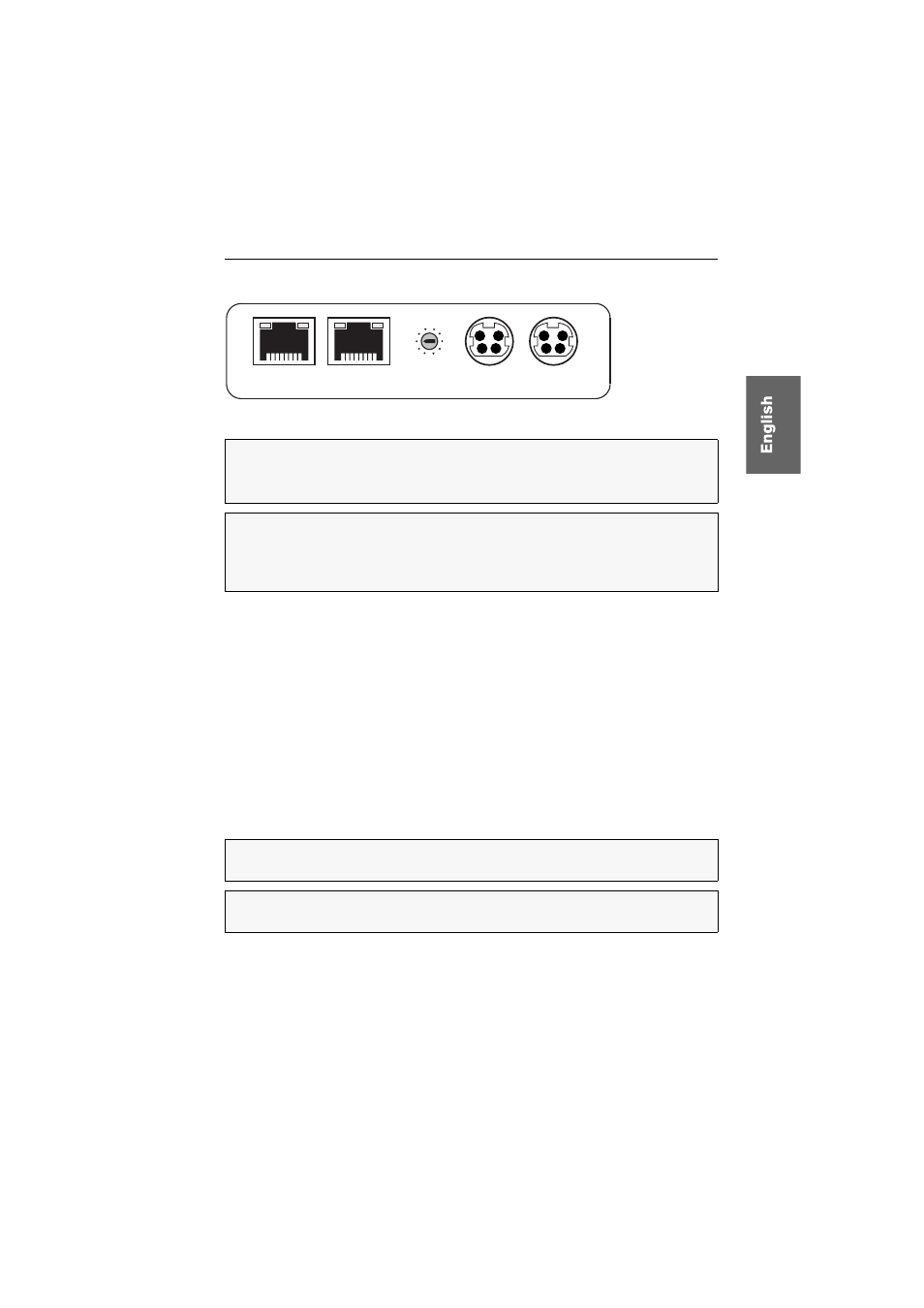

Figure 6: Back view of the CATpro2-DVI-Audio target module
NOTE: The target module provides two Trans. interfaces, which enable the user to
integrate this target module into two different KVM matrix switches.
Connect only one Trans. interface per KVM matrix switch.
IMPORTANT: The user is enabled to connect several legs of a twisted pair cabling
by using patch fields and outlets.
The integration of active components such as network switches, hubs or repeaters,
however, is not possible.
NOTE: When applying the AC adapter or a Power Loop cable, the two USB inter-
faces are not required to supply the target module with power.
ADVICE: Use the USB Pwr and USB CPU interfaces to provide the target module
with a redundant power supply.
Def.
1
5
3
7
2
4
6
Learn
User
DDC Power Loop Trans. 1 Power In Trans. 2
