CATpro2-Audio-PS/2
«
Target modules
18 · G&D CompactCenter X2
»CATpro2-Audio-PS/2« target module
The CATpro2-Audio-PS/2 target module enables you to integrate a computer with
analog video output into a CompactCenter system.
Scope of delivery
1 × CATpro2-Audio-PS/2 target module
Installation
Required accessory
One category 5 (or better) twisted pair cable to connect the CATpro2-Audio-PS/2
target module to a CompactCenter system.
Connecting the target computer
Monitor:
Insert the 15-pin D-Sub HD plug into the VGA interface of the target
computer.
PS/2 Keyboard:
Insert the PS/2 plug into the PS/2 keyboard interface of the target
computer.
PS/2 Mouse:
Insert the PS/2 plug into the PS/2 mouse interface of the target com-
puter.
Speaker:
Insert the jack plug into the Speaker interface of the target computer.

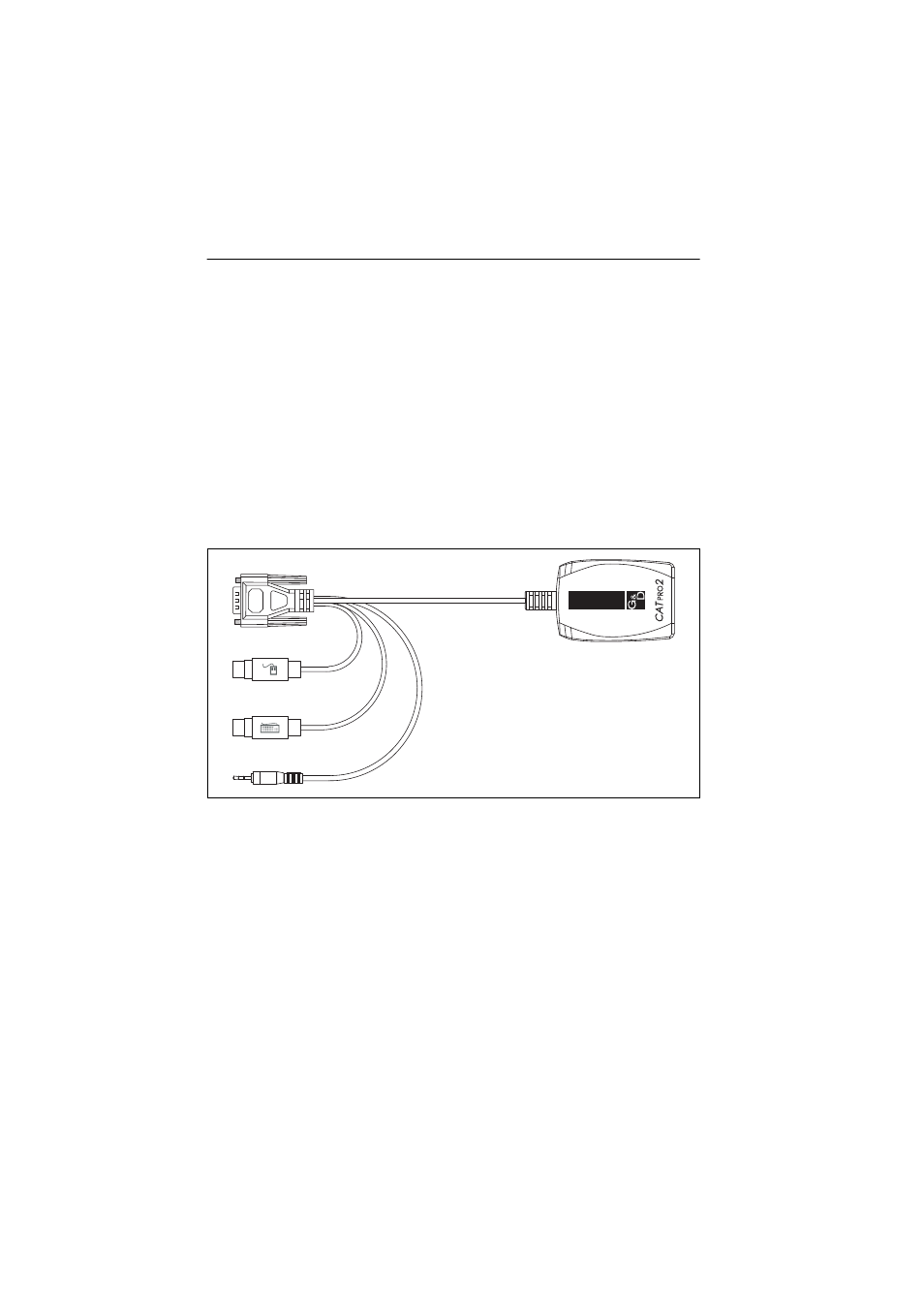

Figure 3: Legend of the
CATpro2-Audio-PS/2 target module
