Item R&R KOHLER Qty. Discounted
No. Part No. Part No. Description Req. Price Each

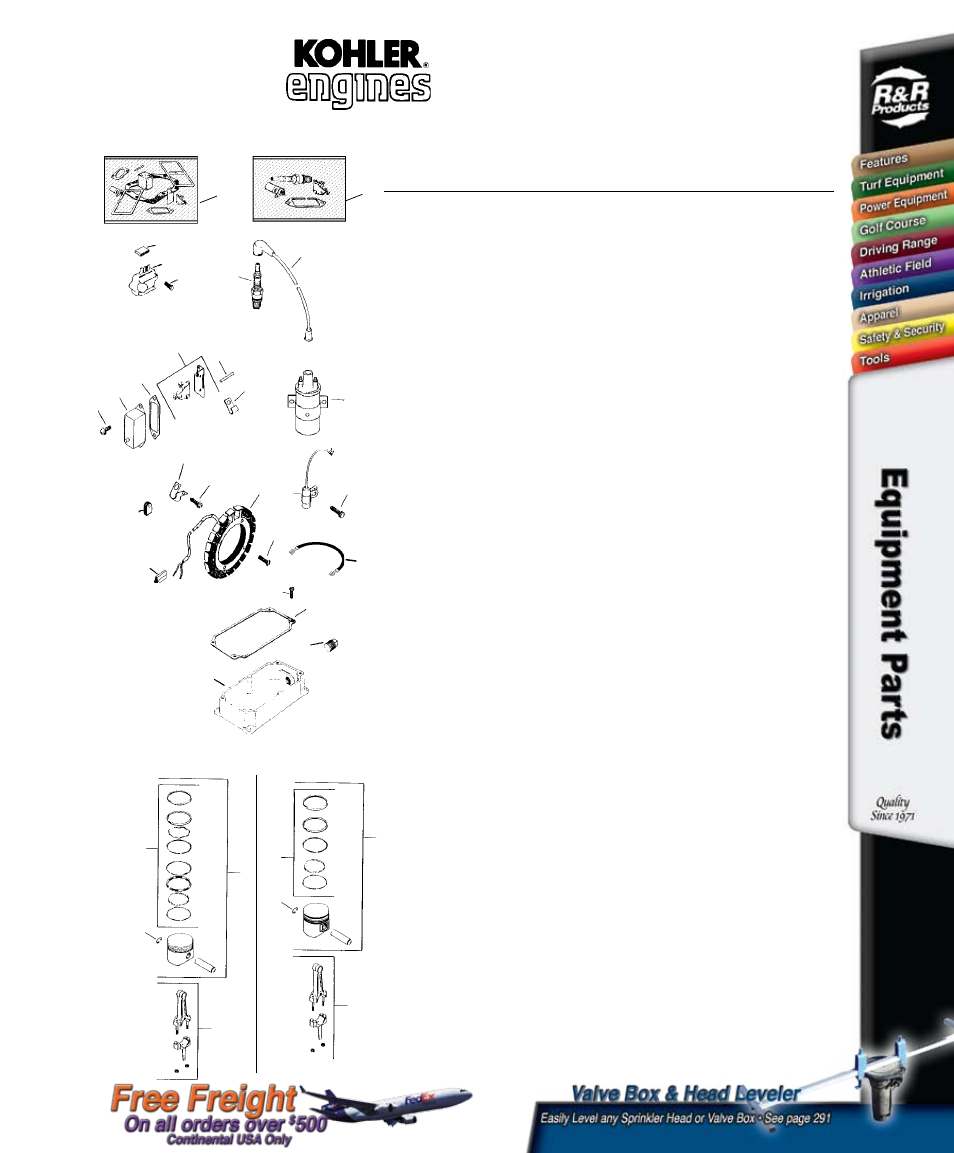

Ignition - Group 18
1 RK237878 237878 Kohler Kit, Stator (15 amp.) 1 76.10
2 RKX7781 X-778-1 Use RKX6751
2 RKX6751 X-675-1 Kohler Screw, R.H. 10-24 x 3/4 4 0.94
3 RKX7281 X-728-1 Kohler Clip 1 0.93
4 RKX6759 X-67-59 Kohler Screw, Sheet Metal 1 0.39
5 RK275303 275303 Kohler Clip 1 2.05
6 RK4741104 47 411 04 Kohler Rod, Breaker 1 8.20
7 RK4715003 47 150 03 Kohler Breaker Assembly 1 10.10
8 RK4775703 47 757 03 Kohler Tune Up Kit 1 22.40
9 RK4775705 47 757 05 Kohler Ignition Kit 1 17.15
10 RKX1311 X-131-1 Kohler Screw, F.H.M. 10-24 x 3/8 4 0.47
11 RK5204111 52 041 11 Kohler Gasket, Cover 1 1.00
12 RK232535 232535 Kohler Cover, Breaker 1 6.40
13 RK230722 230722 Kohler Condenser 1 5.00
14 RK231281 231281 Kohler Coil 1 29.95
15 RKX1322 X-132-2 Kohler Screw, H.C. Sems 1/4-20x3/4 2 0.99
16 RK4815502 48 155 02 Kohler Connector 1 4.35
17 RK235041S 235041-S Kohler Plug, Spark 1 4.55
18 RK238057 238057 Kohler Kit, High Tension Lead 1 20.70
19 RKX1324 X-132-4 Kohler Screw, H.C. Sems 1/4-20x1 2 0.99
20 RK236602 236602 Kohler Connector 1 3.30
21 RK4140305 41 403 05 Use RK2575503
21 RK2575503 25 755 03 Kohler Rectifier-Regulator 1 56.95
22 RK220297 220297 Kohler Grommet 1 2.05
23 RKA231533 A-231533 Kohler Lead, Black 1 6.20
(17"-14 Gauge - Insulated Barrel Eyelet - Uninsulated Barrel Open Side Terminals)
23 RK2551811 25 518 11 Kohler Lead, Black 1 5.90
(18"-14 Gauge - Insulated Barrel Eyelet - Uninsulated Push Tab on Terminals)
23 RK2551805 25 518 05 Kohler Lead, Black 1 2.10
(5" - 14Gauge - Uninsulated Push Tab on Terminals)
Oil Pan - Group 21
1 RKX3054 X-305-4 Kohler Plug, Magnetic Drain Hex. Hd. 3/8 1 7.60
2 RKX1593 X-159-3 Kohler Screw, H.C. 3/8-16 x 1 1/4 4 1.30
3 RK235057 235057 Kohler Gasket, Pan 1 3.50
4 RK235147 235147 Kohler Base, Oil Pan 1 126.40
Piston & Rod - Group 22
OLD STYLE PISTON DESIGN
1 RK4706709 47 067 09 Kohler Rod, Connecting (Std.) 1 45.10
1 RK4706710 47 067 10 Kohler Rod, Connecting (.010) 1 45.10
2 RK4787411 47 874 11 Kohler Piston Assy, Standard 1 131.90
2 RK4787412 47 874 12 Kohler Piston Assy, .003 1 111.55
2 RK4787413 47 874 13 Kohler Piston Assy, .010 1 131.90
2 RK4787414 47 874 14 Kohler Piston Assy, .020 1 131.90
2 RK4787415 47 874 15 Kohler Piston Assy, .030 1 131.90
3 RK4810805 48 108 05 Kohler Ring Set, Std. & .003 1 53.90
3 RK4810806 48 108 06 Kohler Ring Set, .010 1 49.40
3 RK4810807 48 108 07 Kohler Ring Set, .020 1 63.50
3 RK4810808 48 108 08 Kohler Ring Set, .030 1 63.50
4 RK4701801 47 018 01 Kohler Retainer, Pin 2 2.10
NEW STYLE MAHLE PISTON DESIGN
5 RK4506724 45 067 24 Kohler Rod, Connecting - Standard 1 59.85
5 RK4506725 45 067 25 Kohler Rod, Connecting - .010 1 83.55
6 RK4787421 47 874 21 Kohler Piston Assy, Standard 1 166.65
6 RK4787422 47 874 22 Kohler Piston Assy, .003 1 124.95
6 RK4787423 47 874 23 Kohler Piston Assy, .010 1 160.65
6 RK4787424 47 874 24 Kohler Piston Assy, .020 1 160.65
6 RK4787425 47 874 25 Kohler Piston Assy, .030 1 124.95
7 RK4710805 47 108 05 Kohler Ring Set, Std. & .003 1 59.30
7 RK4710806 47 108 06 Kohler Ring Set, .010 1 56.55
7 RK4710807 47 108 07 Kohler Ring Set, .020 1 56.55
7 RK4710808 47 108 08 Kohler Ring Set, .030 1 56.55
4 RK4701801 47 018 01 Kohler Retainer, Pin 2
Order parts according to design used on engine
1
3
4
2
3
4
1
2
18
8 9
6
21
20
10
5
16
2
17
13
7
12
4
3
1
22
14
11
19
15
23
7
3
6
5
NEW STYLE
PISTON
OLD STYLE
PISTON
Model K321S Spec. 60407
Fits Toro Greensmaster 3 & 300
For Toro Greensmaster 3000 see pages 828-833
For Toro Greensmaster 3100 see pages 844-849
