Item R&R KOHLER Qty. Discounted
No. Part No. Part No. Description Req. Price Each
529

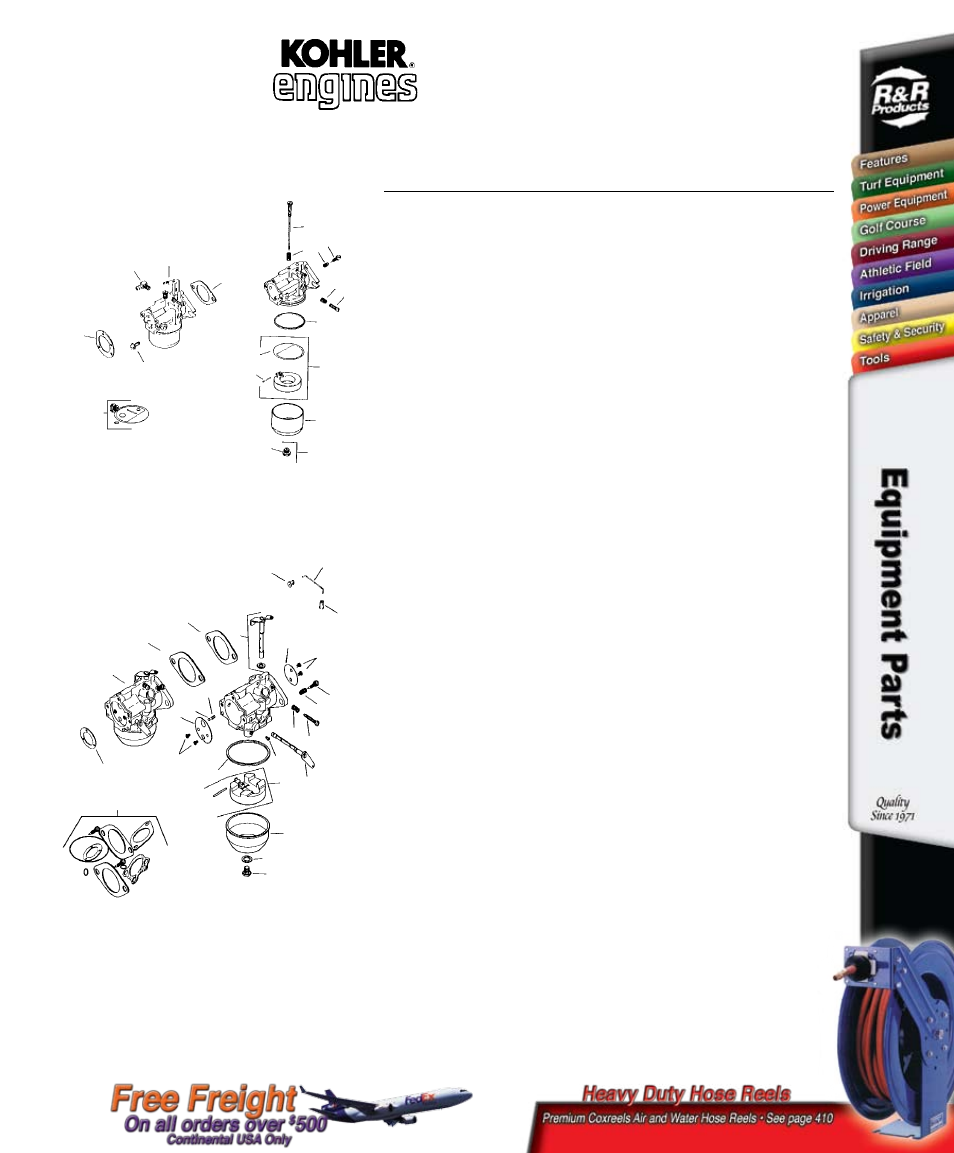

Carburetor - Group 5
1 RKX7701 X-770-1 Kohler Screw, Sltd. Hd. 2 1.30
2 RK4704901 47 049 01 Kohler Gasket, Carburetor 1 7.45
3 RK2515502 25 155 02 Kohler Connector, 90 0 Hose 1 0.47
FOR ENGINES BUILT BEFORE SERIAL #1802100013
USE THE FOLLOWING PARTS:
4 RK4505370 45 053 70 Use RK4585312
4 RK4585312 45 853 12 Kohler Carburetor Assy. 1 191.45
5 RK232555 232555 Kohler Spring, Idle Speed 1 3.50
6 RK232556 232556 Kohler Screw, Idle Speed Adjusting 1 2.70
7 RK200372 200372 Kohler Gasket, Bowl Retainer Screw 1 1.00
8 RK4710006 47 100 06 Kohler Screw, Bowl Retainer 1 3.00
9 RK235448 235448 Kohler Bowl 1 7.90
10 RK200376 200376 Kohler Pin 1 2.05
11 RK2575703 25 757 03 Kohler Kit, Float 1 9.25
12 RK2504102 25 041 02 Kohler Gasket, Bowl Baffle 1 2.70
13 RK200383 200383 Kohler Spring, Main Fuel 1 2.10
14 RK275231 275231 Kohler Needle, Idle Fuel Adjusting 1 6.25
15 RK200380 200380 Kohler Spring, Idle Fuel 1 2.70
16 RK200375 200375 Kohler Gasket, Bowl 1 2.60
17 RK4704105 47 041 05 Kohler Gasket, Air Cleaner 1 2.10
18 RK4510301 45 103 01 Kohler Needle, Main Fuel Adj. 1 12.00
19 RK2575702 25 757 02 Kohler Kit, Carburetor Repair 1 11.50
FOR ENGINES BUILT AFTER SERIAL #1802100003
USE THE FOLLOWING PARTS:
21 RK4585305 45 853 05 Use RK4585315
21 RK4585315 45 853 15 Kohler Kit, Carburetor w/Linkage 1 192.10
22 RK4704901 47 049 01 Kohler Gasket, Carburetor 1 7.45
23 RK271030 271030 Kohler Gasket, Carburetor 1 2.30
24 RK4707905 47 079 05 Use RK4707910
24 RK4707910 47 079 10 Kohler Linkage, Carburetor 1 3.70
25 RK2515811 25 158 09 Kohler Bushing , Yellow, Linkage Retaining 1 1.00
26 RK4715807 47 158 07 Kohler Bushing , Natural, Linkage Retaining 1 1.00
27 RK2508627 25 086 27 Kohler Screw, Throttle & Choke Plate 4 1.45
28 RK4514607 45 146 07 Kohler Plate, Choke 1 2.05
29 RK2509401 25 094 01 Kohler Ball, Choke Friction 1
30 RK2508903 25 089 03 Kohler Spring, Choke Friction 1 4.40
31 RK4714436 47 144 25 Kohler Shaft, Throttle w/Lever & Seal 1 12.55
32 RK4714610 47 146 10 Kohler Plate, Throttle 1 5.90
33 RK2508902 25 089 02 Kohler Spring, Idle Fuel 1 1.85
34 RK2536801 25 368 01 Kohler Needle, Idle Fuel Adj. 1 2.35
35 RK2508904 25 089 04 Kohler Spring, Idle Speed 1 3.85
36 RK2508626 25 086 26 Kohler Screw, Idle Speed Adj. 1 1.80
37 RK4709038 47 090 38 Kohler Shaft, Choke w/Lever 1 17.65
38 RK4533701 45 337 01 Kohler Jet, Main 1 5.05
39 RK2504104 25 041 04 Kohler Gasket, Bowl 1 3.15
40 RK2575709 25 757 09 Kohler Kit, Float 1 11.30
41 RK2510401 25 104 01 Kohler Bowl, Fuel 1 9.15
42 RK2504103 25 041 03 Kohler Gasket, Bowl Retainer Screw 1 2.40
43 RK2510005 25 100 05 Kohler Screw, Bowl Retainer 1 1.60
44 RK4504107 45 041 07 Kohler Gasket, Air Cleaner 1 2.05
45 RK2575708 25 757 08 Use RK2575711
45 RK2575711 25 757 11 Kohler Kit Carburetor Repair 1 25.15
46 RK4575514 45 755 14 Kohler Kit, High Altitude Jet 1 11.60
4
5
1 10
7
2
9
8
6
3
16
11
12
131514
18
17
33
32 22
35
29
34
30
25
26
27
28
23
24
21
31
44
37
43
42
41
40
39
27
36
38
19
45
Model M16S Spec. 711528
Fits Jacobsen Greens King IV
