Item R&R KOHLER Qty. Discounted
No. Part No. Part No. Description Req. Price Each
985

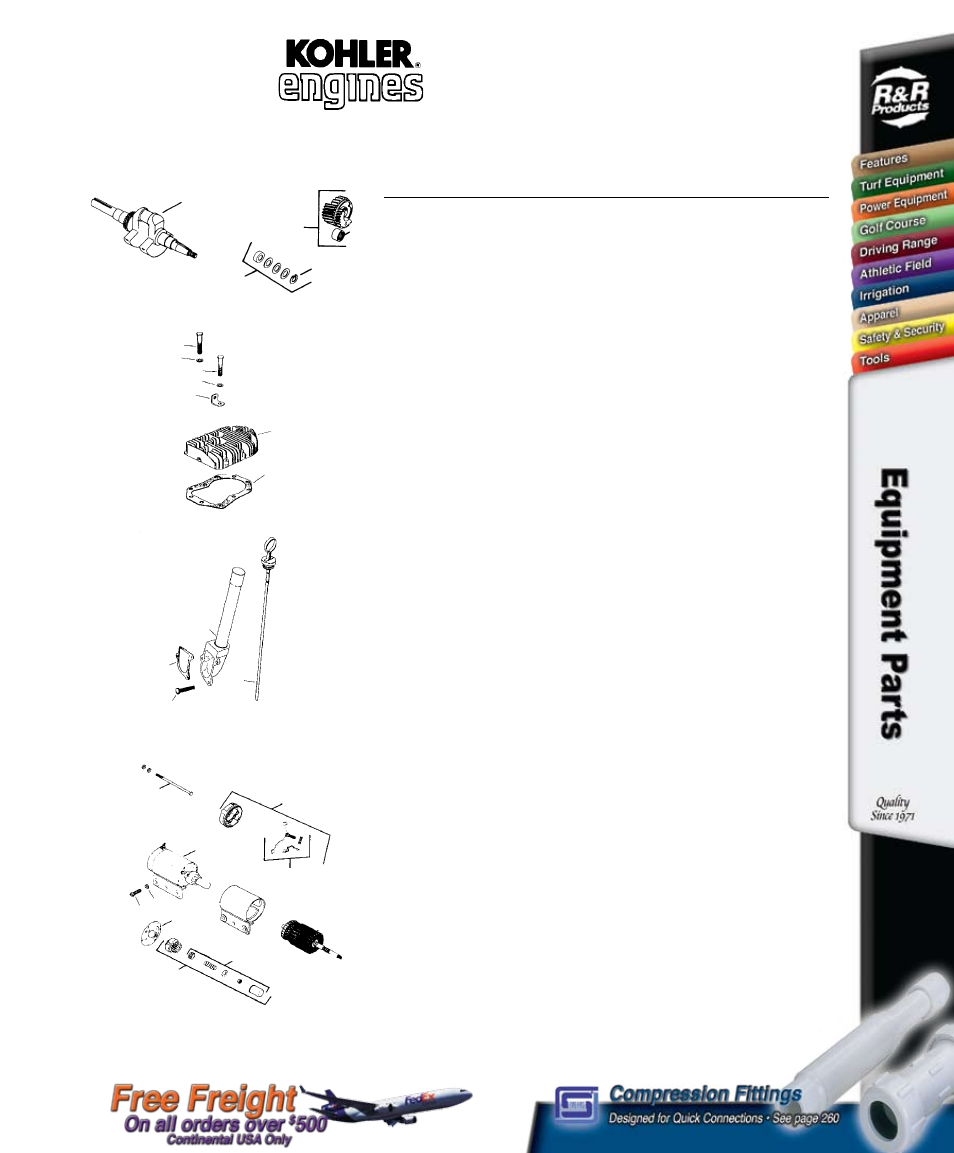

Crankshaft - Group 8
1 RKX26934 X-269-34 Kohler Retainer 2 0.73
2 RK4704201 47 042 01 Use RK4504303
2 RK4504303 45 043 03 Kohler Gear Assy. 2 65.45
3 RK4703001 47 030 01 Kohler Bearing, Needle 2 8.75
4 RK4775501 47 755 01 Kohler Kit, Spacer 1 22.75
5 RK4501405 45 014 05 Use RK4514236
5 RK4514217 45 142 17 Use RK4514236
5 RK4514236 45 142 36 Kohler Crankshaft 1 244.20
Cylinder Head - Group 9
1 RK4744501 47 445 01 Use RK4744502
1 RK4744502 47 445 02 Kohler Strap, Lifting 1 2.05
2 RK237658 237658 Use RK4704110
2 RK4704110 47 041 10 Use RK4704115
2 RK4704115 47 041 15 Kohler Gasket, Cylinder Head 1 9.35
3 RK237670 237670 Kohler Head, Cylinder 1 113.25
4 RK270158 270158 Kohler Screw, H.C. 3/8-16 x 1 1/2 8 2.70
5 RK270721 270721 Kohler Screw, H.C. 3/8-16X1 3/4 1 3.65
6 RK270889 270889 Kohler Washer, Plain 3/8 10 2.70
Dipstick - Group 10
1 RKX1312 X-131-2 Kohler Screw, 10-24 x 1/2 R.H. 3 0.47
2 RK237064 237064 Kohler Gasket 1 3.35
3 RK4703816 47 038 16 Kohler Dipstick 1 59.90
4 RK4718004 47 180 04 Kohler Tube, Oil Fill 1 45.55
Electric Start - Group 11
1 RKX221 X-22-1 Kohler Washer 3/8 2 0.99
2 RK234948 234948 Kohler Screw, H.C. 3/8-16 x 1 11/32 2 3.00
3 RK4509809 45 098 09 Kohler Starter Assy 1 139.85
4 RK4575515 47 755 07 Kohler Kit, Drive 1 79.25
5 RK4575515 45 755 15 Kohler Kit, Drive Parts 1 79.25
6 RK4508105 4508105 Kohler Cap, Drive End 1 40.30
8 RK4508105 48 227 04 Kohler Cap, Commutator End 1 40.30
9 RK237649 237649 Kohler Thru Bolt with Washer 2 9.50
10 RK4875515 48 755 15 Use RK5275515
10 RK8275528 52 755 15 Kohler Kit, Brush 1 34.80
RK5235701 52 357 01 Kohler Lubricant, Starter 1 4.15
1
5
2
4
3
4
5
6
8
9
10
1
2
3
1
2
3
4
6
6
5
1
2
4
3
Model K321S Spec. 60434
Fits Toro Sand Pro
