ScanControl 1612
- -
34

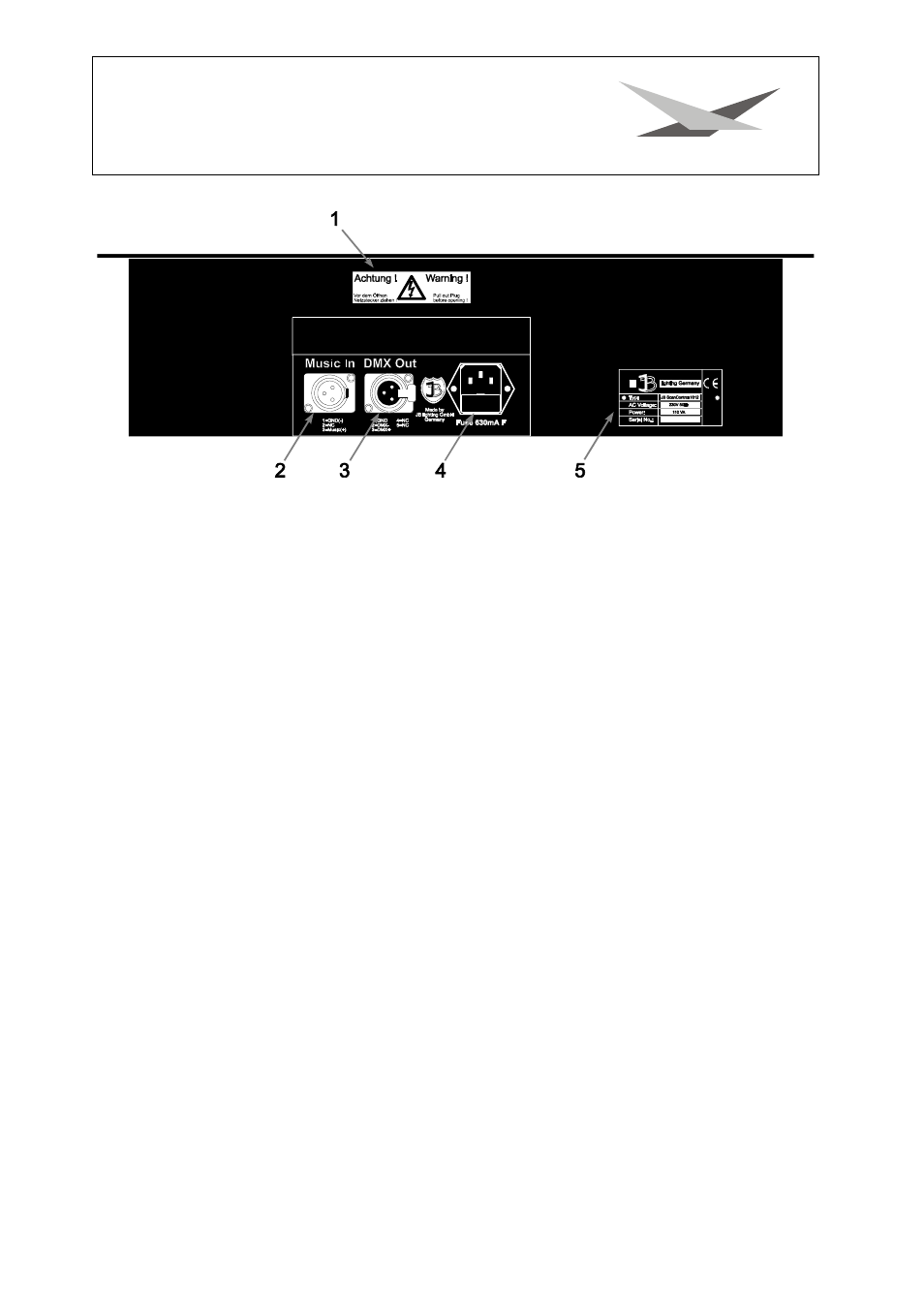

Backview of the Desk:
1
caution plate
2
music input
pin 1
ground
pin 2
not occupied
pin 3
audio signal from audio mixer (maximum input voltage
770 mV)
Warning: Do not connect a loudspeaker signal to the music input!!!
3
DMX-output occupied as follows:
pin 1
ground
pin 2
DMX-
pin 3
DMX+
pin 4
not occupied
pin 5
not occupied
For fixtures with 3-pole connectors, please make an adaptor cable occupied as follows:
5pol
3pol
signal
pin 1
pin 1
ground
pin 2
pin 2
DMX-
pin 3
pin 3
DMX+
pin 4
not occupied
pin 5
not occupied
4
mains input
230V/50Hz, fuse 630 mA F (fast)
5
identification plate gives information on model of appliance, input, serial
number, producer and CE certification
Configuration of connected appliances
ScanControl 1612 is suitable for up to 16 fixtures with 12 channels each. To operate your units by the
desk, you have to adjust them by choosing "setup" in the menu of your desk. Proceed as follows:
