ScanControl 1612
- - 35
Direction: Work parallel with operating instructions and lighting control desk only!!
1. Connect fixtures to the desk
DMX-lead: 2-pole microphone lead
5pol connector 5pol socket
signal microphone cable
pin 1 pin 1 ground screen
pin 2 pin 2 DMX- lead 1
pin 3 pin 3 DMX+ lead 2
pin 4 pin 4 not occupied
pin 5 pin 5 not occupied
2. Adjust DMX-addresses at each unit. Take care of using the correct addresses. For units with e.g. 8
channels the addresses have to be entered in the following way:
unit 1
start address 01
unit 2 start address 09
unit 3 start address 17
......

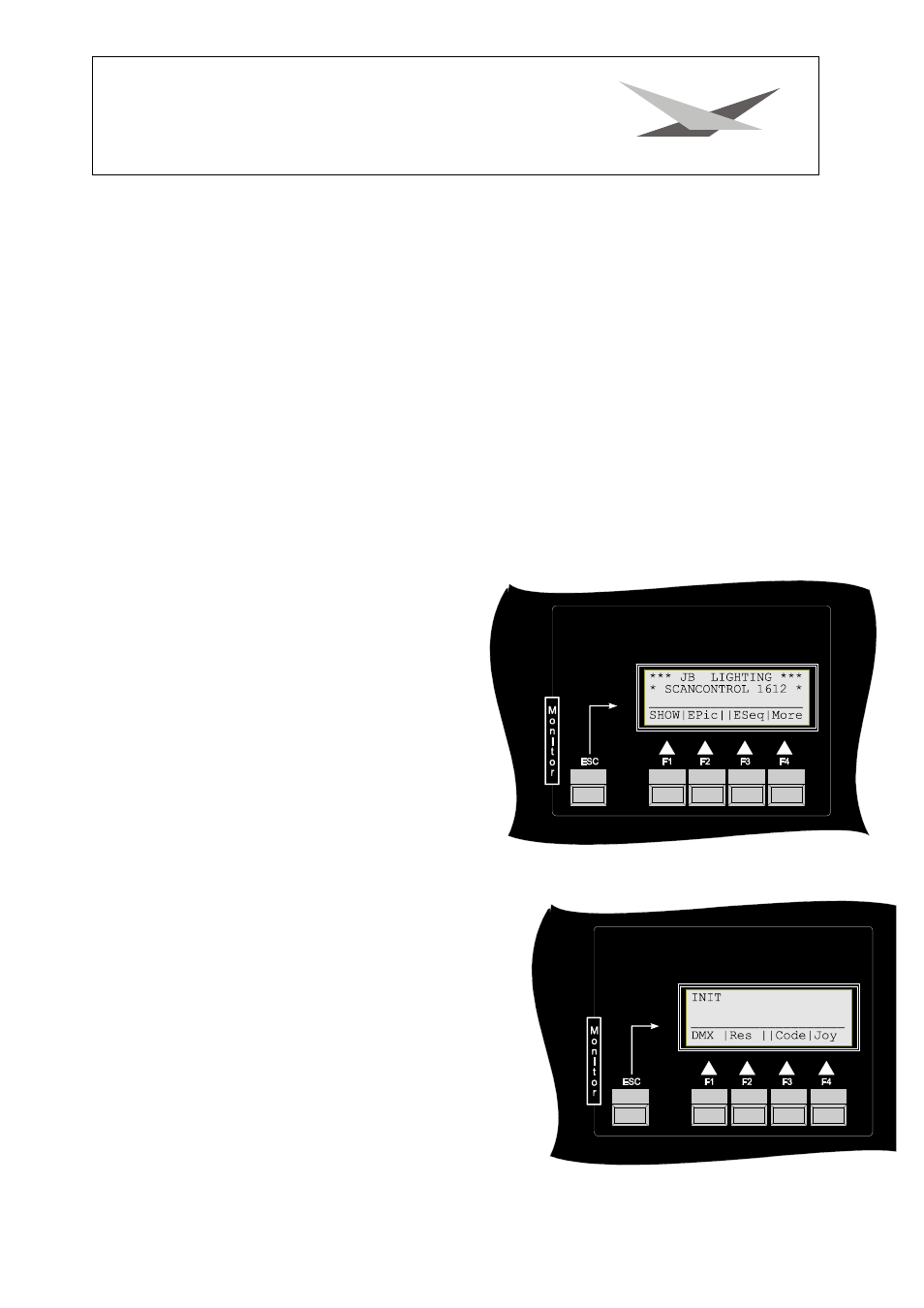

3. Creating the configuration:
Switch on the desk and find the main menue
approaching. With functional button F4 select More
to get to the next section of the main menue and
then press the Init button F2 to activate the Init
mode. You are requested to enter your setup-
password. The setup-password is a four-place
button-combination (To enter the password, you can
use every button of the desk; explanation follows
later on). All new desk are delivered with the
following passwort sequence F1, F2, F3, F4. To
enter the Init mode press buttons F1, F2, F3, F4 in
this order. For every button you press a star showed
on the display. If you enter the correct password you
enter the setup mode of the desk. Now you can
select different parameters to configurate the desk according to your requirements.
DMX
DMX-Setup
configuration and attachment of the addresses of each
unit
Res
Reset
delete memories, sequences and DMX-Setup
Code
Code-Setup
set passwords
Joy
Joystickcalibration
used by manufacturer to adjust the analog Joystick
