ScanControl 1612
- - 49
Set If you want to load data from the setup memory to the desk. As your memory module
enables you to store up to 8 different setups on it, you can select with the button Bank
which of the stored setups (B1-B8) you want to load. With the button Exec you confirm
the loading process.
Store data on memory module

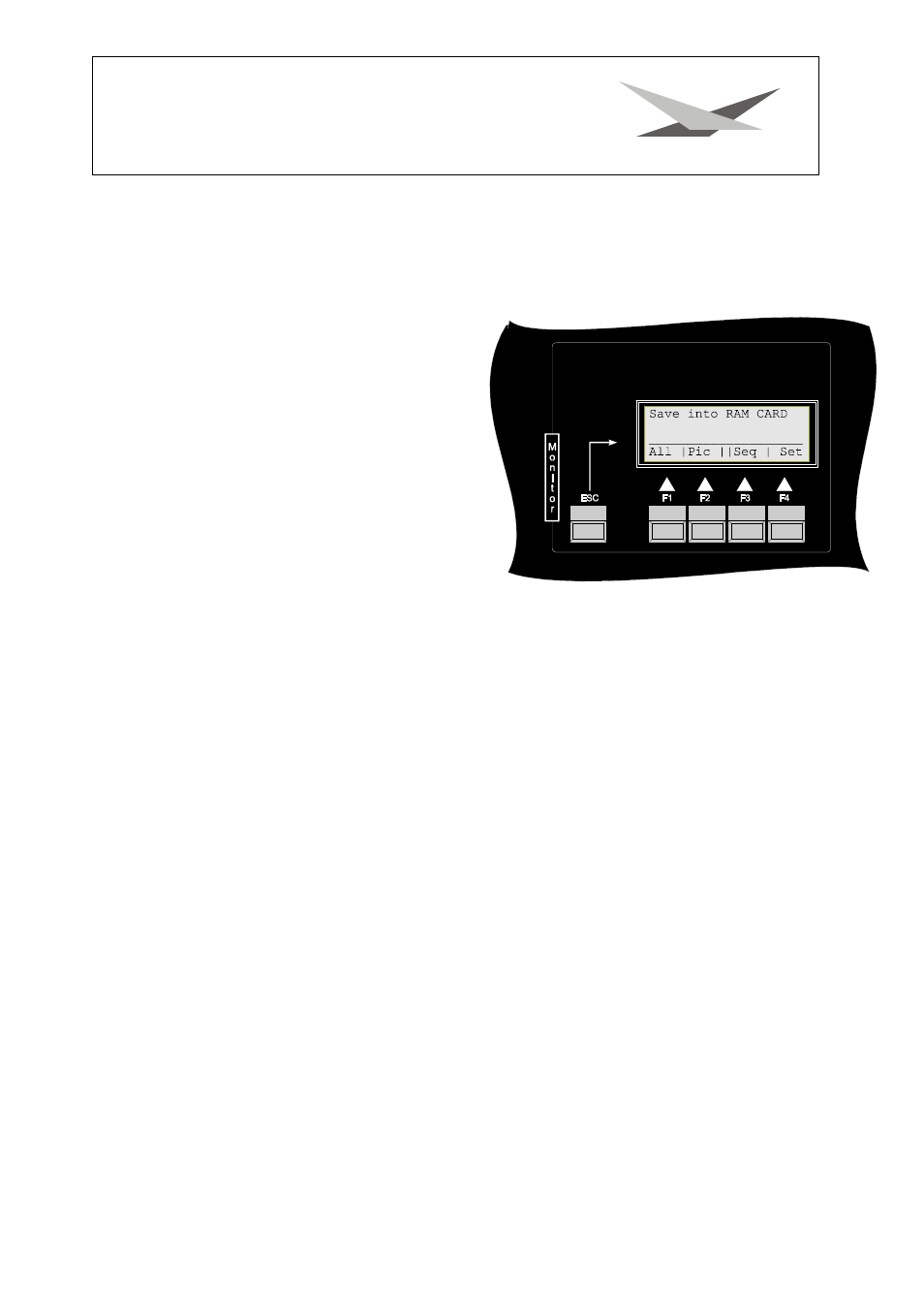

After having pressed the button Save, you can
choose from the following functions:
All
If you want to store all data from the
desk to the memory module. The
picture memory, the sequence
memory and the setup memory are
in each case completely stored on
the memory module. Sequence and
setup data will be stored in Bank 1.
Pic
If you only want to store all data of the picture memory from the desk to the memory
module.
Seq
If you want to store data of the sequence memory completely or partly to the memory
module. As your memory module enables you to store data in up to 3 complete
sequence memories (3*24 shutter sequences; bank 1 to bank 3), you can select with
button Bank into which memory bank you want to store the data of the actual sequence
memory of the desk. With button S/A you switch over, if you want to store all shutter
sequences (on the display you see an A for all) into the selected bank, or only a certain
sequence. Via joystick (left/right) you can select the destination for the sequence on the
memory module and also via joystick (up/down) you can select the basic sequence from
the desk. With button Exec you confirm the storage process.
Set
If you want to store data from the actual setup memory of the desk to the memory
module. As your memory module enables you to store up to 8 different setups on it, you
can select with the button Bank into which of the memory banks (B1-B8) you want to
store the actual setup of the desk. With button Exec you confirm the storage process.
Change of Eprom/Software Upgrade
Save your program data on a Ram-Card. Unfortunately setup-data can not be reload from the Ram-Card
after upgrading the desk
Switch off your ScanControl 1612 and disconnect from mains.
Loosen the four screws of the front plate and lift it up with the complete main circuit board and the
joystick. Pull the plug for the Ram-Card board at the backside of the main circuit board. Lay the front
plate down (circuit board upwards and the joystick at the right hand side on a hard underlay).
At the right side of the circuit board you can see the eprom.
Pull it carefully out of the socket and set new one in.
Attention:
Pay attention to the polarity of the eprom!! (The indentation of the eprom has to show in
the same direction as the indentation at the IC-socket). All pins must be put in correctly!
