ScanControl 1612
- - 38
b) y-channel
After the gobo-channel, you have to adjust the channel for tilt-movement. Press the x/y- button until the
indicator for y-channel (DMX-CH Pos Y) is showed on display, now you can adjust the y-channel by
shifting the joystick. Related to the above mentioned example: adjust channel no. 18.
c) x-channel
Press the x/y-button until the indicator for
the x-channel (DMX-CH Pos X) is showed on
display. Now adjust the channel for pan-
movement by shifting the joystick as you did
before. Related to the example: adjust
address 19.
d) Colour-channel
The procedure for the adjustment of the
colour-channel is similar to the one for the
gobo-channel. Select DMX-CH Color by
pressing the colour-button and adjust dmx-
channel no.20 via joystick. While the colour-
button is activated (LED of the button is lit), press button 1 in order to adjust colour 1 by joystick.
Proceed in the same way with buttons no. 1 to 24.
e) Iris-channel
In the above mentioned example the next channel assigned for adjustment is the iris-channel. Press the
button Iris and adjust the address for the iris. According to our example it is dmx-channel no. 21
f) Dimmer-channel
To adjust the dimmer-channel proceed in the same way: you press the dimmer-button and select the
dimmer-address by joystick. According to our example select dmx-channel no. 22
g) Shutter-channel
At first the adjustment of dimmer-/shutter-Functions has to be configurated correctly, before you are able
to adjust the shutter-channel. Press button Func (F2) until
you following functions are shown on display :
•
Max dimming: You enter the DMX-value for dimmer
open. Adjustment by shifting the joystick.
•
Shut opend: : You enter the DMX-value for shutter
open. Adjustment by shifting the joystick.
•
Shut closed: : You enter the DMX-value for shutter
closed. Adjustment by shifting the joystick.
•

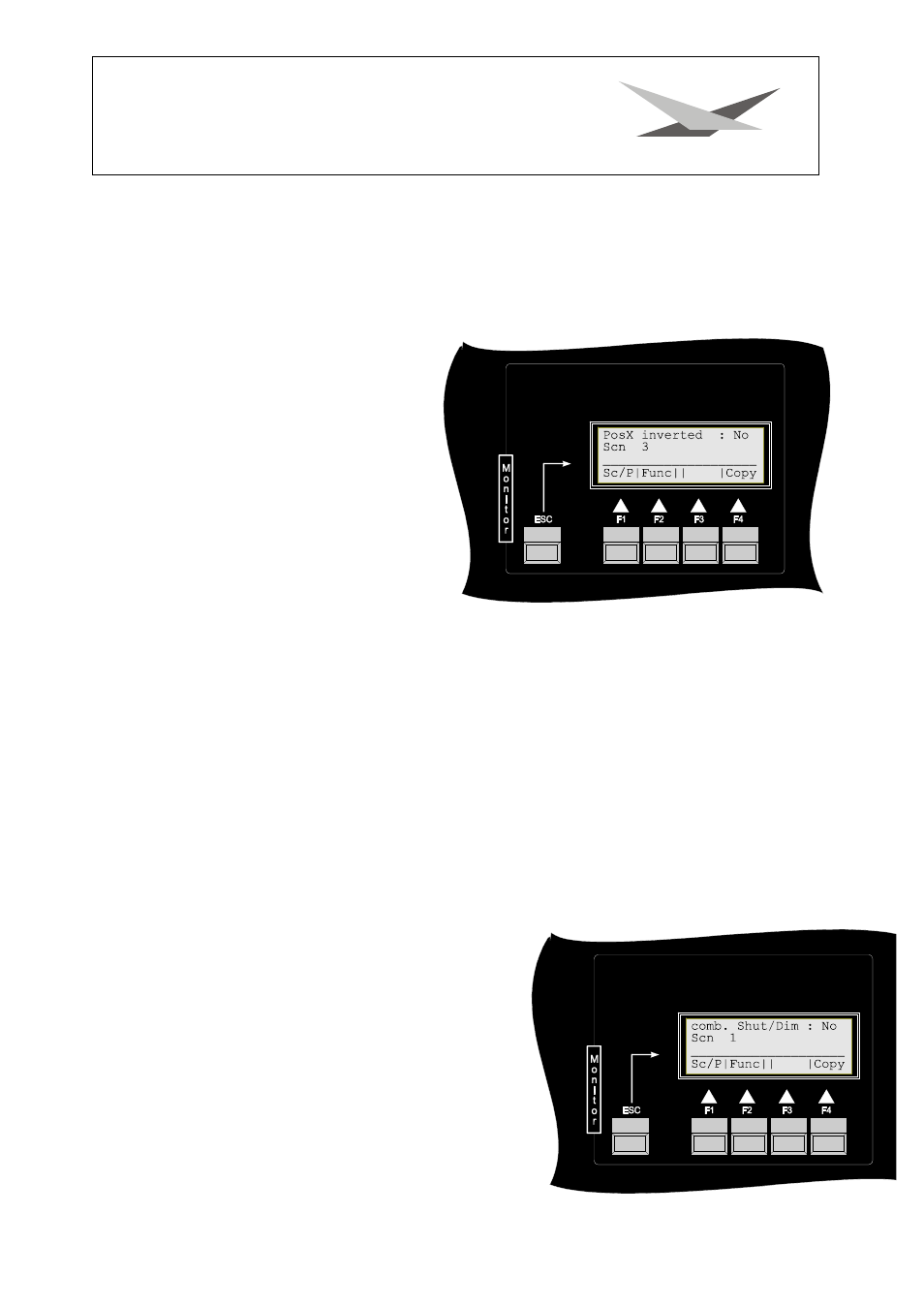

comb. Shutter/Dimmer: Acording to your fixture you
have to assign whether the units requires one channel
for dimmer and shutter or two channels for both of the
parameters. Adjustment by shifting the joystick.
