ScanControl 1612
- - 37

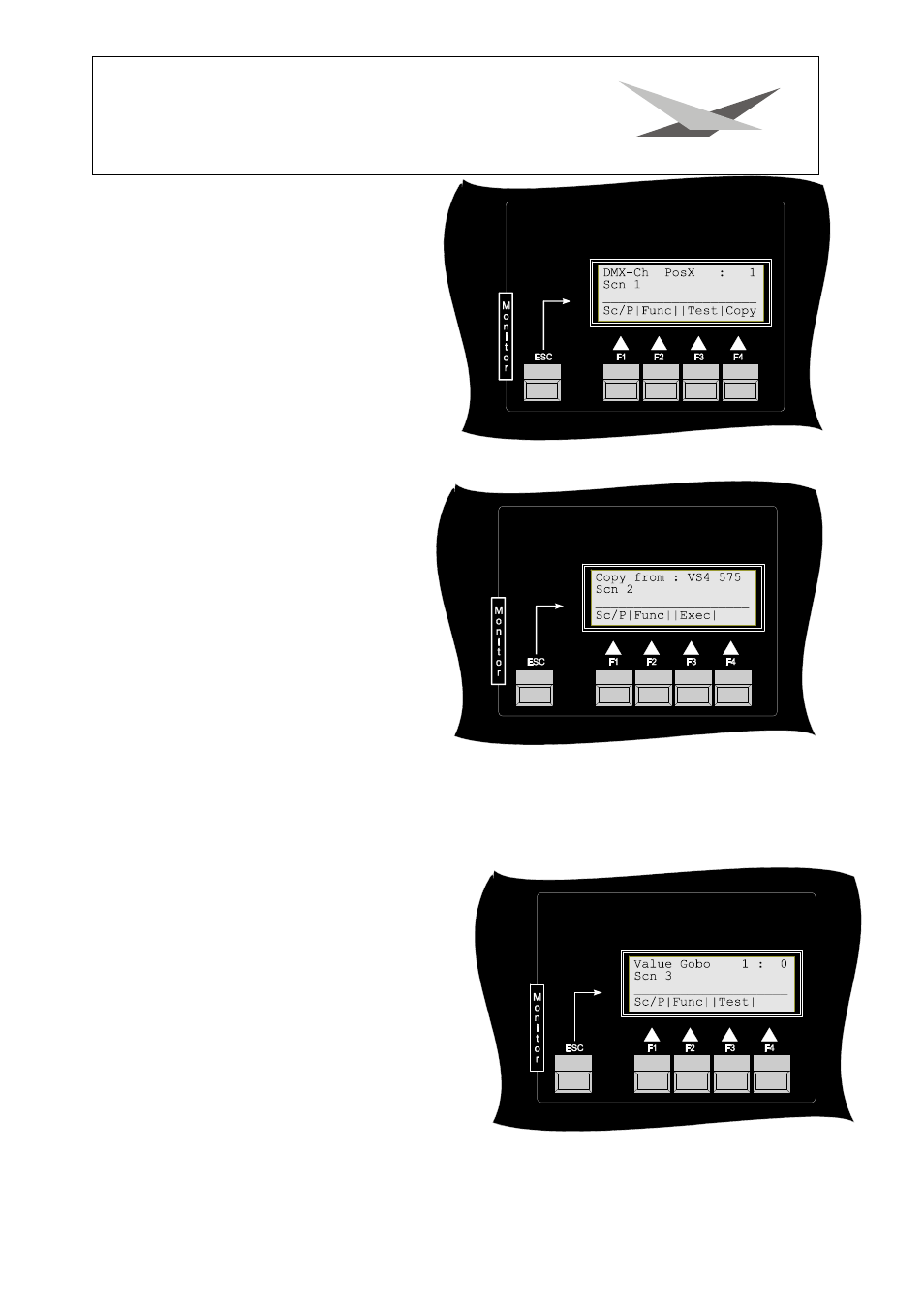

Press the button until Scn for fixture appears
on the display in second line. Now you
activate the unit, which you want to
configurate by pressing buttons 1-16.
Example unit no. 1.
Your selection is showed on the display in
second line. You enter the pan-channel for
the first fixture (in this case Varyscan 4 1200
HMI) by pressing button x/y and adjust
channel no. 1 by shifting the joystick (your
selection is showed on display; you can
select from not occupied channels only).
Subsequently you will see item Copy (button
F4). Press the button Copy to copy existing
scanner configurations. Adjust by shifting the
joystick the type or the number of the unit from which you want to copy a configuration and press the
button Execute. For example (see p. 9) you select VS4 1200 and press button Exec.
To configurate the second fixture, activate it
by pressing button no. 2 (SCN 2 is showed
on display). Configurate the x-channel by
pressing x/y- button and by adjusting
address 9 via joystick. Function COPY
appears on display now, press this
functional button and select scan VS4 575
by shifting the joystick. Enter your selection
by pressing button
EXECute. The
configuration of fixture no. 2 is finished now.
To complete configuration of the third fixture (which is not included in the desks library) proceed like this:
For the mentioned example, select fixture no. 3 by pressing button 3 (SCN 3 is showed on display).
Corresponding to each parameter, the dmx-channels have to be adjusted.
a) Gobo-channel
In the mentioned example the gobo-channel is the
first channel of this unit. The configuration of this
unit starts at dmx-channel 17. So you just have to
enter dmx-channel no. 17 as gobo-channel.
Therefore press button GOBO and adjust the
address no.17 by shifting the joystick.
Subsequently, you are immediately able to
configurate each gobo of a scan. The gobo-button
has to be activated (LED of the button has to be
lit). Press gobo-button no. 1 now.
By shifting the joystick you can adjust DMX-data
for the first gobo. After pressing gobo-button no. 2
the dmx-data for the first gobo is entered and you
can adjust data for the second gobo via joystick.
Proceed until you have configurated every gobo of
the fixture.
