The memory organisation of your desk has changed from software version 1.37! So please start
your desk as follows, if you want to keep your program dates:
1.
Connect your desk to mains, but leave the power on button to off.
2. Press the key 24 in the scan-selection field and hold it tight.
3. Switch the power on (still press the key 24) and wait until the information “JB lighting
ScanControl 1612 Ver. 1.37” appears on the display. Then release key 24! our program data are
changed.
4. Set up a new configuration for your fixtures and dimmer-channels.
Calibration of Joystick (Softwareversion of Desk >1.31)
The first calibration of the joystick is done by the producer of the desk. If the joystick is decalibrated, you
have the possibility to re-calibrate the joystick. To do so, you press button More in main menu, then Init

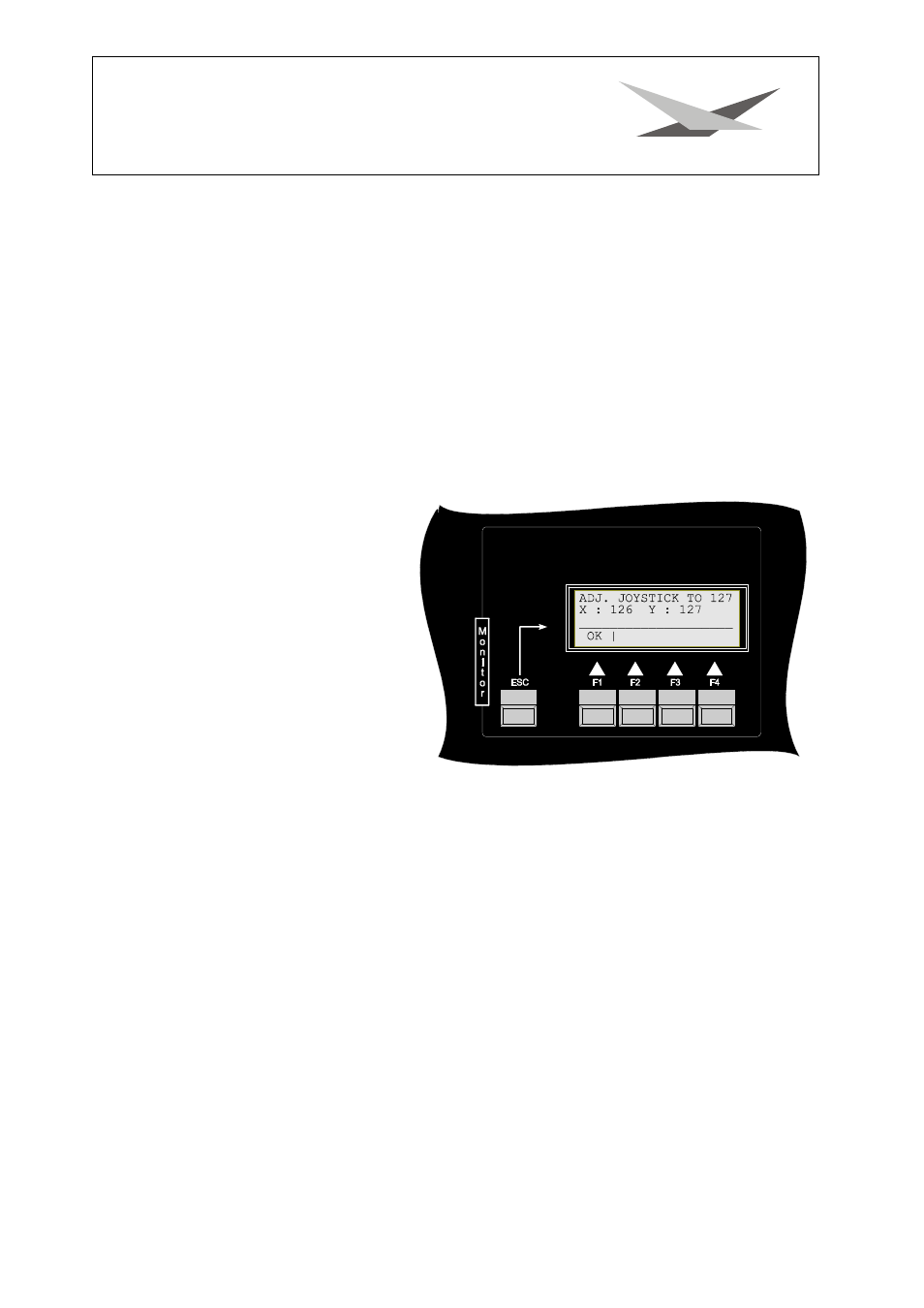

and then the button Joystick to open the calibration-menu. The following information appears on display:
You have to check the values for X and Y.
The Values must been in a range
between 120 and 135 (the position of the
joystick must be in the middle). If it is ok,
you just have to press the button OK and
the desk re-calibrates the Joystick. If the
values for X and Y are out of these range
you have to contact your dealer /
producer.
Technical Data
DMX Data:
standard:
DMX 512 /1990
reference: United States Institute for Theatre Technology Inc.
electric specification: EIA-422A and EIA-485
transmission rate: 250kBit
max. update time: 2,5ms
number of channels: 192 channels
Audio Data:
input voltage:
400mV
max. input voltage: max. 8V
frequency range: 100Hz - 4000Hz
max. clock frequency: 2Hz
connection to cabinet: XLR 3pin
Electric Data:
power consumption:
30VA
mains voltage: 180V - 240V
connection to cabinet: rubber connector with fuse
Powerswitch: : Low-Voltage-Powerswitch
