DVI-CON « User modules
43 · G&D DVICenter DP32
Installation
Connecting console devices
Keyb.:
Connect the PS/2 keyboard of the local console.
Mouse:
Connect the PS/2 mouse of the local console.
Keyb./Mouse:
Connect the USB keyboard and/or USB mouse of the local console.
DVI/VGA Out:
Connect the monitor of the local console.
Micro In:
Connect the optional microphone of the local console.
Speaker:
Connect the optional speakers of the local console.
NOTE:
Both keyboard and mouse signals can be transmitted to the computer using
the PS/2 or the USB interfaces.
NOTE:
You can also combine PS/2 and USB devices, for example by connecting a
USB mouse and a PS/2 keyboard.

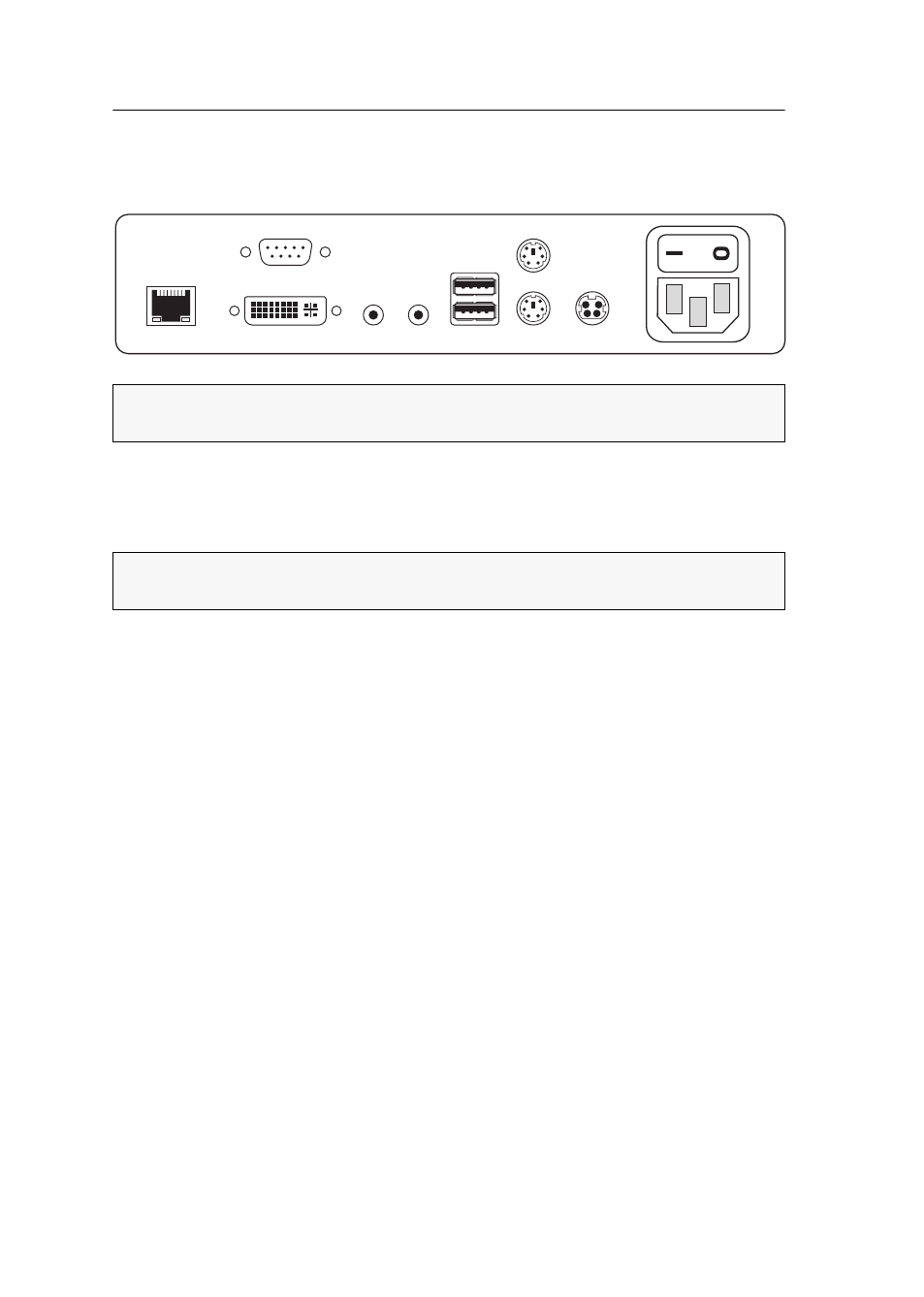

Transmission
Mouse
Keyb.
DVI/VGA Out
Micro In Speaker Keyb./Mouse
Red. Power
Main
Power
LED Out
