User module » DVI-CON
G&D DVICenter DP32 · 50
Status displays

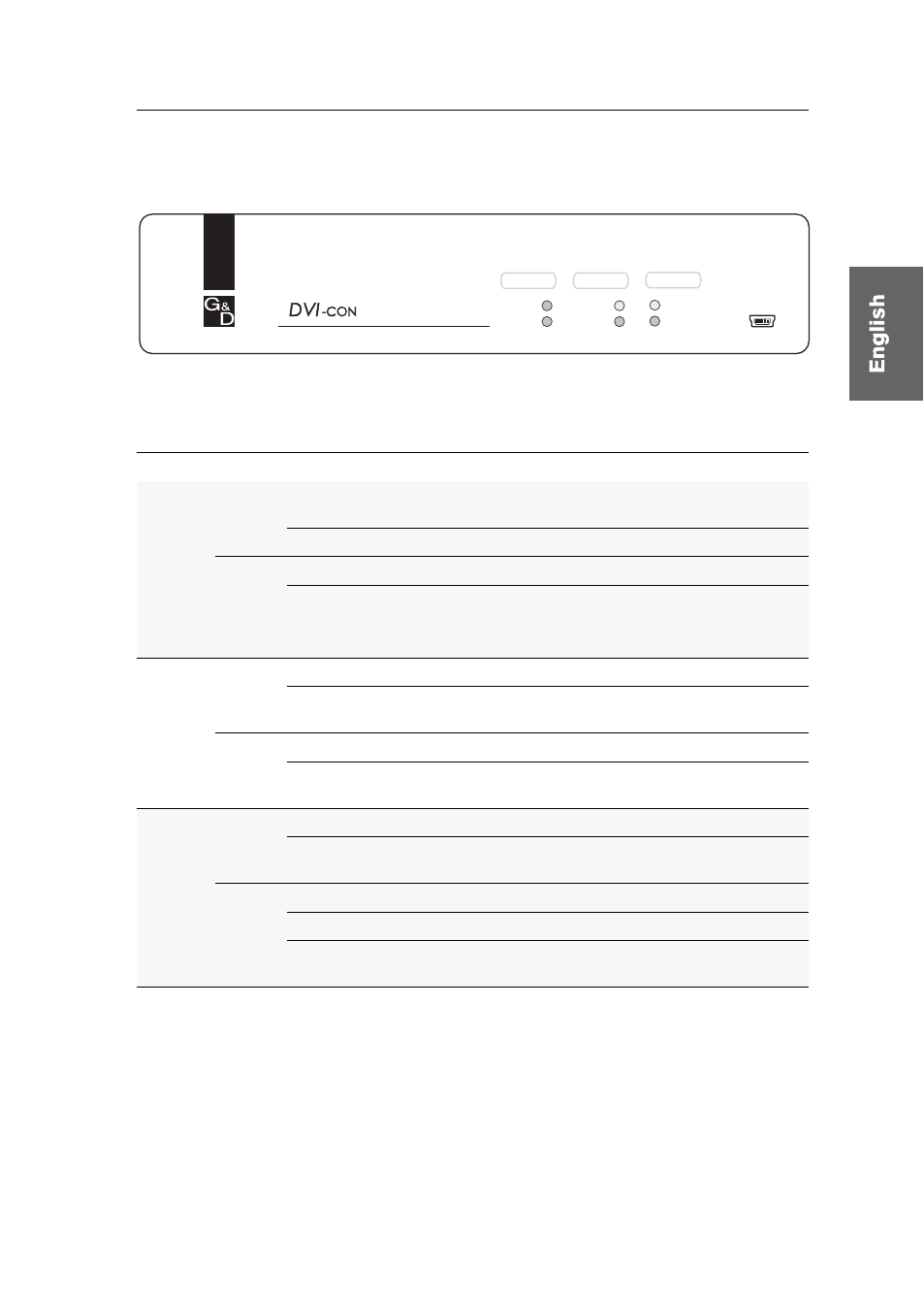

Front panel
The LEDs on the front panel of the user module inform you about the system’s
operating status.
Section LED Status Meaning
Power Red. On The optional power pack is connected and the required voltage
(12 Volt) is available.
Off The optional power pack is not (properly) connected.
Main On The main power supply provides the required voltage.
Off The power button is turned off or the connection with the mains
could not be established.
Check the proper connection of the power supply cable.
Status Trans. On The communication with the matrix switch could be established.
Off The communication with the matrix switch could not be estab-
lished.
System On The device is booting or carries out a firmware update.
Blink-
ing
The system is ready for operation.
Console Video On Stable image signal at video input.
Off The incoming video signal could not be detected or it lacks the
required quality to be processed by the system.
Active On A local keyboard was found.
Off No power at PS/2 interface or USB bus.
Blink-
ing
The CPU input (PS/2 or USB) is active and ready.
No local keyboard was found.
Trans.
System
Status
Main
Red.
Power Console
Video
K/M
Service
