Central Module » Installation
G&D DVICenter DP32 · 8

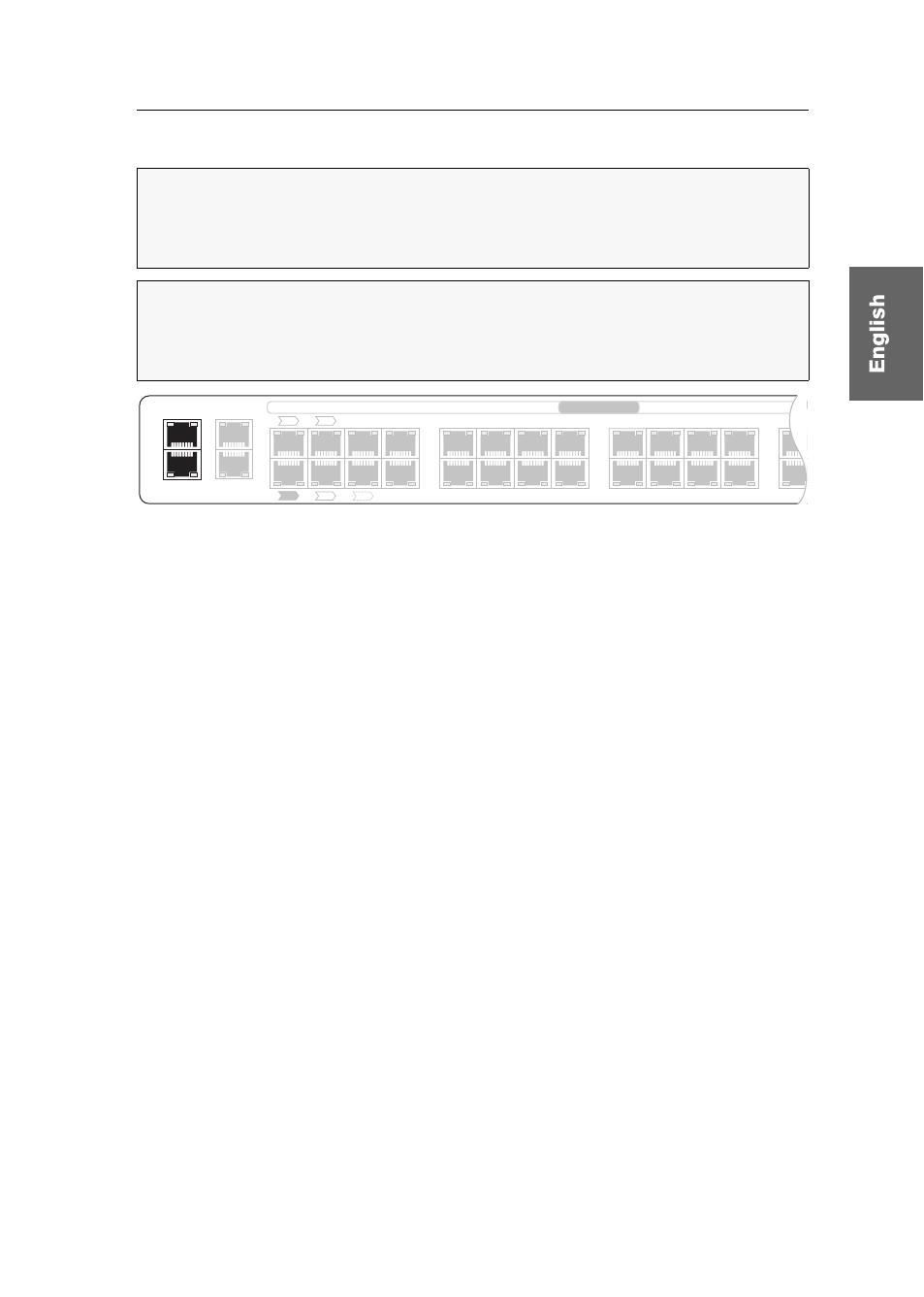

Network interfaces
Network A:
If required, plug in a category 5e (or better) twisted-pair cable, which is
available as accessory.
Connect the other end of the cable to a network interface of the local network.
Network B:
If required, plug in a category 5e (or better) twisted-pair cable, which is
available as accessory.
Connect the other end of the cable to a network interface of the local network.
NOTE:
You need to connect the central module to one or two local networks to
configure the central module via Config Panel web application and use the
enhanced network functionalities (for example authentication against directory
services, time sync via NTP server, netfilter or syslog).
IMPORTANT:
If you change the configuration of the Dynamic Ports in the web appli-
cation, or if you enable the signalling of the Dynamic Ports modes, end the connec-
tion to the web application (see page 17) and remove the twisted-pair cable from the
network port at the central module.
Network B
Network A
Bus In
Bus Out
16
14
12
10
15
13
11
9
24
22
20
18
23
21
19
17
7
3
5
1
6
8
4
2
26
25
Console side
Dynamic Ports
