Hypertherm MAX200 Machine Torch Plasma Arc Cutting System Benutzerhandbuch
Seite 105
3/8/99
STANDARD-KOMPONENTEN
MAX200
(Handbrenner) Betriebsanleitung
6-11
Teile-
Position
nummer
Beschreibung
Kennzeichnung
Menge
129118
Chopper SA, CH130 CE/LVD
CH2
1

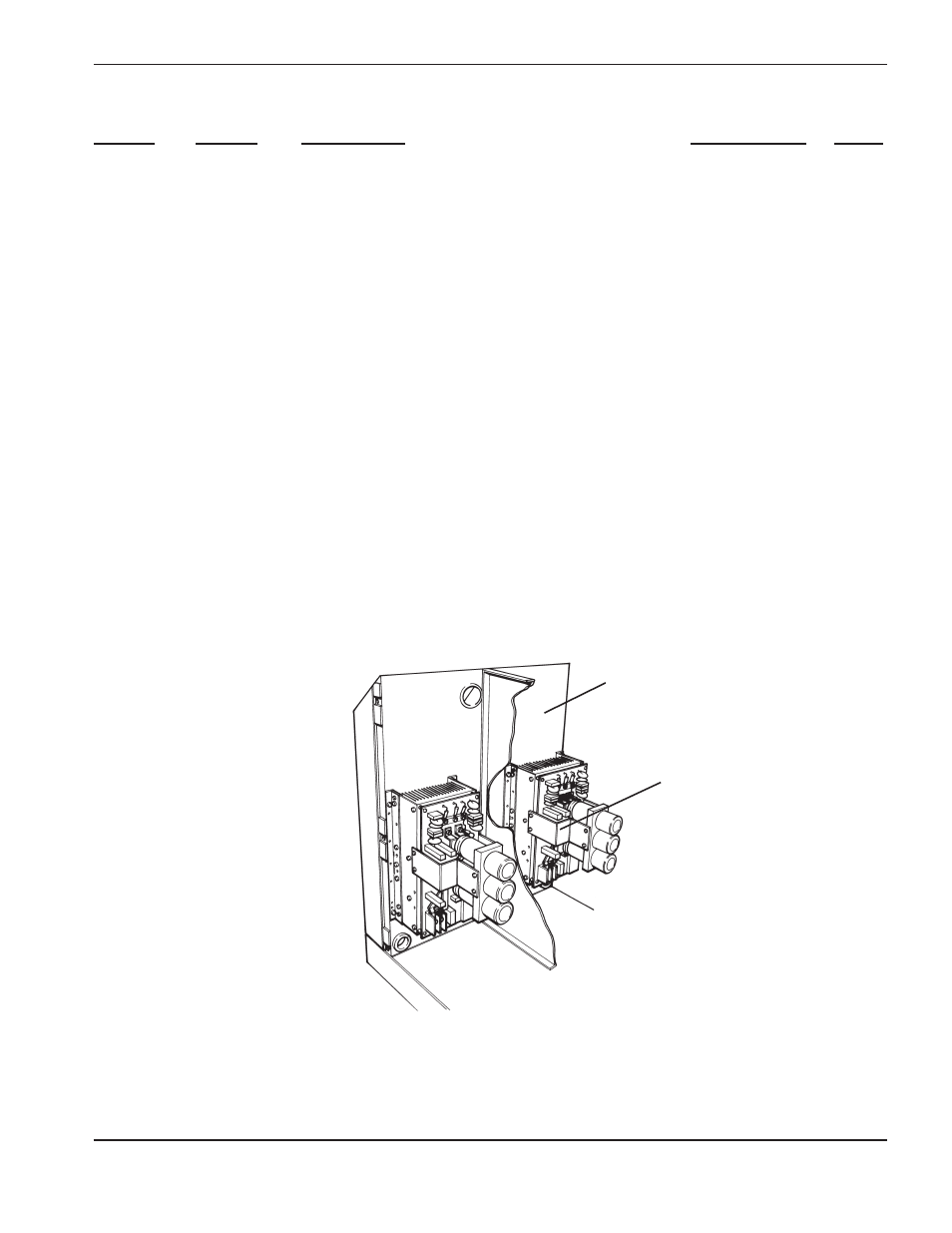

(see Fig. below)
005199
Switch, temperature 82° C
TSW2
1
1, 2 -11
Obsoleted Chopper SA 029320
P/O Power Supply Assy
12
005102
Thermostat, 160°C, 6 Amp
TS1
1
13
014078
Trans, 30 kw, 240/480V, 3Ø, 60 Hz
T2
1
014088
Trans, 30 kw, 220/380/400/415V, 3Ø, 50 Hz
T2
1
014082
Trans, 30 kw, 600V, 3Ø, 60 Hz
T2
1
014097
Trans, 30 kw, 208V, 3Ø, 60 Hz
T2
1
014100
Trans, 30 kw, 200V, 3Ø, 60 Hz
T2
1
14
014080
Inductor, 4 mh, 100 Amps, DC
L2
1
15
007022
Shunt, 100 Amp, 100 mv
R2
1
16
007022
Shunt, 100 Amp, 100 mv
R1
1
17
007024
Shunt, 200 Amp, 100 mv
R3
1
18
008317
Fuse, semiconductor, 125 Amp, 250 V
F4
1
19
008317
Fuse, semiconductor, 125 Amp, 250 V
F3
1
20 -24
Obsoleted chopper SA 029320
Chopper SA, CH2
129118
Linke Seite
