STANDARD-KOMPONENTEN
MAX200
(Handbrenner) Betriebsanleitung
6-13
Teile-
Position
nummer
Beschreibung
Kennzeichnung
Menge
P/O Power Supply Assy
1
008317
Fuse, semiconductor, 125 Amp, 250 V
F3
1
2
008317
Fuse, semiconductor, 125 Amp, 250 V
F4
1
129118
Chopper SA, CH130 CE/LVD
CH2
1
(see Fig. below)
005199
Switch, temperature 82° C
TSW2
1
3 - 6
Obsoleted Chopper SA 029320
P/O Power Supply Assy
7
014078
Trans, 30 kw, 240/480V, 3Ø, 60 Hz
T2
1
014088
Trans, 30 kw, 220/380/400/415V, 3Ø, 50 Hz
T2
1
014082
Trans, 30 kw, 600V, 3Ø, 60 Hz
T2
1
014097
Trans, 30 kw, 208V, 3Ø, 60 Hz
T2
1
014100
Trans, 30 kw, 200V, 3Ø, 60 Hz
T2
1
8
014080
Inductor, 4 mh, 100 Amps, DC
L2
1
9
009684
Resistor, 4 Ohm, 420 W
R6
2
10
009015
Resistor, 10 K Ohm, 10 W
R5
1
11
009438
Resistor, 5 Ohm, 50 W
R4
1
12
009506
Capacitor, elec, 250 uf, 350 VDC
C9
1
13
003021
Relay, 120 VAC
CR1
1
029314
P/O Plasma Gas Supply SA
14
005228
Switch, pressure, SPDT, 0-15 psi
PS3
1
P/O Power Supply Assy
15
029317
Transformer, High Voltage SA
T5
1
16
008479
Terminal strip, quick connect
TB2
1
17
029312
High Freq Input/Output Panel SA
1
18
009350
Assembly, spark gap
SG1
1
19
009349
Assembly, coil, high frequency
T6
1
20
041145
PCB, input/output
PCB5
1
21
029202
Sensor, current
CS1

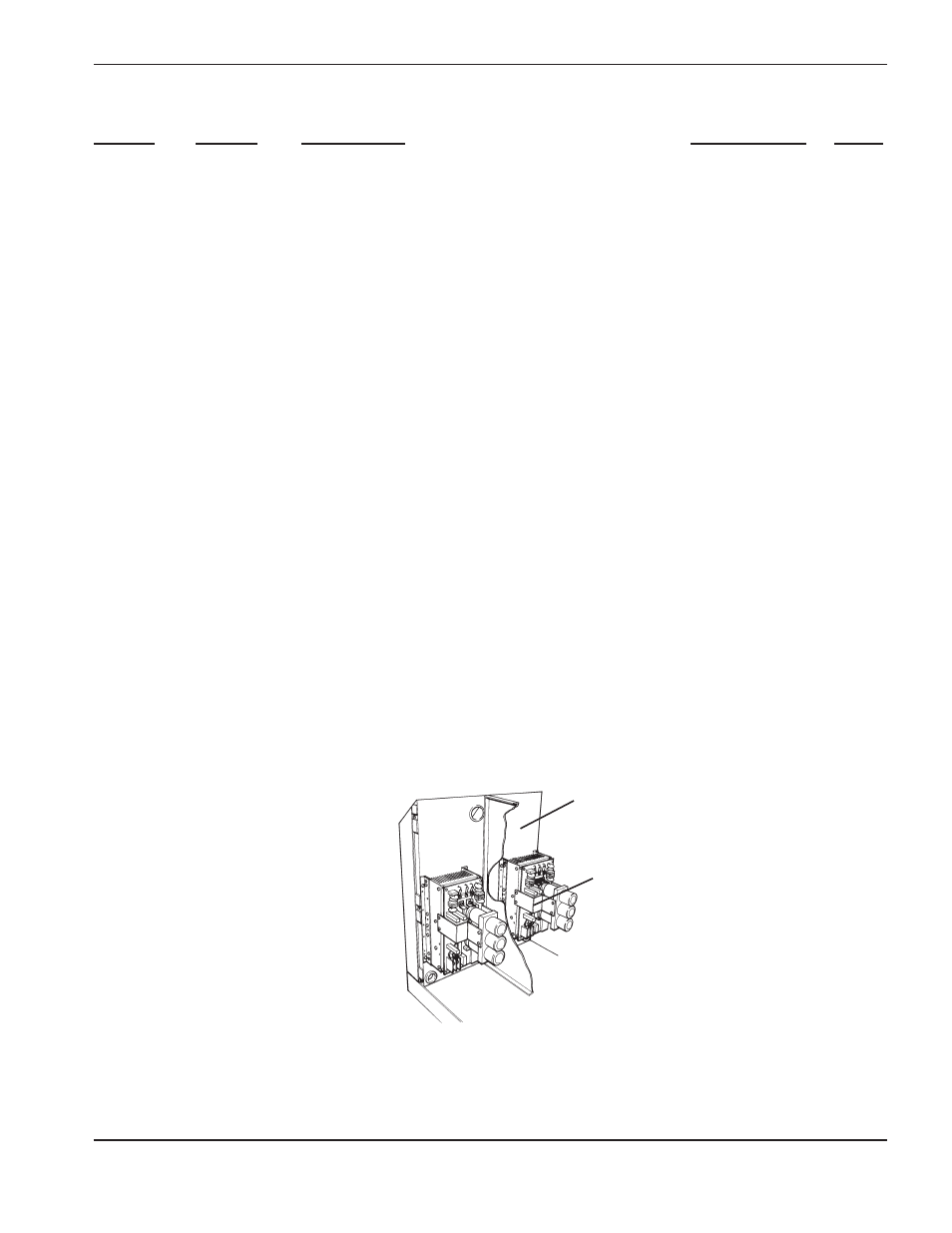

1
Linke Seite
Chopper SA, CH2
129118
