STANDARD-KOMPONENTEN
6-30
MAX200
(Handbrenner) Betriebsanleitung
MAX200 Rev 1-Handbrenner-Leitungs-Baugruppenteile
Teile-
Position
nummer
Beschreibung
Menge
029309
Hand Torch Lead, 25 Ft.
1
1
023326
Lead Pilot, Shield Gas, 25 Ft. (blue)
1
2
024194
Lead, Plasma Gas, 25 Ft. (red)
1
3
024192
Lead, Cap Sensor, 25 Ft. (gray)
1
4
023324
Cable, Water Cooled, 25 Ft.
1
(blue- red band)
5
023324
Cable, Water Cooled, 25 Ft.
1
(blue- green band)
6
047032
Cable, Switch, 26 Ft.
1
7
020536
Lead Insulator, 9/16" ID x 2-1/2"
1
8
046026
Tubing, 1-1/2" ID Shrink Black
2
9
024197
Sheath, 25 Ft.
1
029310
Hand Torch Lead, 50 Ft.
1
1
023327
Lead Pilot, Shield Gas, 50 Ft. (blue)
1
2
024195
Lead, Plasma Gas, 50 Ft. (red)
1
3
024193
Lead, Cap Sensor, 50 Ft. (gray)
1
4
023325
Cable, Water Cooled, 50 Ft.
1
(blue- red band)
5
023325
Cable, Water Cooled, 50 Ft.
1
(blue- green band)
6
047032
Cable, Switch, 51 Ft.
1
7
020536
Lead Insulator, 9/16" ID x 2-1/2"
1
8
046026
Tubing, 1-1/2" ID Shrink Black
2
9
024198
Sheath, 50 Ft.
1

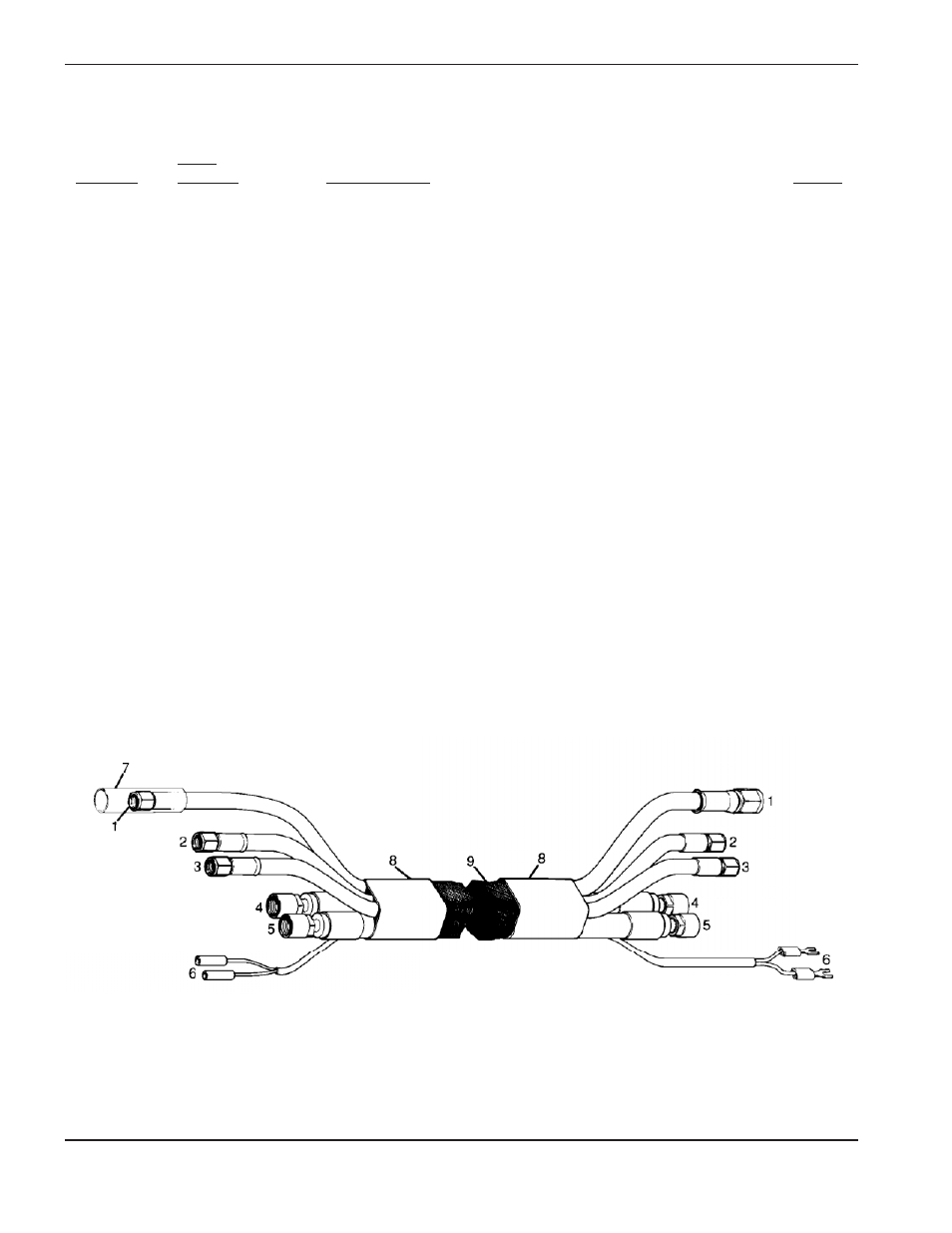

Abbildung 6-15
Handbrenner-Leitungs-Baugruppen
