HEIDENHAIN
Grundkurs G3

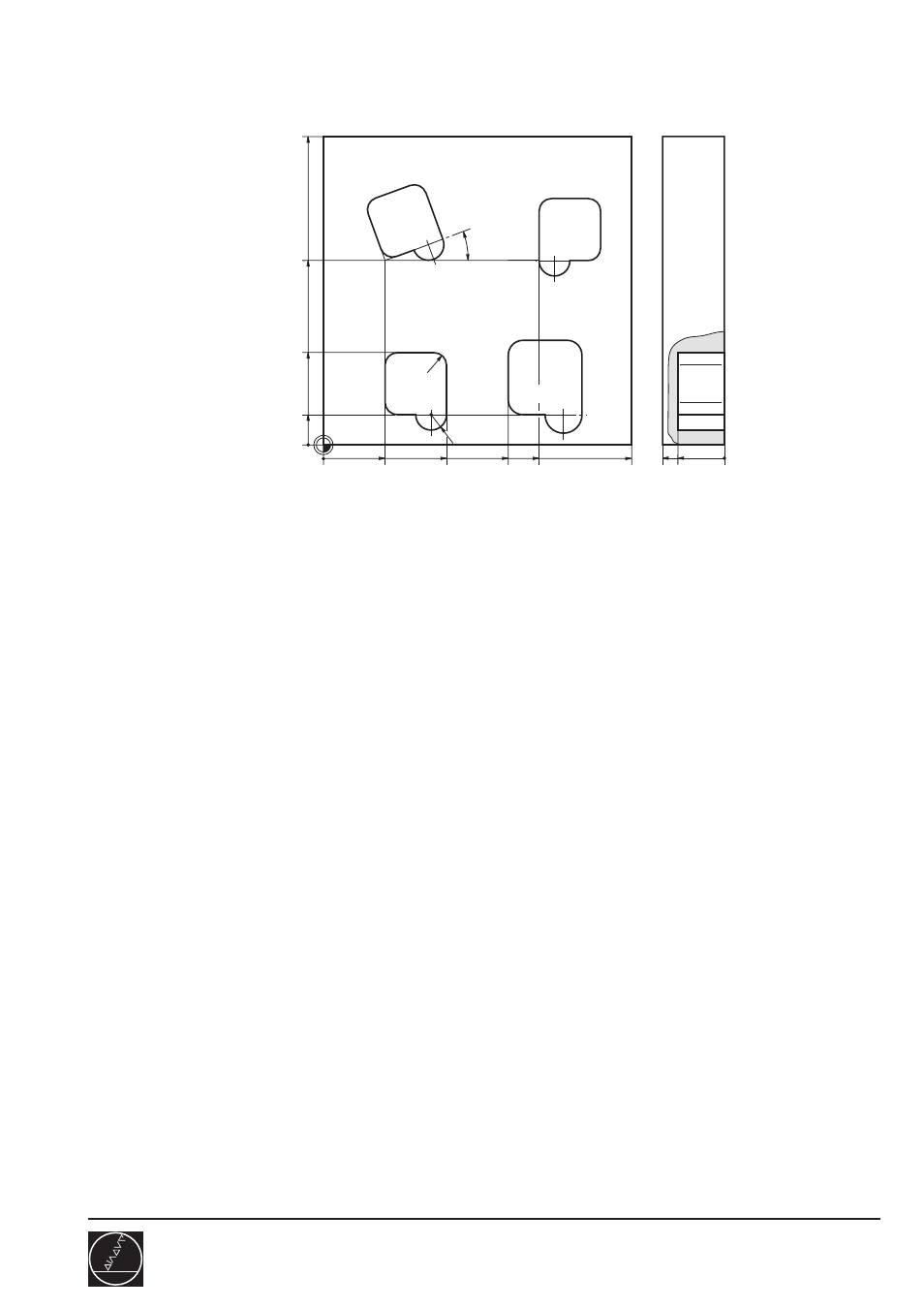

Lösung: Koordinaten-Umrechnungen
232/2
D02
HAUPTPROGRAMM
100
100
0
60
0
60
20
0
15
10
20
➀
➁
MF 1,2
40
30
70
➃
➂
20°
R4
R5
0 BEGIN PGM 232 MM
1 BLK FORM 0.1 Z X+0 Y+0 Z-20
2 BLK FORM 0.2 X+100 Y+100 Z+0
3 TOOL CALL 6 Z S4000 ............................................. R3
4 L Z+100 R0 F MAX M3
5 CYCL DEF 7.0 NULLPUNKT
6 CYCL DEF 7.1 X+20
7 CYCL DEF 7.2 Y+10
8 CALL LBL 1
9 CYCL DEF 7.0 NULLPUNKT
10 CYCL DEF 7.1 X+60
11 CYCL DEF 7.2 Y+10
12 CYCL DEF 11.0 MASSFAKTOR
13 CYCL DEF 11.1 SCL1,2
14 CALL LBL 1
15 CYCL DEF 11.0 MASSFAKTOR
16 CYCL DEF 11.1 SCL1
17 CYCL DEF 7.0 NULLPUNKT
18 CYCL DEF 7.1 X+20
19 CYCL DEF 7.2 Y+60
20 CYCL DEF 10.0 DREHUNG
21 CYCL DEF 10.1 ROT+20
22 CALL LBL 1
23 CYCL DEF 10.0 DREHUNG
24 CYCL DEF 10.1 ROT+0
25 CYCL DEF 7.0 NULLPUNKT
26 CYCL DEF 7.1 X+90
27 CYCL DEF 7.2 Y+60
28 CYCL DEF 8.0 SPIEGELN
29 CYCL DEF 8.1 X
30 CALL LBL 1
