HEIDENHAIN TNC 426 (280 460) Training Basic - Handbuch (Seite 103)

HEIDENHAIN
Lösung:
Differenzkurs

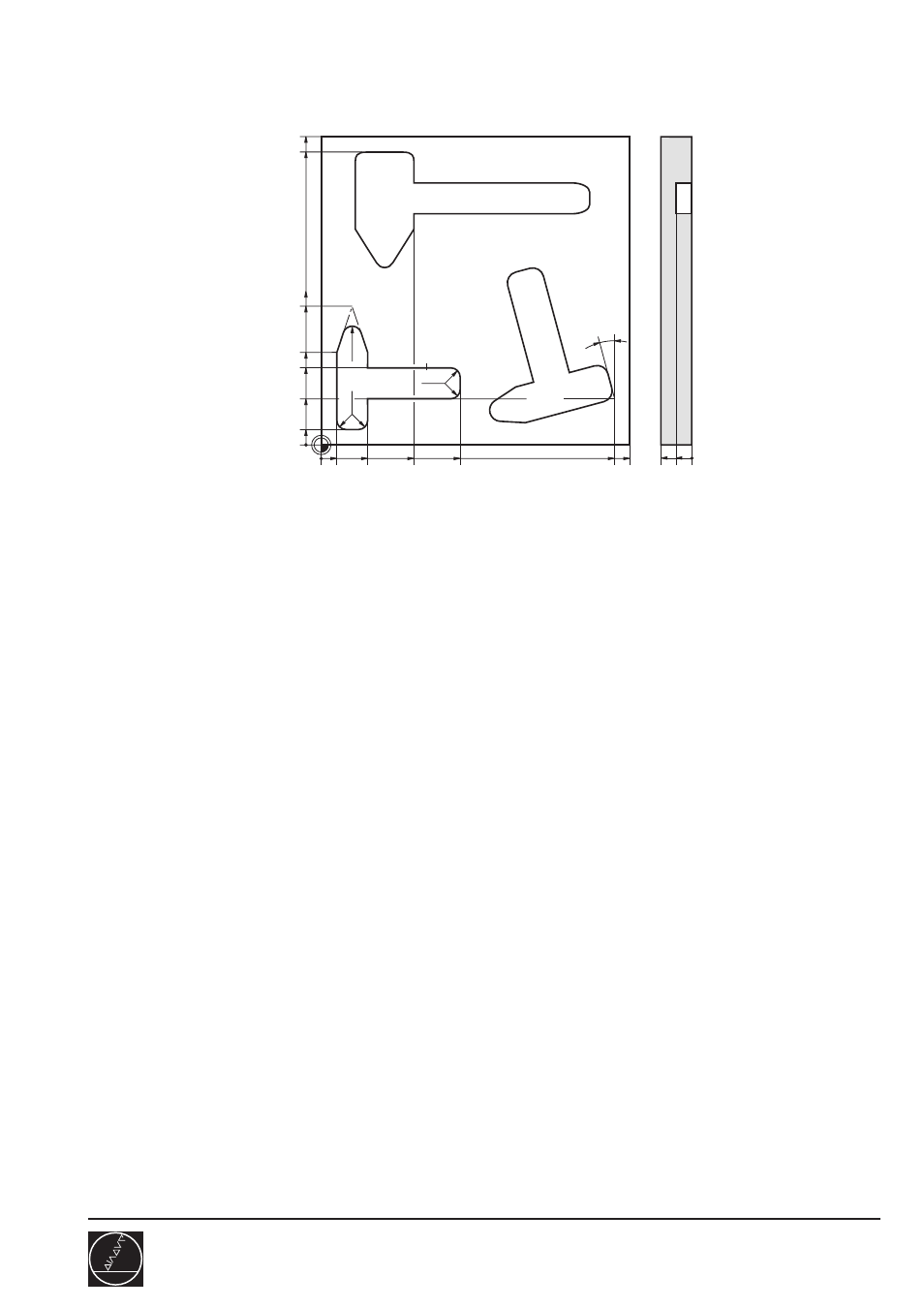

Maßfaktor – Hammer
284/2
D02
100
100
0
0
50
0
10
5
MF = 1,2
MF X = 1,90
95
45
30
25
15
5
95 45 30 15
5
R3
R3
R3
15°
Fräserradius
HAUPTPROGRAMM
0 BEGIN PGM 284 MM
1 BLK FORM 0.1 Z X+0 Y+0 Z-10
2 BLK FORM 0.2 X+100 Y+100 Z+0
3 TOOL CALL 6 Z S2000 ............................................... R3
4 CYCL DEF 7.0 NULLPUNKT
5 CYCL DEF 7.1 X+5
6 CYCL DEF 7.2 Y+5
7 CALL LBL 1
8 CYCL DEF 7.0 NULLPUNKT
9 CYCL DEF 7.1 X+95
10 CYCL DEF 7.2 Y+15
11 CYCL DEF 10.0 DREHUNG
12 CYCL DEF 10.1 ROT+105
13 CALL LBL 1
14 CYCL DEF 10.0 DREHUNG
15 CYCL DEF 10.1 ROT+0
16 CYCL DEF 7.0 NULLPUNKT
17 CYCL DEF 7.1 X+20
18 CYCL DEF 7.2 Y+95
19 CYCL DEF 8.0 SPIEGELN
20 CYCL DEF 8.1 Y
21 CYCL DEF 26.0 MASSFAKTOR ACHSSP.
22 CYCL DEF 26.1 X1,9 Y1 CCX+10 CCY+95
23 CALL LBL 1
24 CYCL DEF 26.0 MASSFAKTOR ACHSSP.
25 CYCL DEF 26.1 X1 Y1 CCX+0 CCY+0
26 CYCL DEF 8.0 SPIEGELN
27 CYCL DEF 8.1
28 CYCL DEF 7.0 NULLPUNKT
29 CYCL DEF 7.1 X+0
30 CYCL DEF 7.2 Y+0
31 L Z+100 R0 F MAX M2
