Lösung:
Differenzkurs
270/3

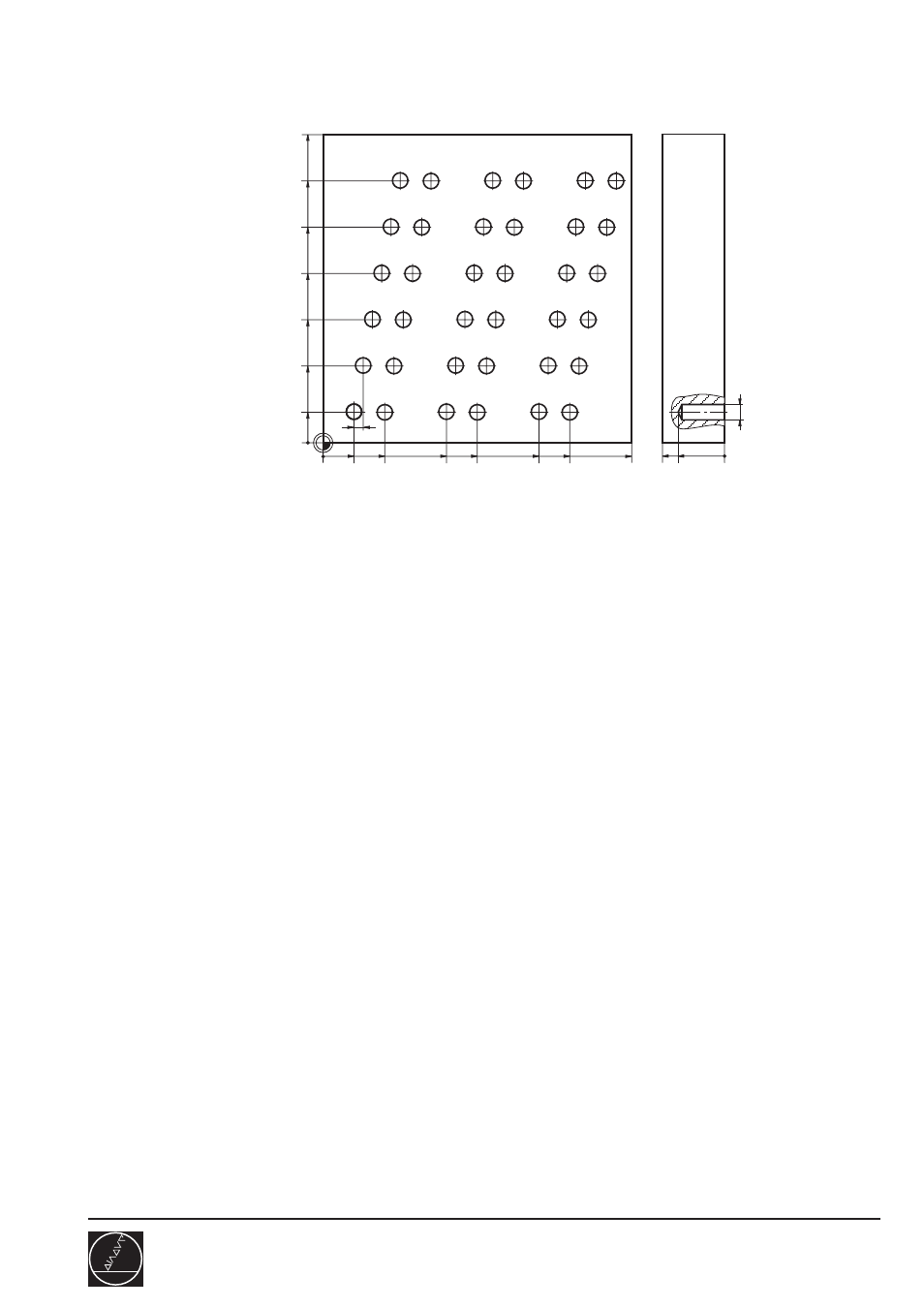

Lochplatte - schräge Reihen
D02
HAUPTPROGRAMM
0 BEGIN PGM 270 MM
1 BLK FORM 0.1 Z X+0 Y+0 Z-20
2 BLK FORM 0.2 X+100 Y+100 Z+0
3 L Z+100 R0 F MAX
4 TOOL CALL 5 Z S4000 ............................................. R2,5
5 CYCL DEF 200 BOHREN
Q200=2 ..................................................................... SICHERHEITS-ABSTAND
Q201=-15 .................................................................. TIEFE
Q206=250 ................................................................. F TIEFENZUSTELLUNG
Q202=8 ..................................................................... ZUSTELL-TIEFE
Q210=0 ..................................................................... VERWEILZEIT OBEN
Q203=+0 ................................................................... KOORDINATE OBERFLAECHE
Q204=20 ................................................................... 2. SICHERHEITS-ABSTAND
6 L X-10 Y+10 R0 F9999 M3
7 L Z+2
8 LBL 1
9 L IX+20 M99
10 LBL 2
11 L IX+3 IY+15 M99
12 CALL LBL 2 REP 4/4
13 L IX+10 M99
14 LBL 3
15 L IX-3 IY-15 M99
16 CALL LBL 3 REP 4/4
17 CALL LBL 1 REP 2/2
18 L Z+100 R0 F MAX M2
19 END PGM 270 MM
100
100
0
0
20
0
10
10 15
25
40
55
70
85
20 40 50 70 80
3
5
