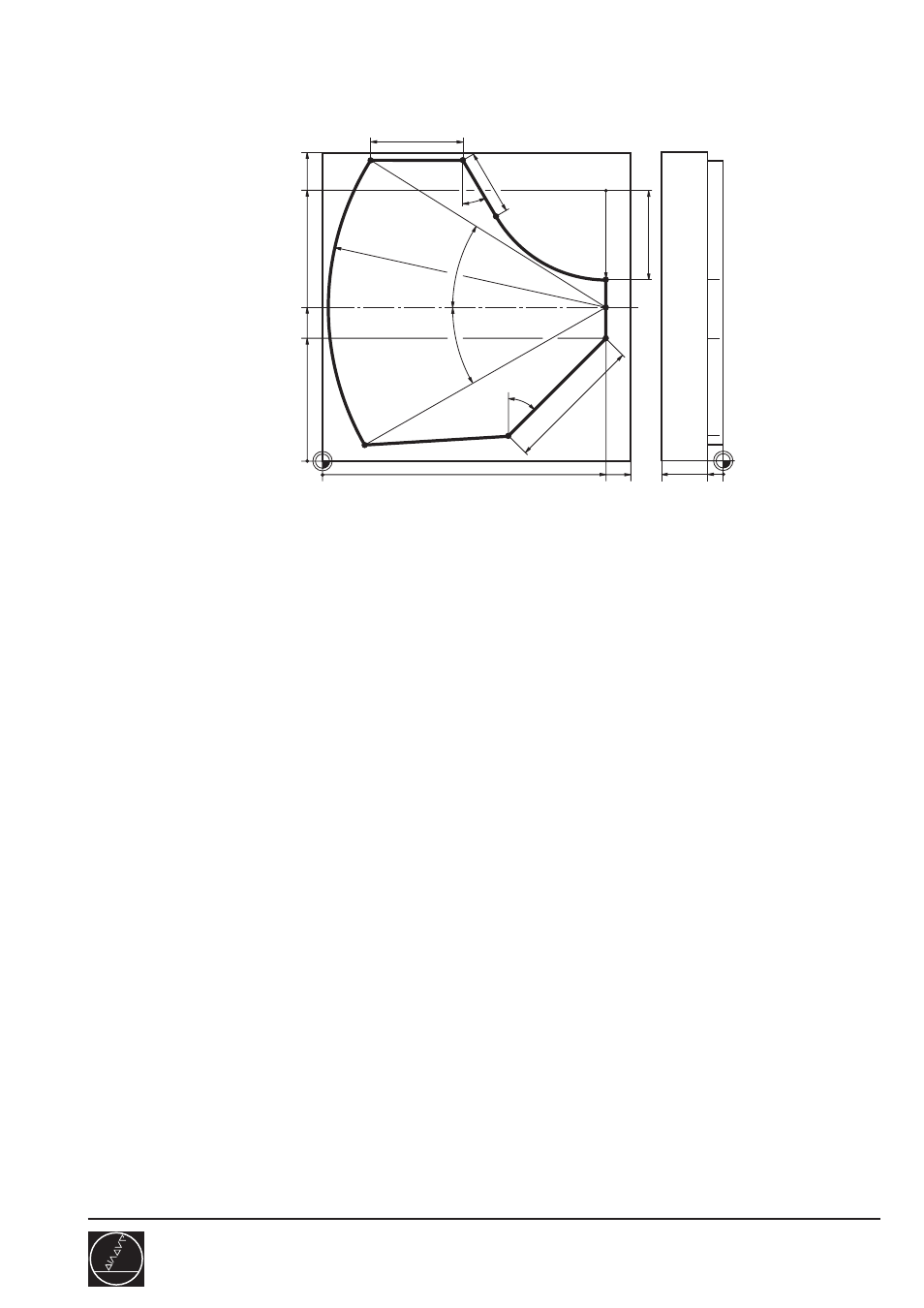

Lösung:
Grundkurs G3
Polarkoordinaten (allgemein)
252/2
D02
Gesamtprogramm
0 BEGIN PGM 252 MM
1 BLK FORM 0.1 Z X+0 Y+0 Z-20
2 BLK FORM 0.2 X+100 Y+100 Z+0
3 TOOL CALL 13 Z S2500 ........................................... R20
4 L Z+100 R0 F MAX
5 L X+130 Y+50 F MAX M3
6 L Z-5 F MAX
7 APPR LCT X+92 Y+50 R5 RL F250 M8 .................... WEICH ANFAHREN/
8 L Y+40
STARTPUNKT-KONTUR
9 CC X+92 Y+40 .......................................................... POL
10 LP PR+45 PA-135 ..................................................... LINERAR-POLAR
11 CC X+92 Y+50
12 LP PR+90 PA-150
13 CP PA+148 DR- ........................................................ ZIRKULAR-POLAR
14 L IX+30 IY+0
15 CC ............................................................................. POL-POSITIONSUEBERNAHME
16 LP PR+21 PA-60
17 CC X+92 Y+88
18 CTP PR+29 PA-90 ..................................................... TANGENTIAL-POLAR
19 L Y+50
20 DEP LCT X+130 Y+50 R5 ......................................... WEICH WEGFAHREN
21 L Z+100 R0 F MAX M2
22 END PGM 252 MM
100
0
92
0
50
0
20
5
100
40
88
P
1
P
2
29
P
8
P
7
30°
21 P 6
P
5
30
R90
P
4
32°
30°
P
3
45°
45
