Lösung:
Grundkurs G3

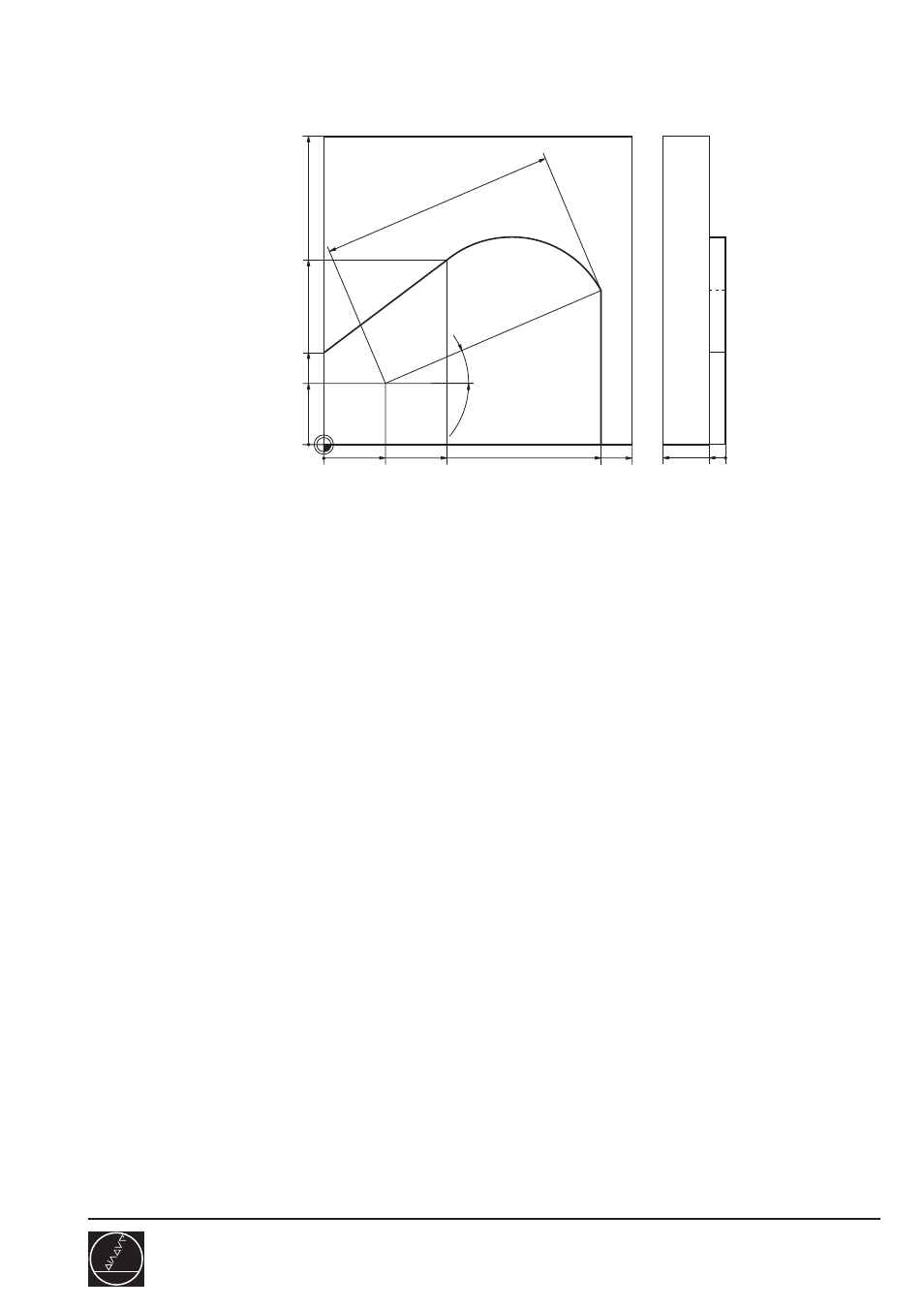

Kreis tangential-polar CTP
Gesamtprogramm
212/2
D02
100
100
0
40
0
20
0 5
60
30
20
20 90
76,158
2
3
,1
9
9
°
0 BEGIN PGM 212 MM
1 BLK FORM 0.1 Z X+0 Y+0 Z-20
2 BLK FORM 0.2 X+100 Y+70 Z+0
3 TOOL CALL 13 Z S4000 ........................................... R20
4 L Z+100 R0 F MAX
5 L X-30 Y-30 R0 F MAX M3 ...................................... HILFSPUNKT
6 L Z-5 F MAX
7 APPR LT X+0 Y+0 LEN5 RL F250 M8 ...................... WEICH ANFAHREN/
8 L X+0 Y+30
STARTPUNKT-KONTUR
9 L X+40 Y+60
10 CC Y+20 X+20 .......................................................... POL
11 CTP PR+76,158 PA+23,199 ...................................... KREISBAHN TANGENTIAL POLAR
12 L Y+0
13 DEP LT LEN5 ............................................................ WEICH WEGFAHREN
14 L Z+100 R0 F MAX M2
15 END PGM 212 MM
