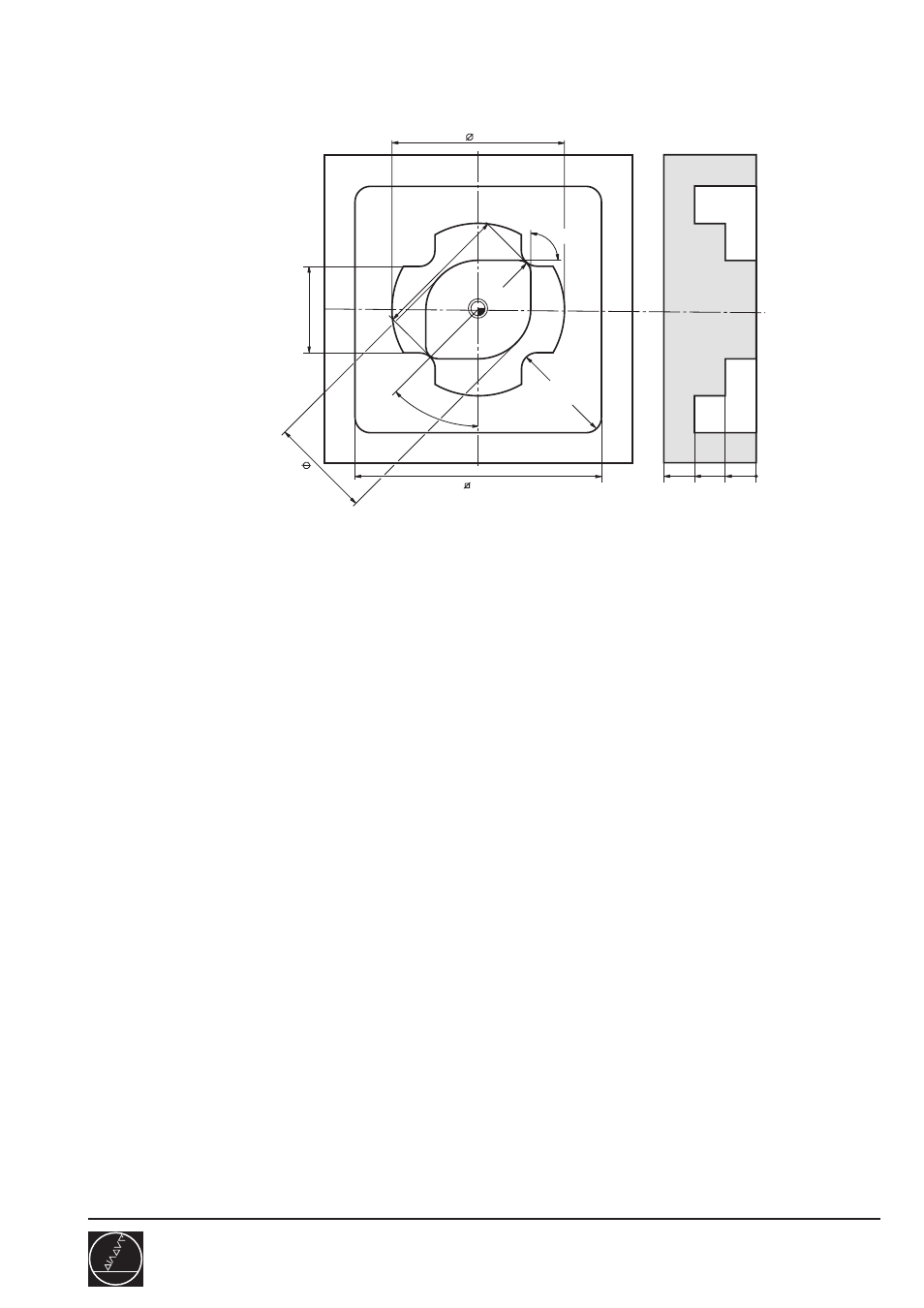

Differenzkurs
Lösung: FK-SL-Kombination
273/2
D02
30
0
45°
20
32
R4 44
28
R5
80
56
R5
88,15°
10
HAUPTPROGRAMM
Freifahren, Ende
0 BEGIN PGM 273 MM
1 BLK FORM 0.1 Z X-50 Y-50 Z-30
2 BLK FORM 0.2 X+50 Y+50 Z+0
3 TOOL CALL 6 Z S1500 ............................................. R3
4 CYCL DEF 14.0 KONTUR
5 CYCL DEF 14.1 KONTURLABEL 1 /2
6 CYCL DEF 20.0 KONTUR-DATEN
Q1=-10 ..................................................................... FRAESTIEFE
Q2=1 ......................................................................... BAHN-UEBERLAPPUNG
Q3=+1 ...................................................................... AUFMASS SEITE
Q4=+1 ...................................................................... AUFMASS TIEFE
Q5=+0 ...................................................................... KOORDINATE OBERFLAECHE
Q6=2 ......................................................................... SICHERHEITS-ABSTAND
Q7=+20 .................................................................... SICHERE HOEHE
Q8=0 ......................................................................... RUNDUNGSRADIUS
Q9=-1 ....................................................................... DREHSINN
7 CALL LBL 10
8 CYCL DEF 14.0 KONTUR
9 CYCL DEF 14.1 KONTURLABEL 1 /3
10 FN 0: Q5 = -10
11 CALL LBL 10
12 L Z+100 R0 F MAX M6
13 TOOL CALL 4 Z S2000 ............................................. R2
14 CYCL DEF 14.0 KONTUR
15 CYCL DEF 14.1 KONTURLABEL 1 /3
16 CALL LBL 11
17 CYCL DEF 14.0 KONTUR
18 CYCL DEF 14.1 KONTURLABEL 1 /2
19 FN 0: Q5 = +0
20 CALL LBL 11
21 L Z+100 R0 F MAX M2
