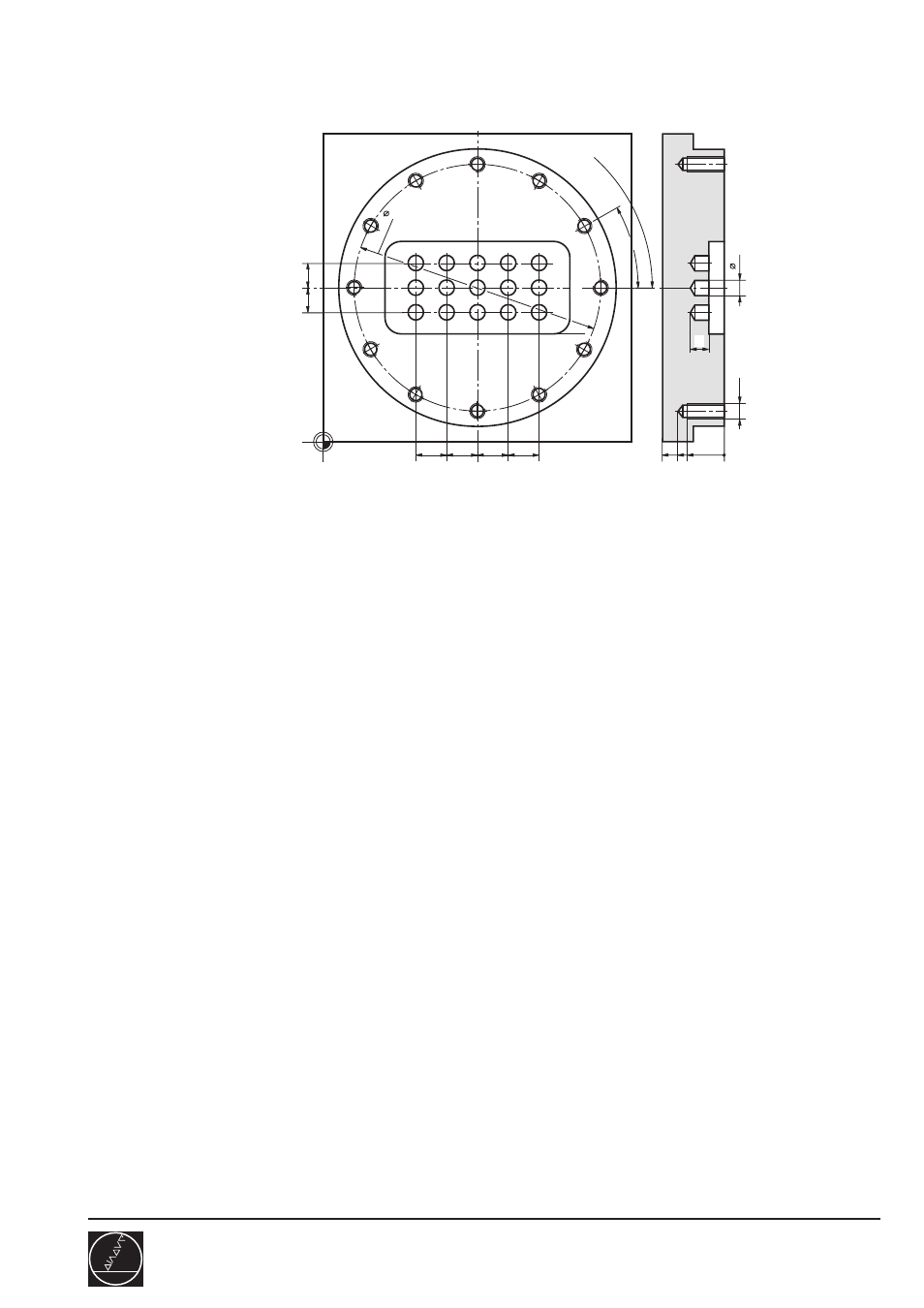

Lösung:
Differenzkurs
Matrize II
266/3
D02
HAUPTPROGRAMM
10
8
20
0
15
10 10 10
8
30°
12 x 30°
12
6
M5
5
80
0 BEGIN PGM 266 MM
1 BLK FORM 0.1 Z X+0 Y+0 Z-20
2 BLK FORM 0.2 X+100 Y+100 Z+0
3 CALL PGM 26501 .................................................... HILFSPROGRAMM
4 TOOL CALL 5 Z S2000 ............................................. R2,5
5 L Z+100 M3
6 CYCL DEF 200 BOHREN
Q200=2 ..................................................................... SICHERHEITS-ABSTAND
Q201=-6 .................................................................... TIEFE
Q206=200 ................................................................. F TIEFENZUSTELLUNG
Q202=6 ..................................................................... ZUSTELL-TIEFE
Q210=0 ..................................................................... VERWEILZEIT OBEN
Q203=-5 .................................................................... KOORDINATE OBERFLAECHE
Q204=20 ................................................................... 2. SICHERHEITS-ABSTAND
7 CALL LBL 1
8 L Z+100 R0 F9999 M6
9 TOOL CALL 4 Z S2000 ............................................. R2
10 L Z+100 M3
11 CYCL DEF 1.0 TIEFBOHREN
12 CYCL DEF 1.1 ABST 2
13 CYCL DEF 1.2 TIEFE -2,8
14 CYCL DEF 1.3 ZUSTLG 2,8
15 CYCL DEF 1.4 V.ZEIT 0
16 CYCL DEF 1.5 F200
17 CALL LBL 2
18 L Z+100 M6
19 TOOL CALL 5 Z S1500 ............................................. R2,5
20 L Z+100 M3
21 CYCL DEF 200 BOHREN
Q200=2 ..................................................................... SICHERHEITS-ABSTAND
Q201=-15 ................................................................. TIEFE
Q206=200 ................................................................. F TIEFENZUSTELLUNG
Q202=8 ..................................................................... ZUSTELL-TIEFE
Q210=0 ..................................................................... VERWEILZEIT OBEN
Q203=+0 ................................................................... KOORDINATE OBERFLAECHE
Q204=20 ................................................................... 2. SICHERHEITS-ABSTAND
22 CALL LBL 2
23 L Z+100 M6
