Lösung:
Differenzkurs

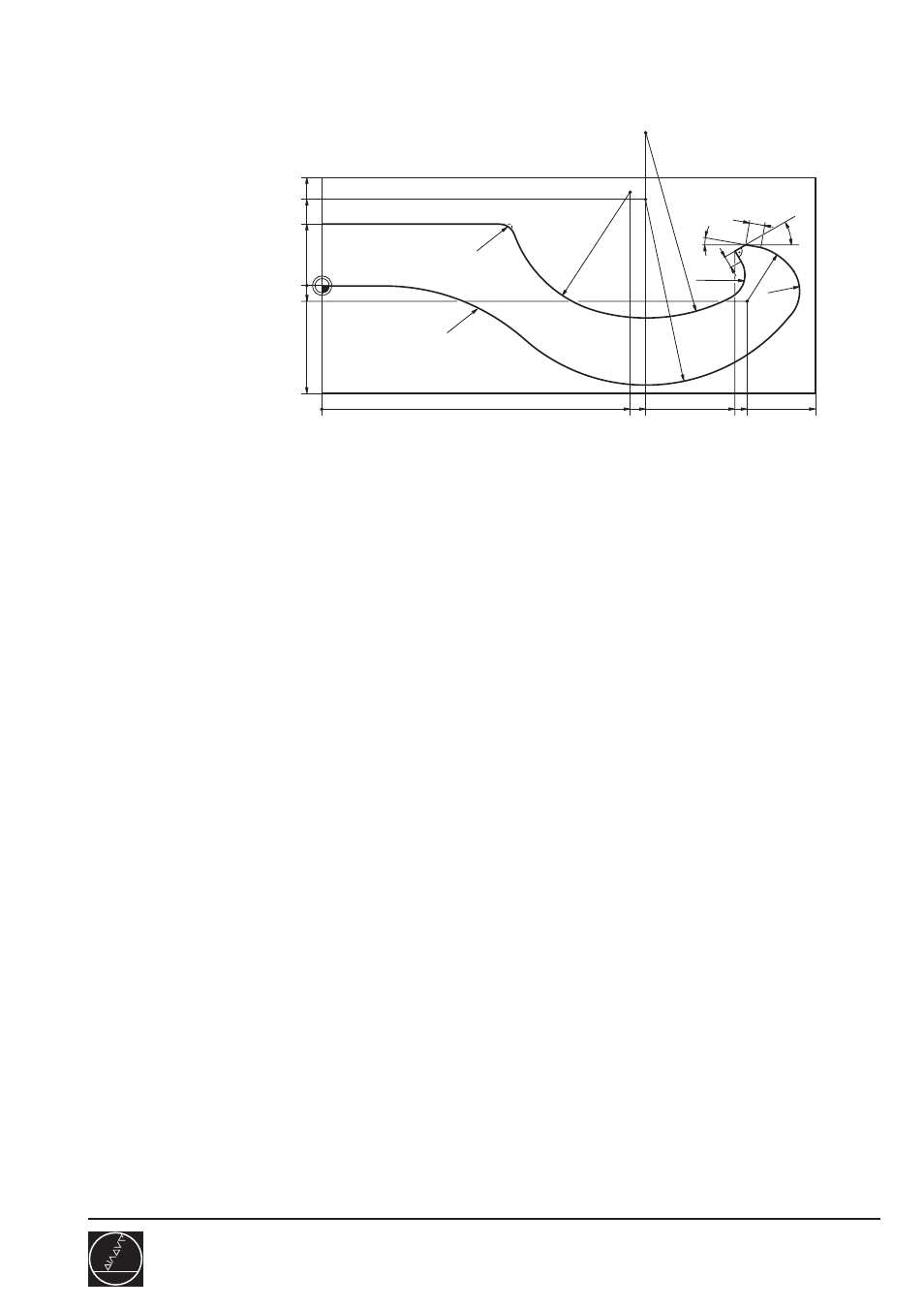

FK Hakenschlüssel
295/2
D02
138
0
35
0
-35
160
20
28
134 100 105
-5
R70
R5
R8
4
Tiefe 5 mm
R40
R60
R60 R18
R12
30°
5
10°
Gesamtprogramm
0 BEGIN PGM 295 MM
1 BLK FORM 0.1 Z X+0 Y-35 Z-20
2 BLK FORM 0.2 X+160 Y+35 Z+0
3 TOOL CALL 8 Z S4000 ............................................. R5
4 L Z+100 R0 F MAX
5 L X-10 Y-10 R0 F MAX
6 L Z-5 R0 F MAX M3
7 APPR LCT X+0 Y+0 R2 RR F400
8 FL AN+0
9 FCT DR- R70
10 FCT DR+ R60 CCX+105 CCY+28
11 FSELECT 2
12 FCT DR+ R12
13 FCT DR+ R18 CCX+138 CCY-5
14 FLT LEN5 AN+170
15 FL X+134 AN-150
16 FSELECT 1
17 FL LEN4 IAN-90
18 FCT DR- R8
19 FCT DR- R60 CCX+105
20 FSELECT 1
21 FCT DR- R40 CCX+100
22 FCT Y+20 DR+ R5
23 FSELECT 2
24 FLT X+0 AN+180
25 FSELECT 1
26 L Y+0
27 DEP LCT X-10 Y-10 R2
28 L Z+100 R0 FMAX M2
29 END PGM 295 MM
