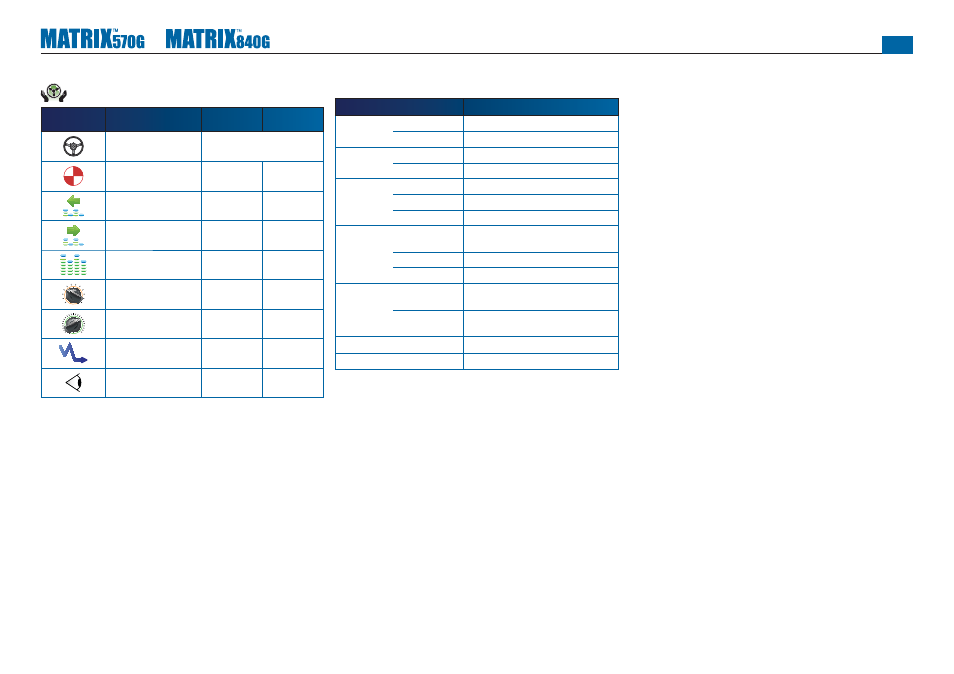

Einstellungen FieldPilot
Symbol
Beschreibung
Werkseinstel-
lung
Einstellbereich
Lenkautomatik FieldPilot
Ein
Ventilfrequenz
175
1 - 5000
Mindestschaltdauer links
0,0
0,0 - 50,0
Mindestschaltdauer rechts 0,0
0,0 - 50,0
Maximale Schaltdauer
100
25 - 100
Grobeinstellung Lenkung
25,0
1,0 - 100,0
Feineinstellung Lenkung
25,0
1,0 - 100,0
Totzone
1
1 - 10
Vorausschau
4,0
0,0 - 10,0
ANHANG D, GERÄTESPEZIFIKATIONEN
Abmessungen
Matrix 570G
161,5 mm x 149,1 mm x 58,4 mm
Matrix 840G
27,0 x 18,0 x 6,0 cm
Gewicht
Matrix 570G
0,794 kg
Matrix 840G
1,06 kg
Anschlüsse
PWR/CAN
Conxall 8-polig
Kamera
Conxall 5-polig
Geschw./Status
Conxall 4-/8-polig
Temperatur/
Luftfeuchte
Einlagerung
-10 bis +70°C
Betrieb
0 bis +50°C
Luftfeuchte
90% nicht kondensierend
Display
Matrix 570G
320 x 240 Aufl ösung
14,5 cm
Matrix 840G
800 x 600 Aufl ösung
21,3 cm
Eingang/Ausgang
USB 2,0
Stromversorgung
< 9 Watt bei 12 VDC
