Guntermann & Drunck GmbH CATCenter Installation Guide

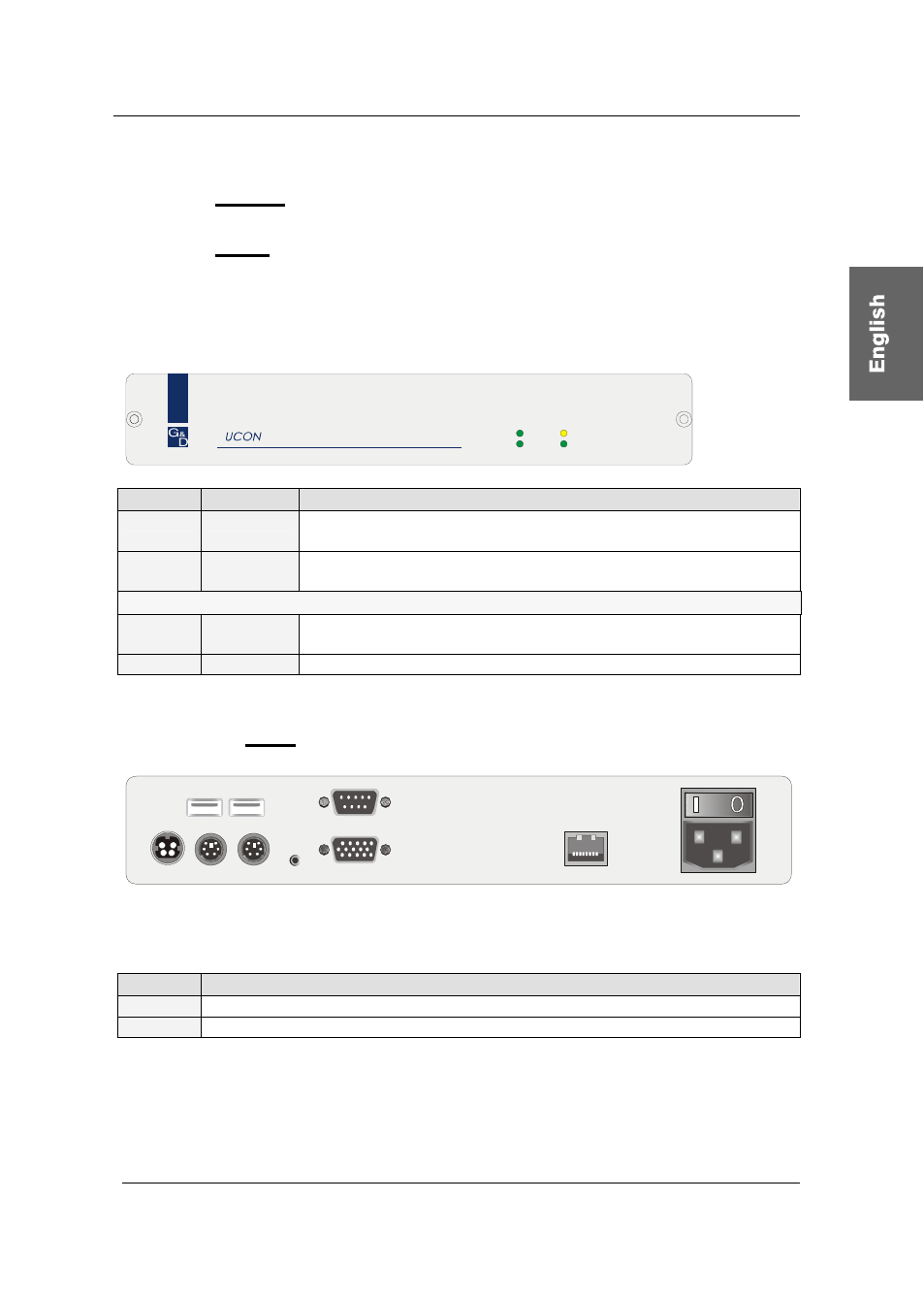

4.2 UCON
4.2.1 Front
After connecting the power cable, turn on the UCON using the toggle switch at
the back of the device. The LEDs on the front of the UCON have the following
meaning:
Red.
Main
Active
Status
Remote Power
UCON
POWER Redundant Illuminated if a redundant power supply is connected and is
supplying 12V.
Main Illuminated if the main power supply is connected and supplying
power.
Remote Active Illuminated when a keyboard has been initialized.
Flashes when no keyboard has been initialized.
Status Always illuminated.
4.2.2 Back
Mouse Keyb.
10
0
-2
4
0
V
/6
0-
50
Hz
0.
2-
0
.1A
USB
Keyb. Mouse PS/2 Monitor
LED out
Transmission Service 12VDC/800mA
Red. Power
There are LEDs for the RJ45 interface at the back of the device.
These LEDs have the following meaning:
CPU LEDs
Yellow Port is currently in use by a user
Green Connection has been established to the CATCenter.
Page 31
