Guntermann & Drunck GmbH CATCenter Installation Guide

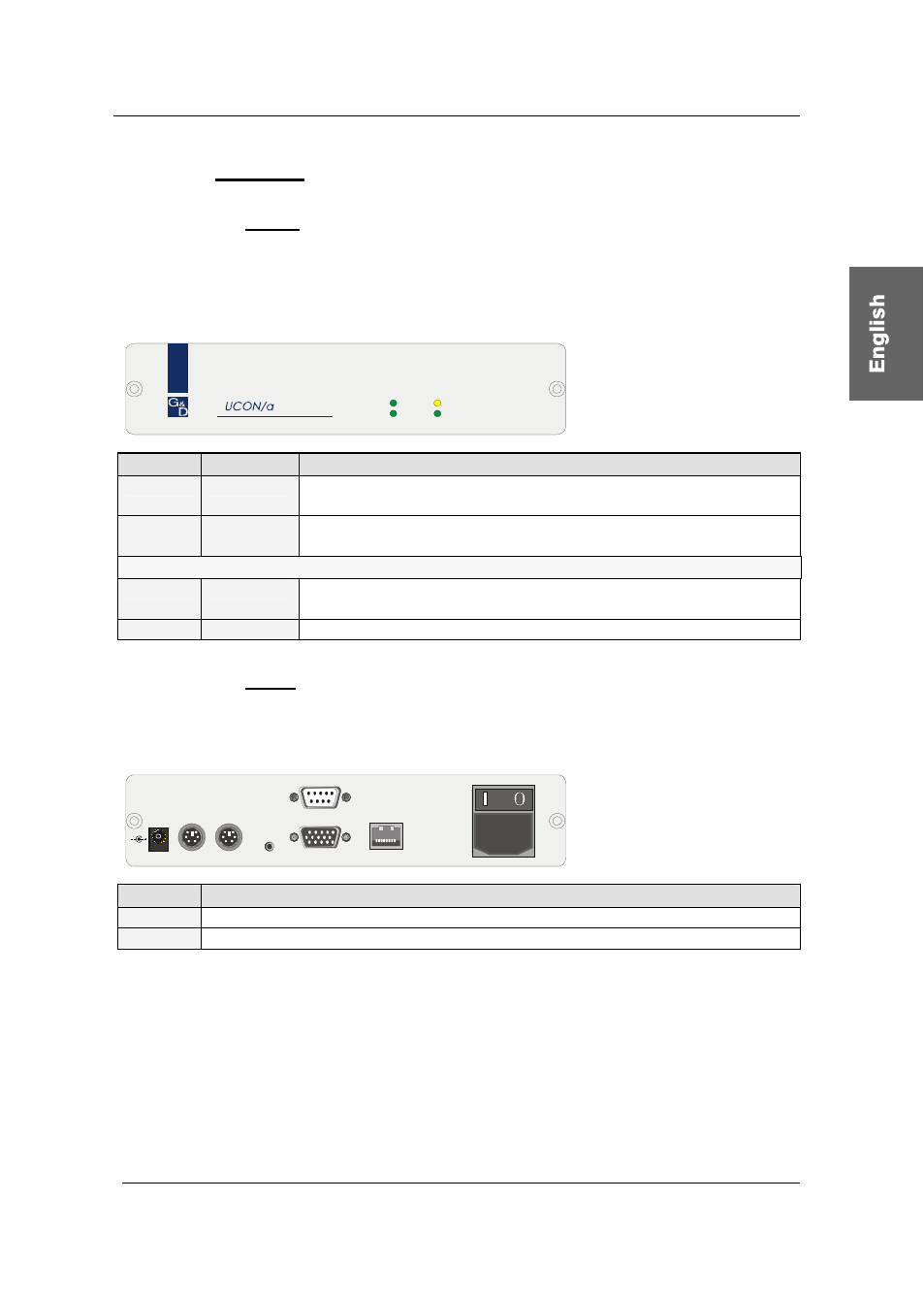

4.4 UCON-a
4.4.1 Front
After connecting the power cable, turn on the UCON-a using the toggle switch
at the back of the device. The LEDs on the front of the UCON-a have the
following meaning:
Red.
Main
Active
Status
Remote Power
UCON-a
POWER Redundant Illuminated if a redundant power supply is connected and is
supplying 5V.
Main Illuminated if the main power supply is connected and supplying
power.
Remote Active Illuminated when a keyboard has been initialized.
Flashes when no keyboard has been initialized.
Status Always illuminated when the CATCenter is operational.
4.4.2 Back
There are LEDs for the RJ45 interface at the back of the device.
These LEDs have the following meaning:
Link
Keyb. Mouse PS/2
5V DC/5A
Monitor Red. Power
Main Power
AC 100-240 V, 47-63 Hz
Service Transmission
CPU LEDs
Yellow Port is currently in use by a user
Green Connection has been established to the CATCenter.
Page 33
