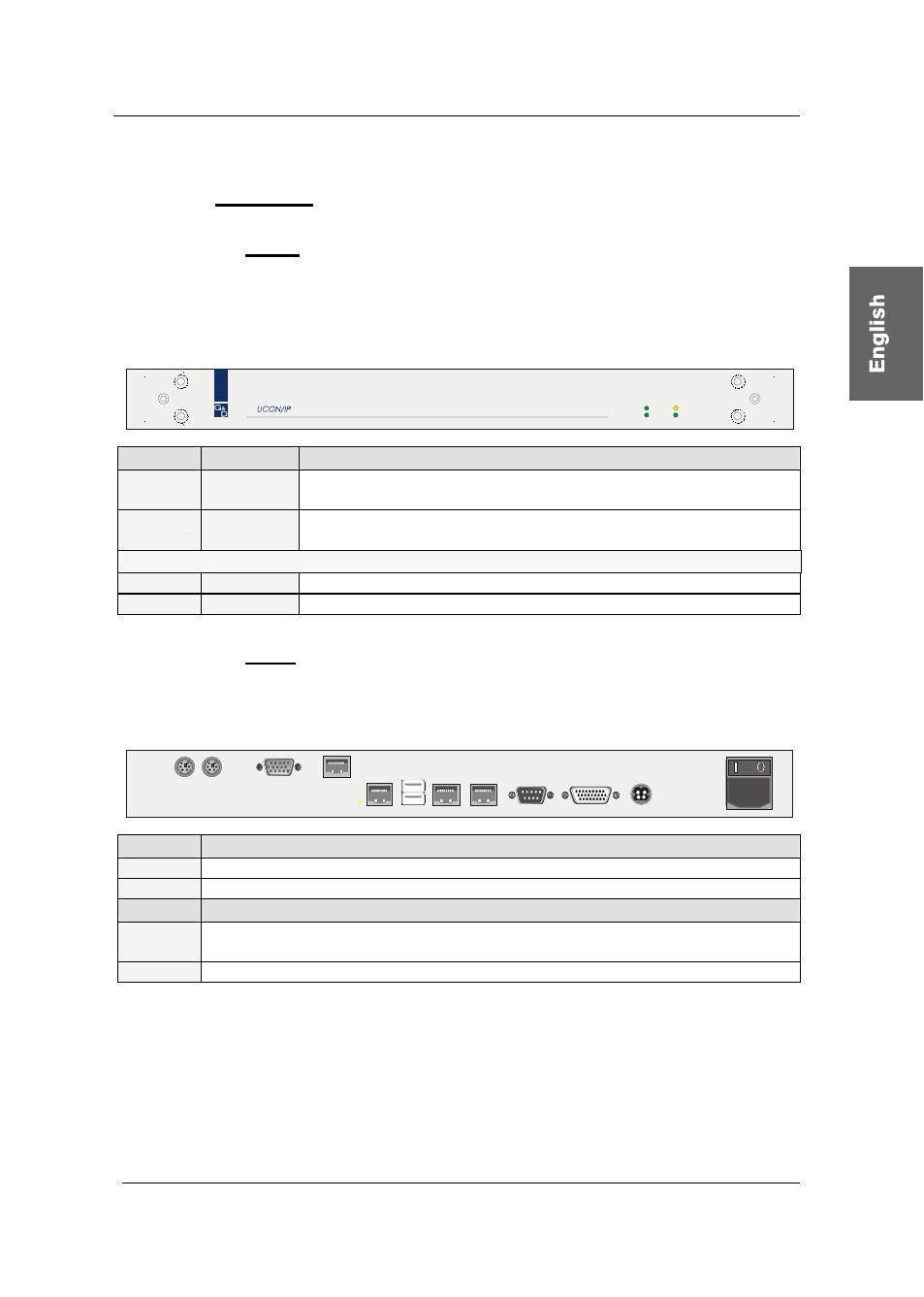

4.6 UCON-IP
4.6.1 Front
After connecting the power cable, turn on the UCON-IP using the toggle switch
at the back of the device. The LEDs on the front of the UCON-IP have the
following meaning:
Red.
Main
Active
Status
System Power
UCON-IP
POWER Redundant Illuminated if a redundant power supply is connected and is
supplying 12V.
Main Illuminated if the main power supply is connected and supplying
power.
Remote Active Illuminated when a session has been initiated on the UCON-IP.
Status Always illuminated when the CATCenter is operational.
4.6.2 Back
There are LEDs for transmission and Ethernet RJ45 interfaces at the back of
the device. These LEDs have the following meaning:
12V DC/5A
USB
Keyb. Mouse PS/2
Ethernet A Ethernet B
Service
ISDN
COM 1 Red. Power
Main Power
AC 100-240 V, 47-63 Hz
Transmission Monitor
Transmission LEDs
Yellow Port is currently in use by a user
Green Connection has been established to the CATCenter.
Ethernet LEDs
Yellow Illuminated constantly for a full-duplex connection; flashes for a half-duplex
connection (collision)
Green Indicates the connection status. Flashes during activity.
