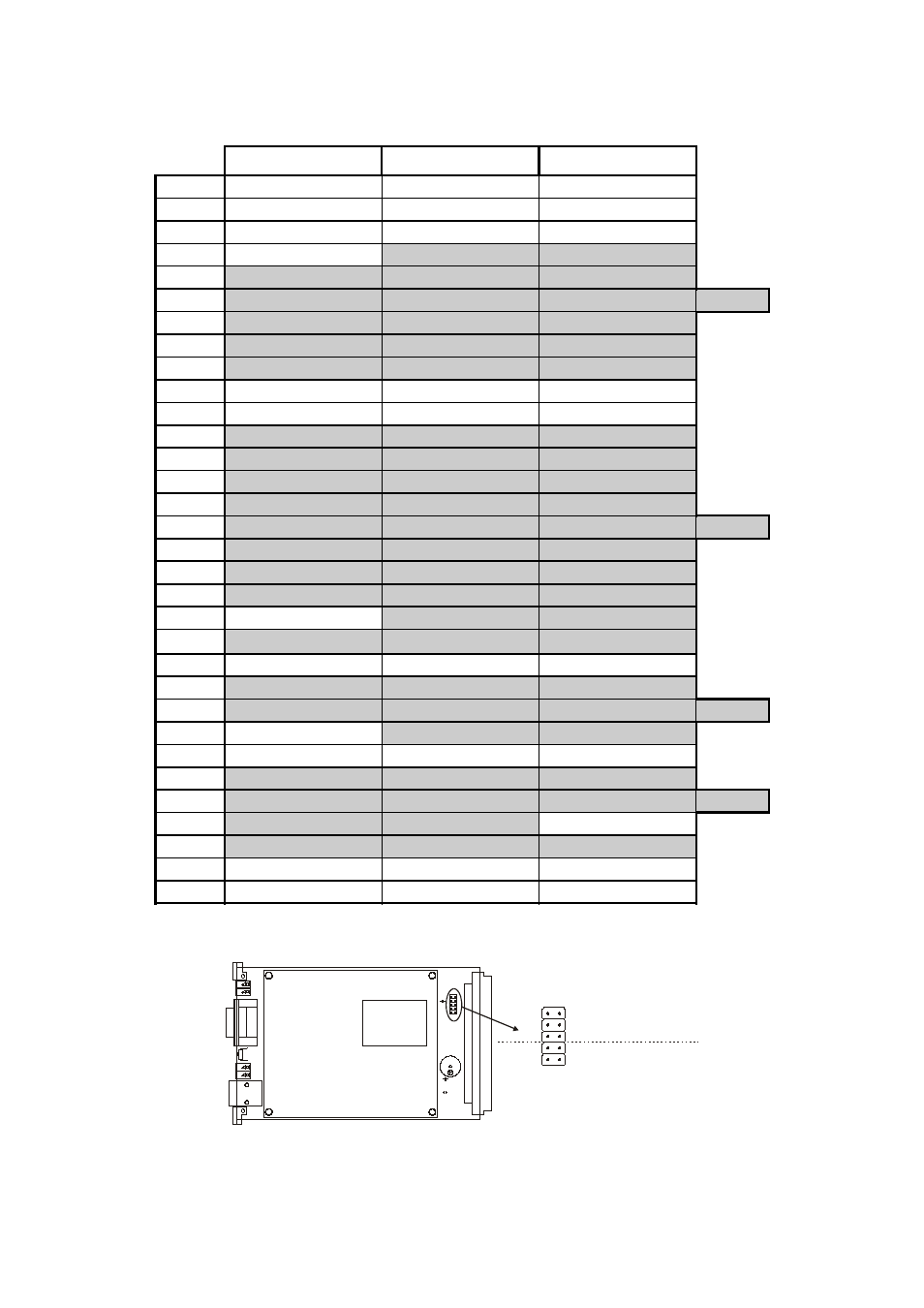

Steckerbelegung
c
b
a
1
VCC in (+5V)
VCC in (+5V)
VCC in (+5V)
2
VCC in (+5V)
VCC in (+5V)
VCC in (+5V)
3
GND
GND
GND
4
PPS in
/AFD out
/STB out
5
/ERR in
/SLIN out
/INIT out
6
D5 in/out
D6 in/out
D7 in/out
LPT1
7
D2 in/out
D3 in/out
D4 in/out
8
/ACK in
D0 in/out
D1 in/out
9
/SLCT in
PE in
/BUSY in
10
GND
GND
GND
11
GND
GND
GND
12
DIAG_S in/out
/CS1 out
/CS3 out
13
A0 out
A1 out
A2 out
14
RDY in
/AK out
INTRQ in
15
DRQ in
/IOW out
/IOR out
16
D15 in/out
D0 in/out
D14 in/out
Primary IDE
17
D1 in/out
D13 in/out
D2 in/out
18
D12 in/out
D3 in/out
D11 in/out
19
D4 in/out
D10 in/out
D5 in/out
20
D9 in/out
D7 in/out
21
D6 in/out
D8 in/out
/HDRST out
22
GND
GND
GND
23
Rx+ in
Tx- out
Tx+ out
24
Rx- in
LED LINK out
LED ACTIVITY out
Ethernet
25
LED SPEED 100M out
LED SPEED10M out
26
GND
GND
GND
27
RxD4 in
TxD4 out
DCD4 in
28
RxD3 in
TxD3 out
DCD3 in
RS232
29
RxD2 in
TxD2 out
30
RxD1 in
TxD1 out
DCD1 in
31
GND
GND
GND
32
GND
GND
GND
Belegung der Stiftleiste (VGA, Tastatur)
R
G
B
+5V
KBDAT
HSYNC
VSYNC
GND
GND
KBCLK
Tastatur
VGA
