Technische Daten Netzgerät PULS AP 336-505
EINGANGS-
SPANNUNG:
105 ... 300 V DC, max. 0.7 A
85 ... 265 V AC, 47... 63 Hz, max. 1.5 A
SICHERUNG:
Elektronisch
AUSGANGS-
SPANNUNGEN:
Vout1:
5.15 V / 2 A
Vout2:
+12 V / 1 A
Vout3:
-12 V / 1 A
Mindestbelastung des 5 V Ausgangs bei einer Regelgenauigkeit
der 12 V Ausgänge von max. 4 %: 100 mA
GESAMT-
BELASTUNG:
Max. 35 Watt
STECK-
VERBINDER:
Mischleiste nach DIN 41612, Typ H 15 M,
Schutzkontakt voreilend
BAUFORM:
19"-Teileinschub 3 HE / 9 TE (128 mm hoch x 45 mm breit),
DIN 41 494, Teil 5
EMV-konform nach EN 60950

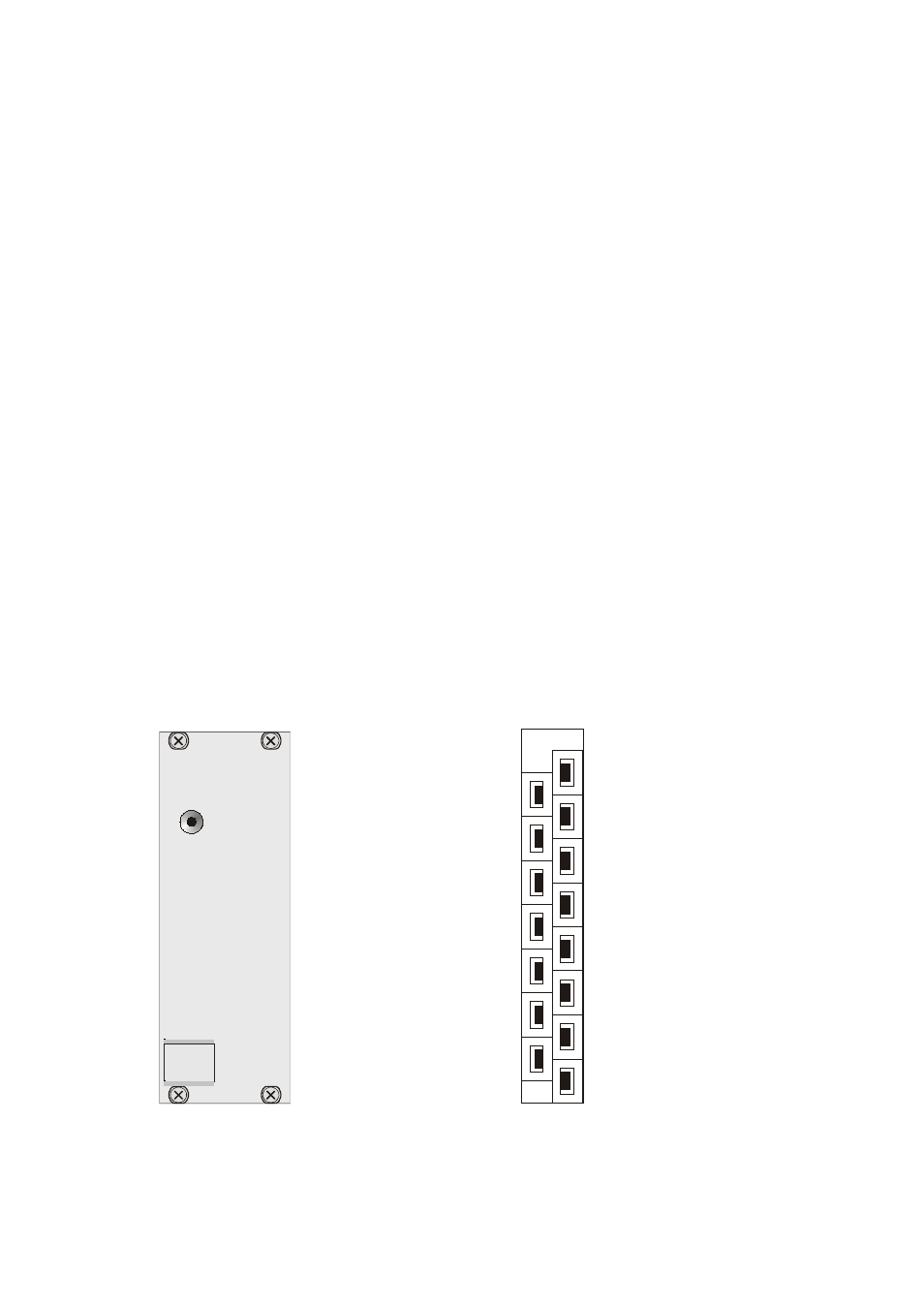

Frontansicht und Steckerbelegung
d z
32
30
28
26
24
22
20
18
16
14
12
10
8
6
4
GND 1
+Vout 1
+Vout 1
GND 1
GND 2/3
NC
NC
Pfl
Vout 2
Vout 3
GND 2/3
NC
N (GNDin)
L (Vin)
PE
128
