Powermax125 Wartungshandbuch 808071
307
11 – Teile

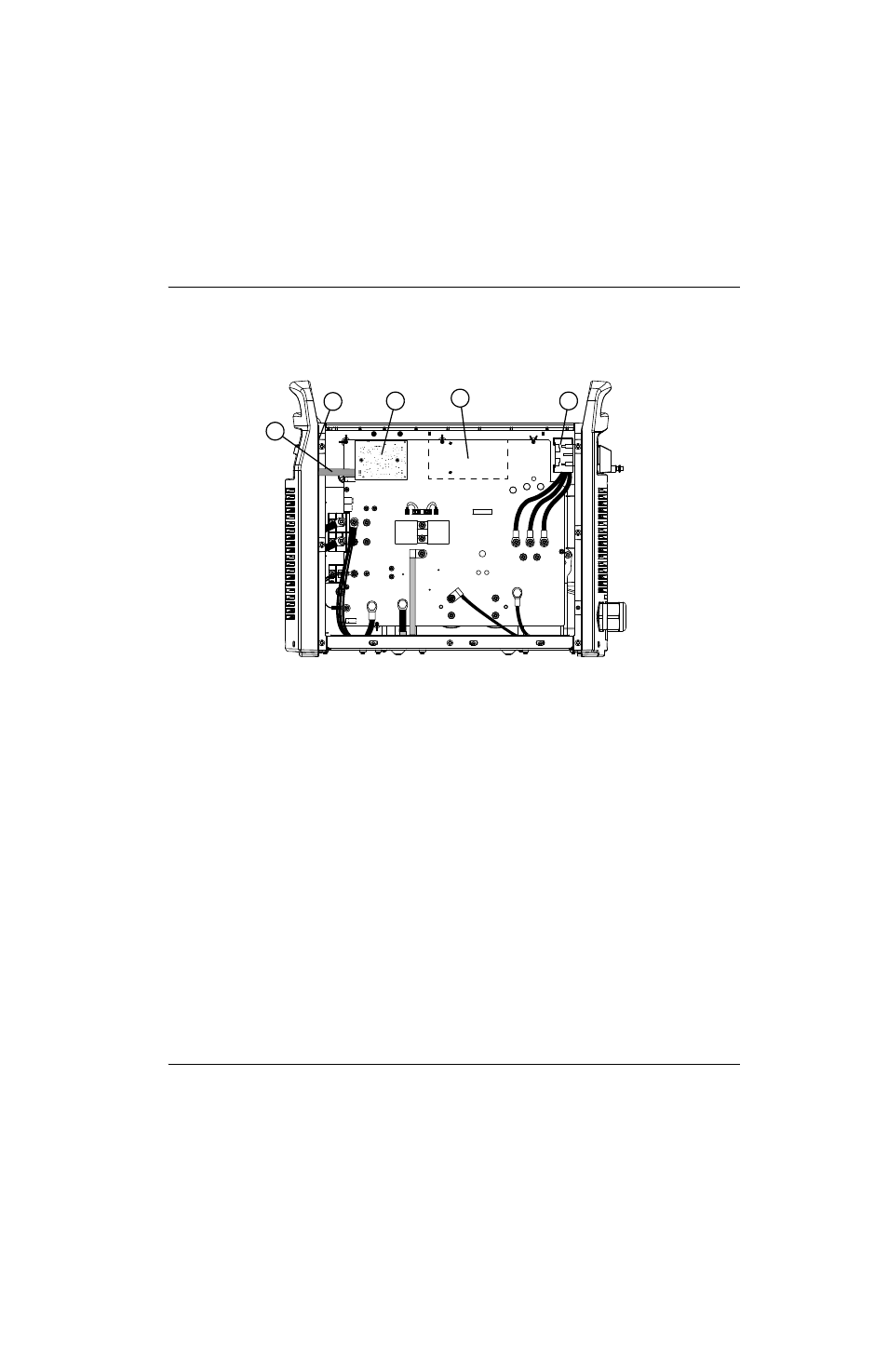

Innen, Leistungsplatinenseite
480 V, 600 V CSA
Teile-Nummer
Beschreibung
1
428068
Set: Powermax65/85/105/125 Flachbandkabel
2
228657
Set: Powermax65/105/125 Steuerplatine (141100)
3
428119
Set: Powermax125 DSP-Platine (141316)
4
428123
Set: Powermax125 Leistungsplatine 480 V CSA (141204)
4
428124
Set: Powermax125 Leistungsplatine 600 V CSA (141290)
5
228880
Set: Powermax105/125 Netzschalter 400 V CE/380 V CCC/480 V, 600 V CSA
428114
Set: Powermax125 Komponentenabsperrung
J22
J21
J20
J19
J27
WORK
LEAD
J26
J25
+
_
+
_
RED
J18
ORG
J17
RED
J32
J11
B
R
J28
C152
C151
TP7
TP9
TP8
W
R
B
1
2
3
4
5
