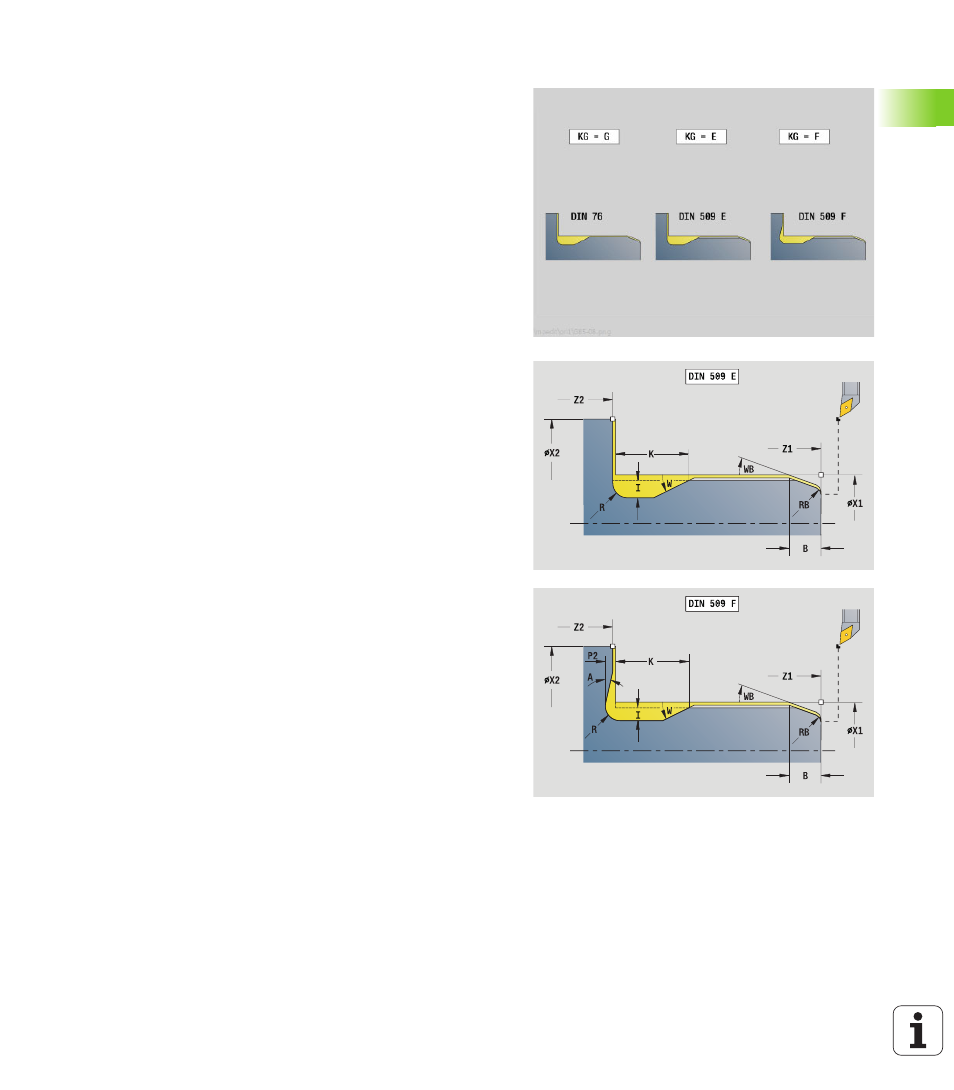

Unit „Freistich Form E, F, DIN76“
Die Unit fertigt den in KG definierten Freistich und die anschließende
Planfläche. Der Zylinderanschnitt wird bearbeitet, wenn Sie einen der
Parameter Anschnittlänge oder Anschnittradius angeben.
Unitname: G85x_DIN_E_F_G / Zyklus: G85 (siehe Seite 302)
Zugriff zur Technologie-Datenbank:
Bearbeitungsart: Schlichten
beeinflusste Parameter: F, S, E
Formular Übersicht
KG
Art des Freistichs
E: DIN 509 Form E; Zyklus G851 (siehe Seite 304)
F: DIN 509 Form F; Zyklus G852 (siehe Seite 305)
G: DIN 76 Form G (Gewindefreistich); Zyklus G853 (siehe
Seite 306)
X1, Z1
Anfangspunkt Kontur (X1: Durchmessermaß)
X2, Z2
Endpunkt Kontur (X2: Durchmessermaß)
App
Anfahren siehe Seite 61
Formular Form E
I
Freistichtiefe (default: Normtabelle)
K
Freistichlänge (default: Normtabelle)
W
Freistichwinkel (default: Normtabelle 15°)
R
Freistichradius (default: Normtabelle)
H
Abfahrart
0: zum Startpunkt
1: Ende Planfläche
Formular Form F
I
Freistichtiefe (default: Normtabelle)
K
Freistichlänge (default: Normtabelle)
W
Freistichwinkel (default: Normtabelle 15°)
R
Freistichradius (default: Normtabelle)
P2
Plantiefe (default: Normtabelle)
A
Planwinkel (default: Normtabelle 8°)
H
Abfahrart
0: zum Startpunkt
1: Ende Planfläche
