Guntermann & Drunck GmbH Operating Instructions
CATVision (MC)

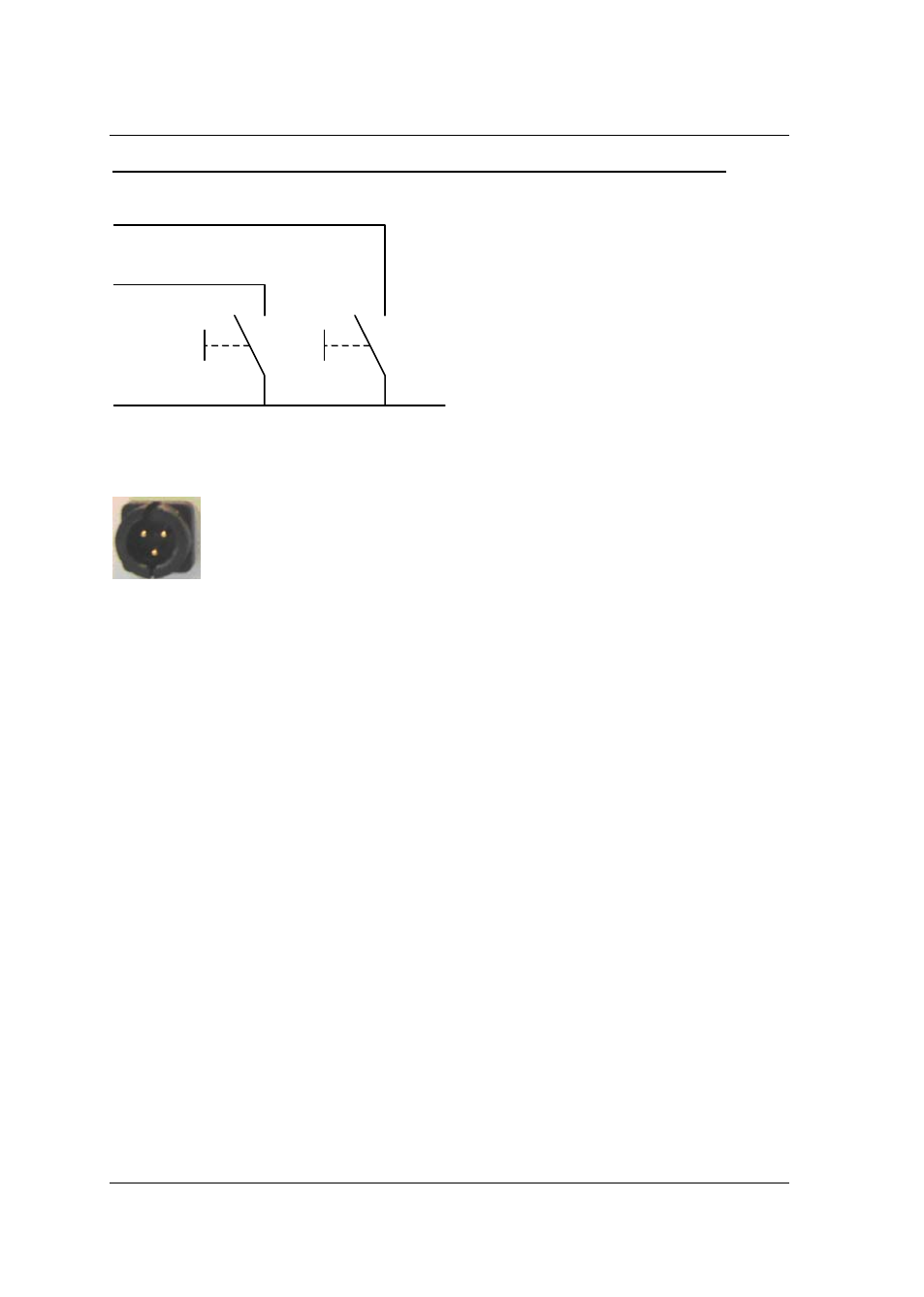

Principle circuit with key switches for Reset and ATX Power On/Off:
I2 SW2_RESET# (Pin 3)
- 0V (Pin 2)
I1 SW1_ATXPWR# (Pin 1)
After having connected the key switches with the 3-pole cable jack, plug these
in the 3-pole flange connector of CATVision-CON on the back of the device.
(3-pole flange connector)
page 66
