 Then connect the other end of the CPU-x cable (MDR 20 = Mini
Delta Ribbon 20pole) with the interface VGA Keyb. Mouse CPU of
CATVision.
 Connection of the transmission cable
Connect the K-C7-x extension cable to the
TRANSMISSION (jack)
interface of the transmitting unit.
 Connection of the local console
Connect the connector of the local keyboard and the local mouse to
the
keyboard interface or rather MOUSE PS/2 at the transmitting unit
CATVision-CPU.
 Connect the local monitor to the MONITOR jack .
3.1.1 Videoconnection at CATVision-MC-CPU
 Connect the 15 pole Sub HD connector of the VGA-M/M-2-cabel to
the additional VGA interface of the computer.
 Then connect the other end of the VGA-M/M-2-cabel
with the
interfaces VGA CPU 2 – 4.

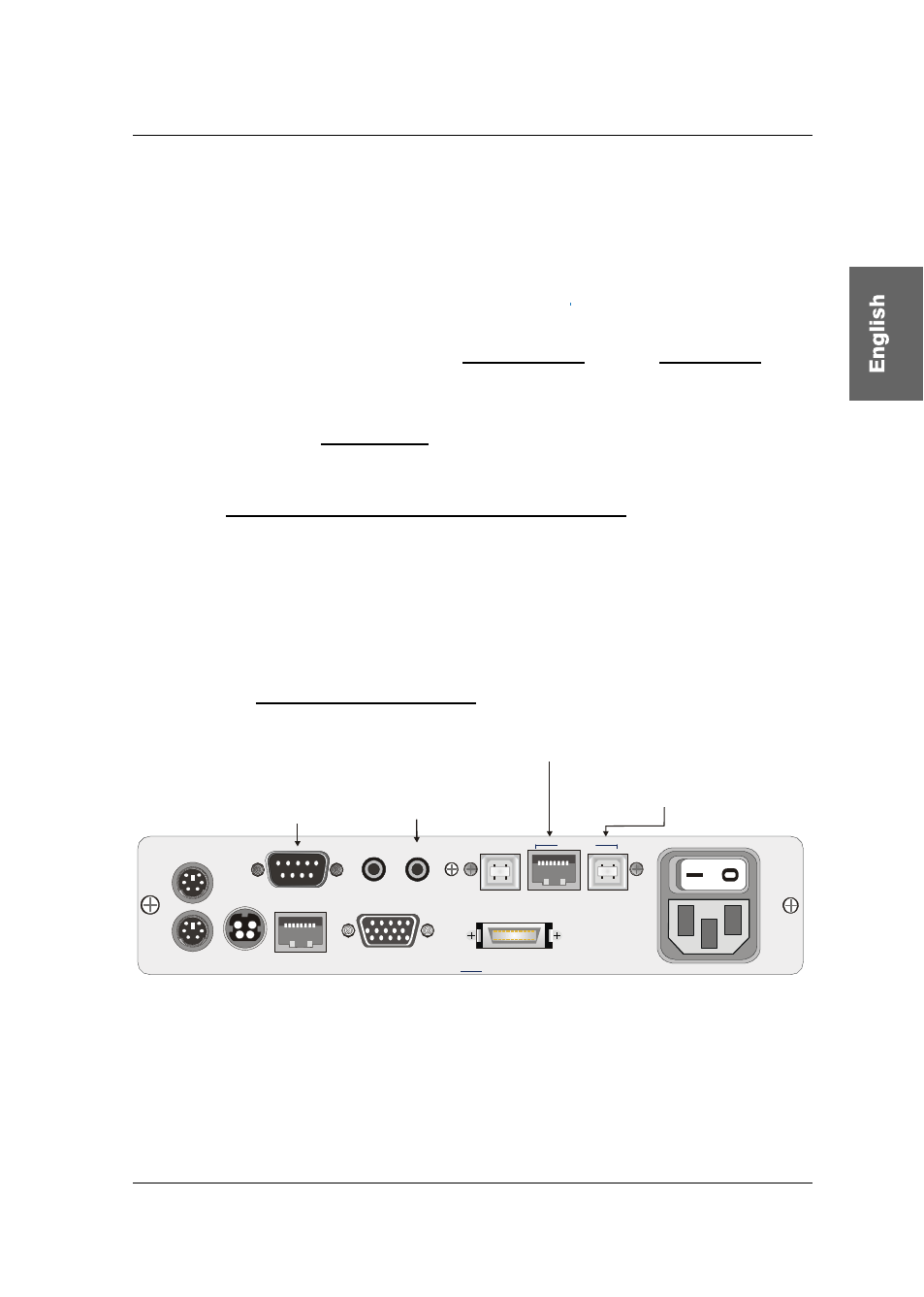

3.1.2 Optional Connections
Keyb PS/2.
Mouse PS/2
Monitor
CPU
Line In Line Out RS 232
VGA Keyb. Mouse CPU
Trans
USB K/M
CPU
USB 1.1
Transmission 12V DC/0,6A
Red. Power
10
0-
24
0V/
60-
50H
z
14
0-
82
m
A
Connection to the USB-Port
of the local PC
Port for the
RS232-M/F-2 to the serial
port of the local PC
Audio connection
via Audio-M/M-2
Connection for the CAT-x cable
K-C7-x for USB 1.1
 Connection of RS232
Connect the RS232-M/F-x connecting cable (x=2, 4, 6 or 9 m) with a
COM interface of the computer and the
RS232 interface (optional) of
the CATVision-CPU (seizure 1:1).
