 Set up the receiving unit.
 Connect the K-C7-x extension cable to the TRANSMISSION interface
of the receiving unit CATVision-CON.
 Connect the monitor to the MONITOR jack.
 Connect the keyboard to the Keyb. interface at CATVision-CON.
 Connect the mouse to the MOUSE PS/2 jack.
 As an option you have the possibility to connect keyboard and mouse
(also SUN-USB-keyboards) via USB. For this connect keyboard and/or
mouse with the USB-interfaces
Keyb. USB Mouse at the backside of
CATVision-CON.
Don´t use the USB-interfaces at the frontside of CATVision-CON for
keyboard- mouse connection. The usage of these USB-interfaces is
restricted to a usage as a transparent USB-transmission to the local
PC.
3.2.1 Videoconnection at CATVision-MC-CON
 Connect the K-C7-x extension cable to the TRANSMISSION interface
TRANSMISSION 1 – 4 of the receiving unit CATVision-MC-CON.
Consider the correct assignment of the videochannels!
 Connect the monitors to the monitor jacks MONITOR 1 - 4.

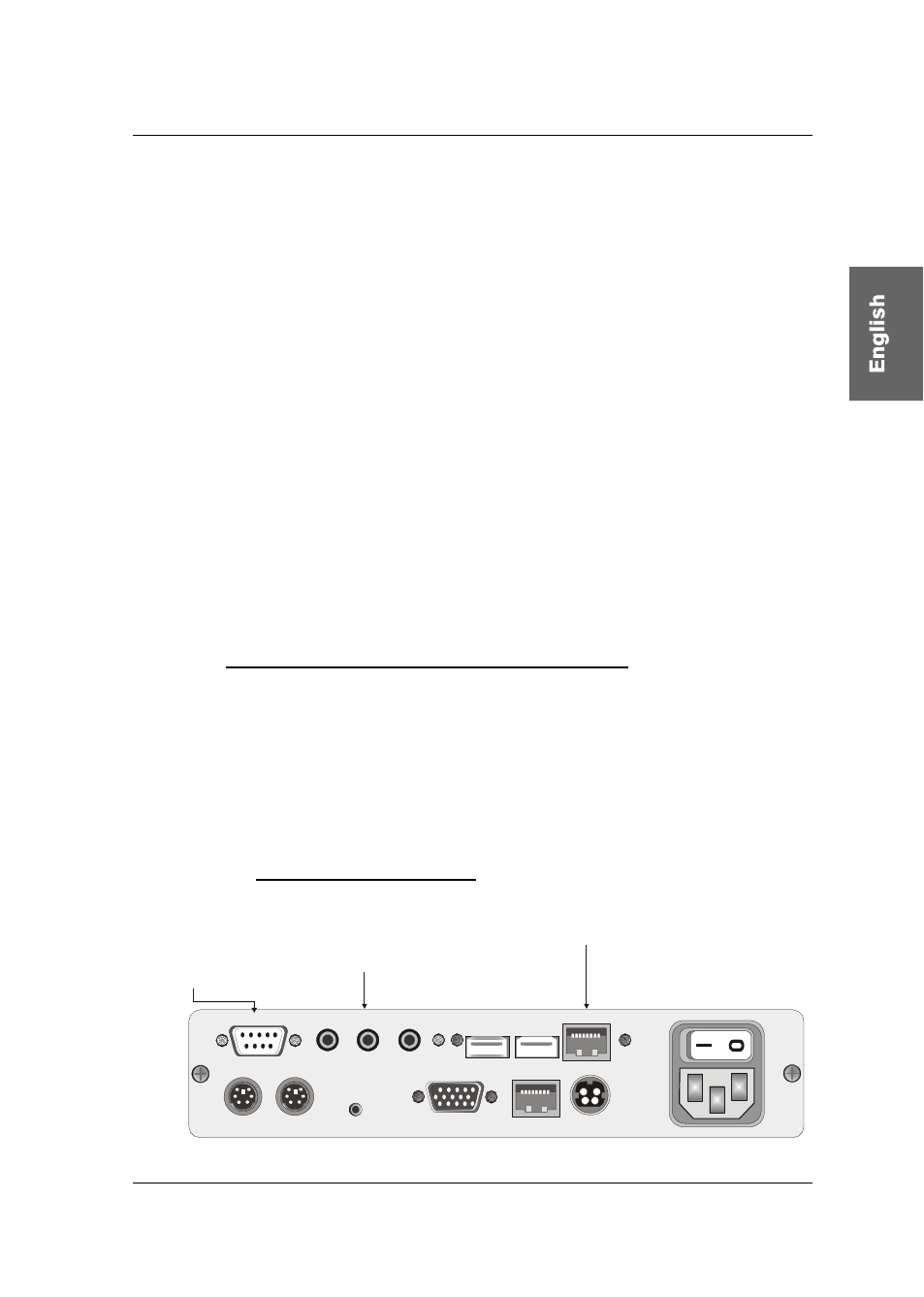

3.2.2 Optional Connections
Line In Micro In RS 232 Speaker
Keyb. Mouse PS/2
12V DC/0,9A
Monitor Transmission Red. Power Service
Keyb. Mouse USB
USB Trans
100-
240V/
60-
50H
z
0,24
-0
,1A
Connection for microphone,
speakers and another
audio device Connection for another
serial device
Connection for the CAT-x cable
K-C7-x for USB 1.1
