Installing the computer module (FIBREVision-CPU)
The computer, whose signals are transmitted to the remote console, is connected to
the computer module. A local console can optionally be connected to the computer
module.
Connecting the computer
DVI CPU: Use the DVI-D-M/M-2 cable to connect the digital video output of the com-
puter to this interface.
USB CPU: Use the USB-AM/BM-2 cable to connect the USB interface of the com-
puter to this interface.
Keyb. CPU: Use the purple plug of a Twin-PS/2 cable to connect the PS/2 keyboard
interface of the computer to this interface.
Mouse CPU: Use the green plug of a Twin-PS/2 cable to connect the PS/2 mouse
interface of the computer to this interface.
Additional interfaces of FIBREVision-AR and -ARU variants:
Line Out: Use the Audio-M/M-2 cable to connect the Line-In interface of the com-
puter to this interface.
Line In: Use the Audio-M/M-2 cable to connect the Line-Out interface of the com-
puter to this interface.
RS232: Use the RS232-M/F-2 cable to connect the nine-pin serial interface of the
computer to this interface.

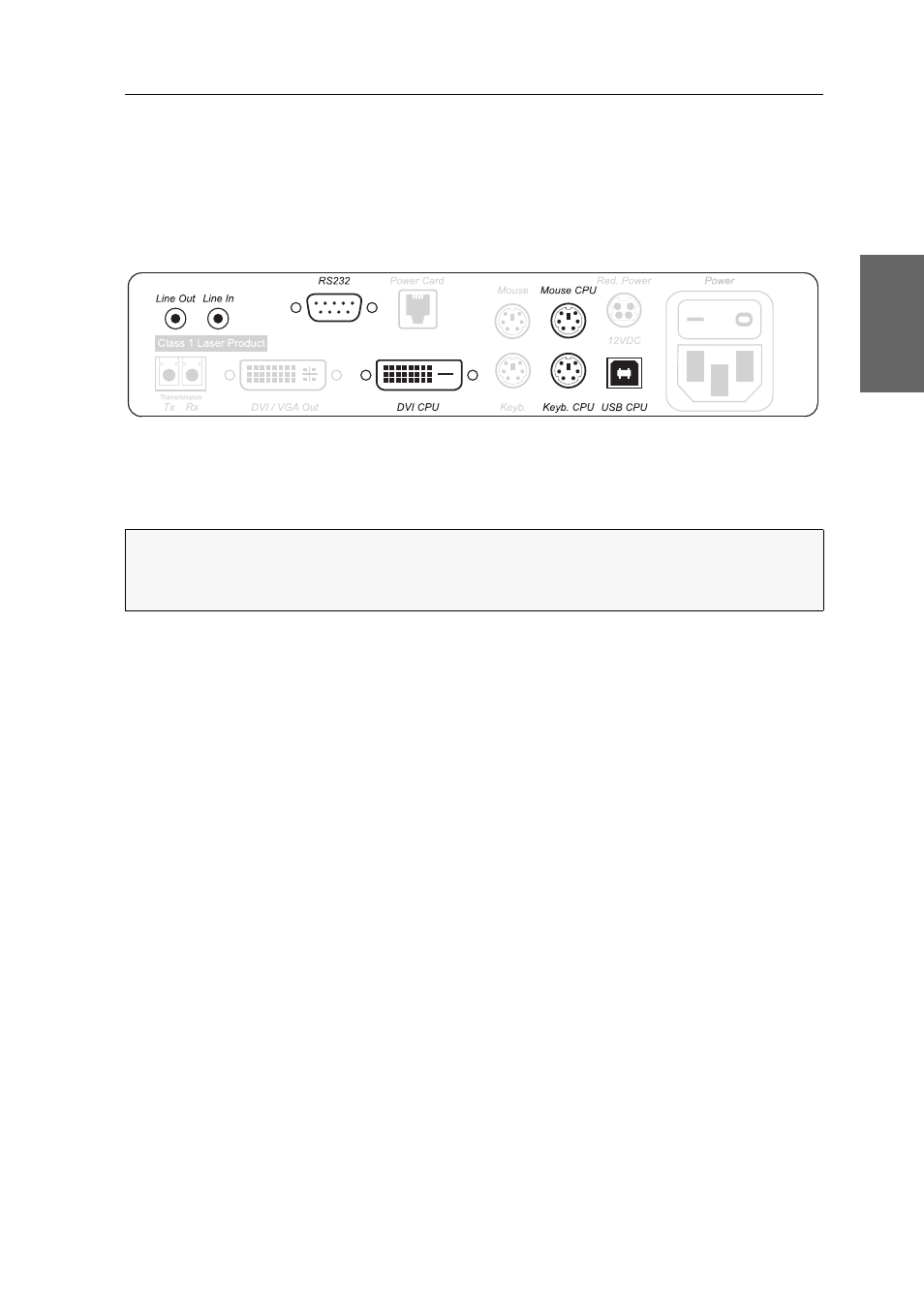

Figure 1: Interfaces to connect the computer to the computer module
NOTE:
You can use either the USB interface USB CPU or the PS/2 interfaces
Mouse CPU and Keyb. CPU to transmit the mouse and keyboard signals of both con-
soles.
