Installation
10 · G&D FIBREVision
Installing the user module (FIBREVision-CON)
Connecting the remote console
DVI/VGA Out: Connect the console monitor to this interface.
If the monitor only provides an analog VGA input, connect an optional adapter to
this interface. Afterwards, connect the monitor’s VGA cable to the adapter.
USB Keyb.: Connect the USB keyboard to this interface.
USB Mouse: Connect the USB mouse to this interface.
Keyb.: Connect the PS/2 keyboard to this interface.
Mouse: Connect the PS/2 mouse to this interface.
Additional USB interfaces of FIBREVision-ARU and -U variants:
USB 1.1 Devices: Any USB device can be connected to these interfaces. Two USB
interfaces are located on the back panel of the device, another two can be found on
the front panel. The data rate of the interfaces is 12 MBit/s (USB 1.1).
The USB devices are provided to the computer module (FIBREVision-CPU) which is
connected to the computer.
Additional interfaces of FIBREVision-AR and ARU variants:
Speaker: Connect the speakers of the console to this interface.
Micro In: If desired, connect the console microphone to this interface.
RS232: Connect the serial device to this interface.
The serial end device is provided to the computer that is connected to the computer
module (FIBREVision-CPU).

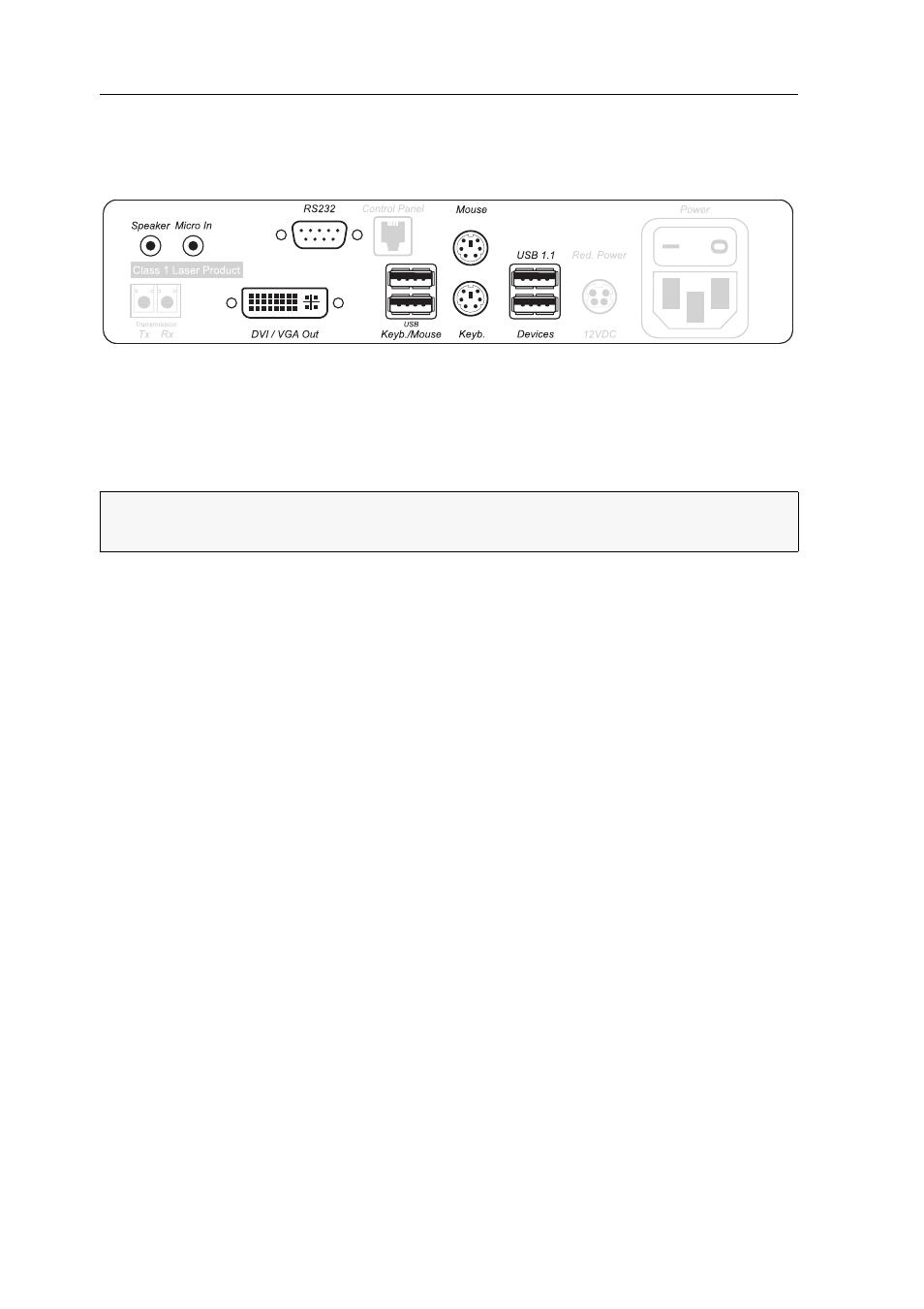

Figure 5: Interfaces to connect the user console to the user module
NOTE: Both mouse and keyboard of the remote console can be connected either as
a PS/2 or as USB device.
