Installation
12 · G&D FIBREVision
Additional interfaces of the multi-channel variants
Transmission – Tx: Insert the LC plug of the fibre optic cable (available as accessories)
into this interface. Connect the other end of the cable to the Transmission – Rx inter-
face of the computer module.
Transmission – Rx: Insert the LC plug of the fibre optic cable (available as accessories)
into this interface. Connect the other end of the cable to the Transmission – Tx inter-
face of the computer module.
DVI/VGA Out: Connect the console monitor to this interface.
If the monitor only provides an analog VGA input, connect an optional adapter to this
interface. Afterwards, connect the monitor’s VGA cable to the adapter

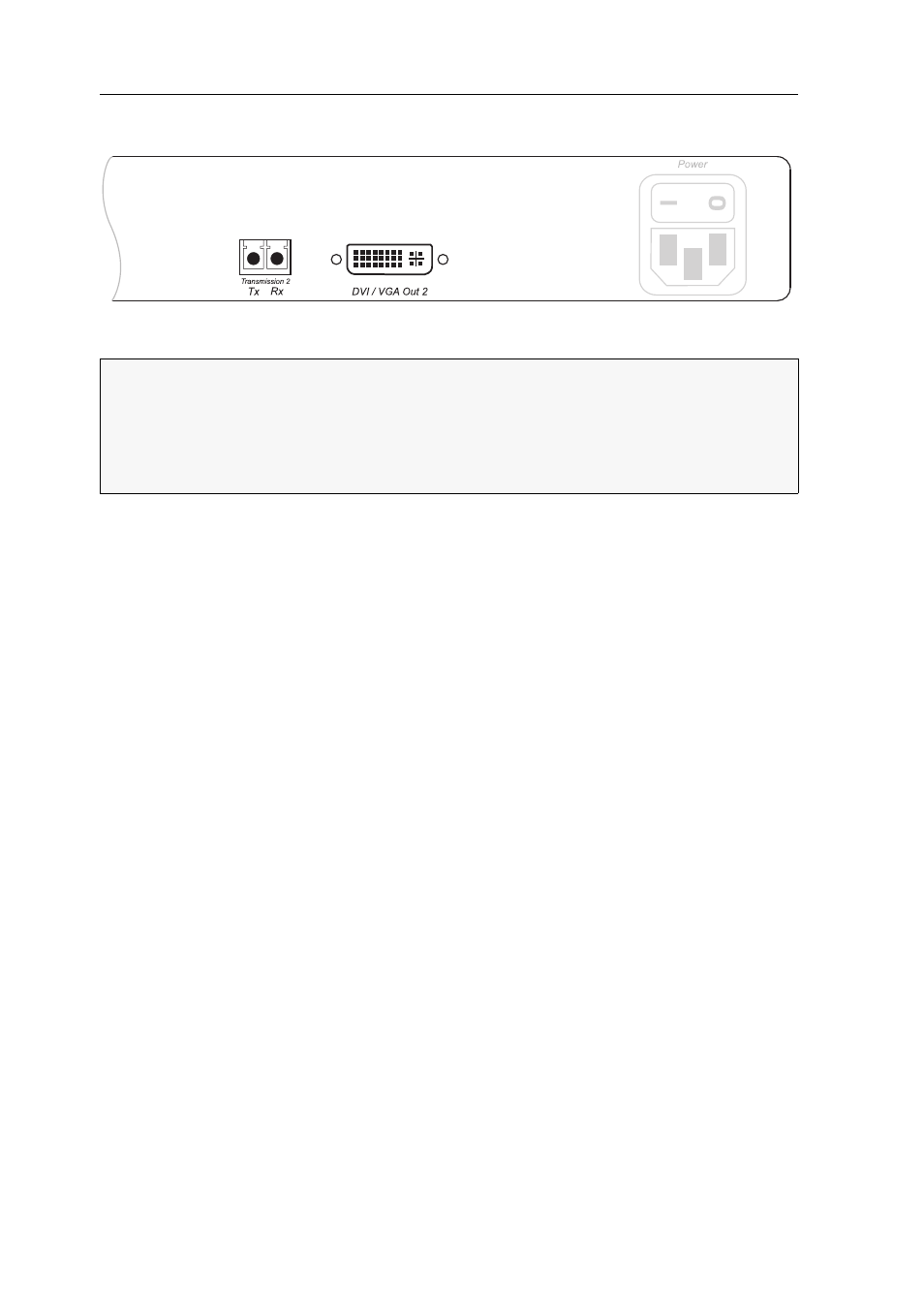

Figure 7: Additional interfaces of the multi-channels variants at the user module
NOTE: For each additional video channel, the multi-channel variants of the user mod-
ule are additionally provided with the interfaces Transmission -Tx, Transmission - Rx
and DVI/VGA Out.
The interfaces of each channel are located next to each other. The interfaces are
provided with the numbers of the channels.
