Connections for data transmission and power supply
Remove the protection cap from both the Transmission interface and the cable plugs.
Transmission – Tx: Insert the LC plug of the fibre optic cable (available as accessories)
into this interface. Connect the other end of the cable to the Transmission – Rx inter-
face of the computer module.
Transmission – Rx: Insert the LC plug of the fibre optic cable (available as accessories)
into this interface. Connect the other end of the cable to the Transmission – Tx inter-
face of the computer module.
Power: Insert the supplied PowerCable-2 Standard IEC cable.
Red. Power: Connect the Power-Set 12/Type 2 power pack to establish a second, redun-
dant power supply for the computer module.

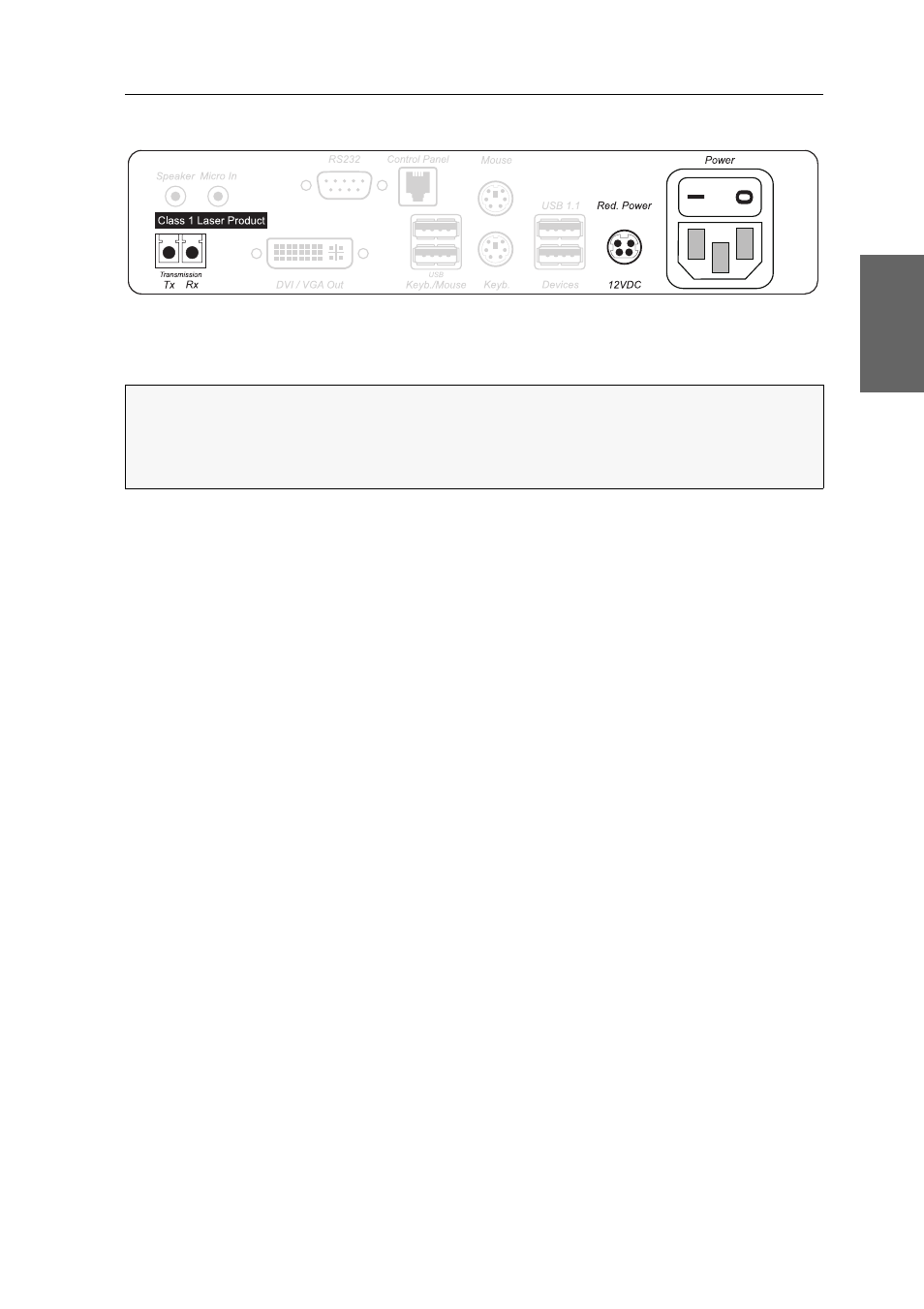

Figure 6: Interfaces
for data transmission and power supply
IMPORTANT:
The device uses components with laser technology which corre-
spond to the laser class 1. Although class 1 laser beams are considered as being
nonhazardous, the direct eye contact with the laser has to be avoided. Do not look
into the beam with optical instruments.
