HEIDENHAIN iTNC 530
379
8.9 Zyklen zum Abz
e
ilen

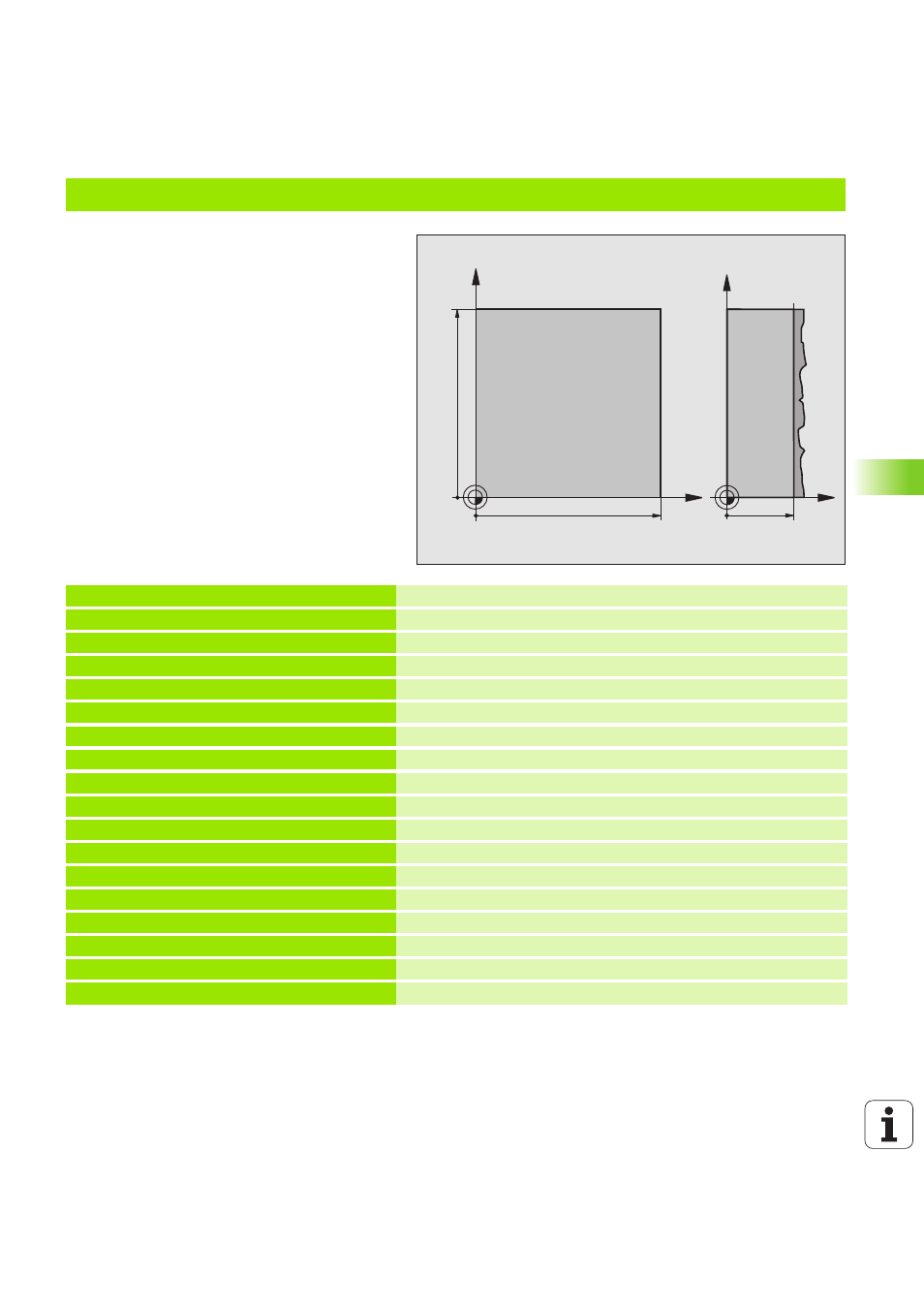

Beispiel: Abzeilen
%C230 G71
N10 G30 G17 X+0 Y+0 Z+0 *
Rohteil-Definition
N20 G31 G90 X+100 Y+100 Z+40 *
N30 G99 T1 L+0 R+5 *
Werkzeug-Definition
N40 T1 G17 S3500 *
Werkzeug-Aufruf
N50 G00 G40 G90 Z+250 *
Werkzeug freifahren
N60 G230 ABZEILEN
Zyklus-Definition Abzeilen
N60 G230 ABZEILEN
Zyklus-Definition Abzeilen
Q225=+0
;STARTPUNKT 1. ACHSE
Q226=+0
;STARTPUNKT 2. ACHSE
Q227=+35
;STARTPUNKT 3. ACHSE
Q218=100
;1. SEITEN-LAENGE
Q219=100
;2. SEITEN-LAENGE
Q240=25
;ANZAHL SCHNITTE
Q206=250
;VORSCHUB TIEFENZ.
Q207=400
;VORSCHUB FRAESEN
Q209=150
;VORSCHUB QUER
Q200=2
;SICHERHEITS-ABST.
X
Y
100
100
Z
Y
35
