September 2014
Anschlussbelegungen
141

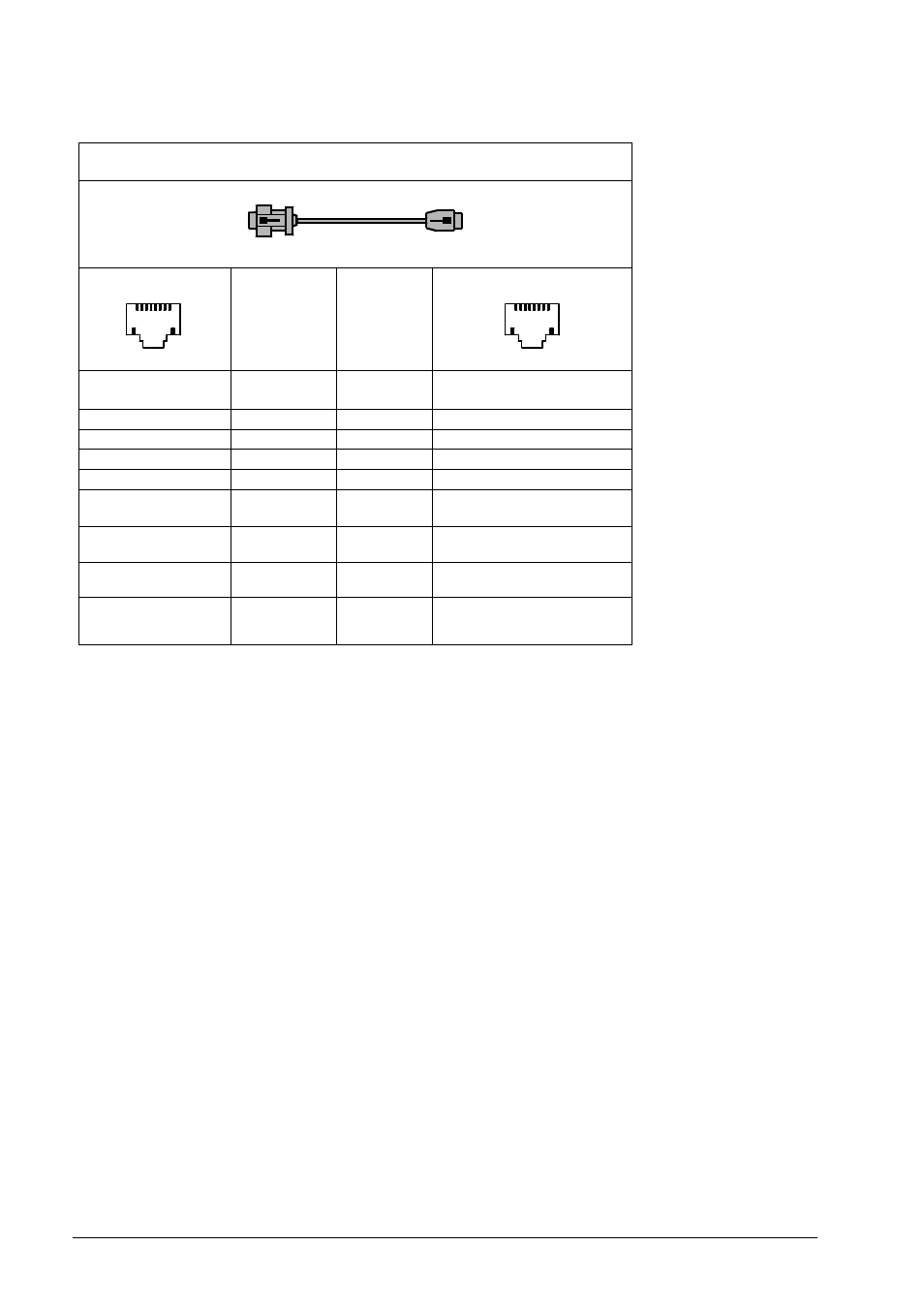

4.3.77 Adapterkabel SIEMENS RJ 45 Stecker IP20/IP67 8+2-pol. (DRIVE-CLiQ)
8 . . . . . . 1
B
A
8 . . . . . . 1
B
A
IP67
Adapterkabel ID 759314-01
Adapter cable ID 759314-01
Signal
Farbe
Color
Stecker 10-pol. Stift
10-pin connector (male)
Stecker 10-pol. Stift
10-pin connector (male)
PIN 1
RX+
rosa / pink
PIN 1
PIN 2
RX-
blau / blue
PIN 2
PIN 3
TX+
grün / green
PIN 3
PIN 6
TX-
gelb / yellow
PIN 6
A +V
U
P
rot / red
A
B 0
V
U
N
schwarz / black
B
Gehäuse
Housing
Außenschirm /
External shield
Schirm /
Shield
Gehäuse
Housing
PIN 4, 5, 7, 8
frei / free
nicht belegt / not used
PIN 4, 5, 7, 8
frei / free
nicht belegt / not used
